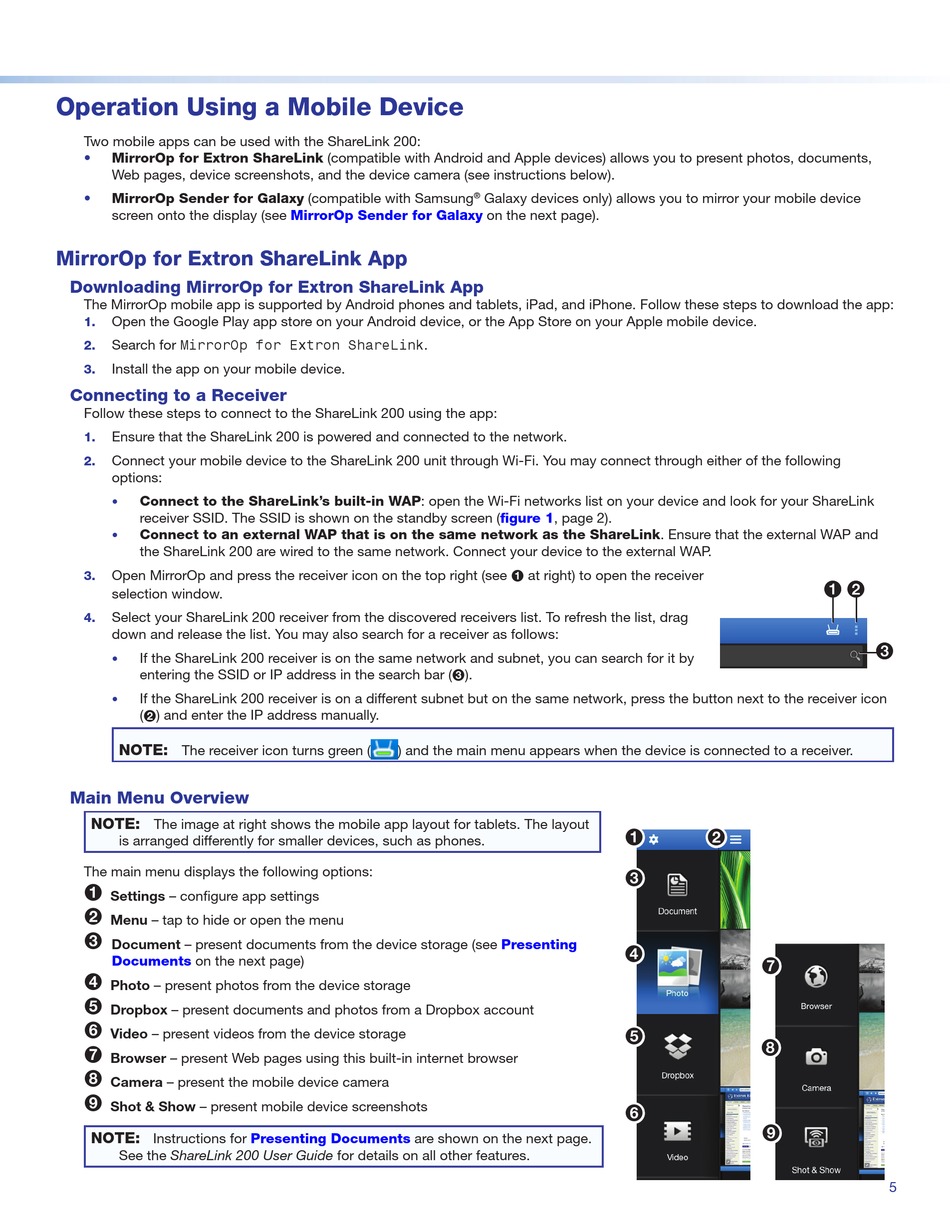

Operation Using a Mobile Device

Two mobile apps can be used with the ShareLink 200:
• MirrorOp for Extron ShareLink (compatible with Android and Apple devices) allows you to present photos, documents,
Web pages, device screenshots, and the device camera (see instructions below).
• MirrorOp Sender for Galaxy (compatible with Samsung
screen onto the display (see
MirrorOp for Extron ShareLink App
Downloading MirrorOp for Extron ShareLink App
The MirrorOp mobile app is supported by Android phones and tablets, iPad, and iPhone. Follow these steps to download the app:
Open the Google Play app store on your Android device, or the App Store on your Apple mobile device.
1.
Search for MirrorOp for Extron ShareLink.
2.
Install the app on your mobile device.
3.

Connecting to a Receiver

Follow these steps to connect to the ShareLink 200 using the app:
Ensure that the ShareLink 200 is powered and connected to the network.
1.
Connect your mobile device to the ShareLink 200 unit through Wi-Fi. You may connect through either of the following
2.
options:
Connect to the ShareLink's built-in WAP: open the Wi-Fi networks list on your device and look for your ShareLink
•
receiver SSID. The SSID is shown on the standby screen
Connect to an external WAP that is on the same network as the ShareLink. Ensure that the external WAP and
•
the ShareLink 200 are wired to the same network. Connect your device to the external WAP.
Open MirrorOp and press the receiver icon on the top right (see 1 at right) to open the receiver
3.
selection window.
Select your ShareLink 200 receiver from the discovered receivers list. To refresh the list, drag
4.
down and release the list. You may also search for a receiver as follows:
If the ShareLink 200 receiver is on the same network and subnet, you can search for it by
•
entering the SSID or IP address in the search bar ( 3 ).
If the ShareLink 200 receiver is on a different subnet but on the same network, press the button next to the receiver icon
•
( 2 ) and enter the IP address manually.
NOTE:
The receiver icon turns green (

Main Menu Overview

NOTE:
The image at right shows the mobile app layout for tablets. The layout
is arranged differently for smaller devices, such as phones.
The main menu displays the following options:
1
Settings – configure app settings
2
Menu – tap to hide or open the menu
3
Document – present documents from the device storage (see
Documents on the next page)
4
Photo – present photos from the device storage
5
Dropbox – present documents and photos from a Dropbox account
6
Video – present videos from the device storage
7
Browser – present Web pages using this built-in internet browser
8
Camera – present the mobile device camera
9
Shot & Show – present mobile device screenshots
NOTE:
Instructions for
See the ShareLink 200 User Guide for details on all other features.
MirrorOp Sender for Galaxy
) and the main menu appears when the device is connected to a receiver.
Presenting Documents are shown on the next page.
Galaxy devices only) allows you to mirror your mobile device
®
on the next page).
(figure 1, page 2).
