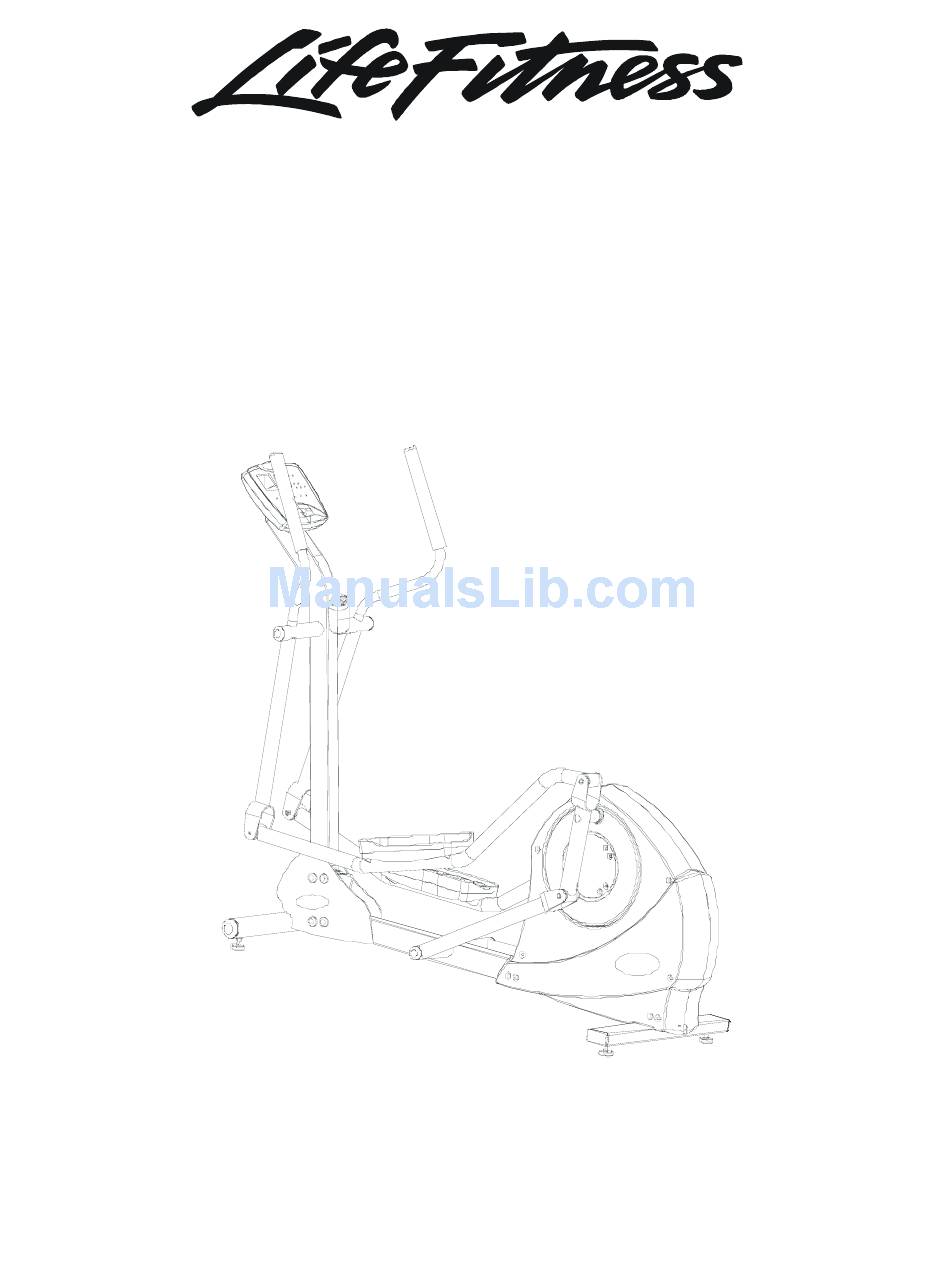

- Page 1 LF Sport Consumer Cross-trainer CTSX30-0000-01 120V Dom. Eng/Eng CTSX30-0101-01 230V Con. Eng/Met CTSX30-0201-01 230V Con. Ger/Met CTSX30-0101-01 240+V Aus. Eng/Met CTSX30-0102-01 240V UK. Eng/Met Customer Support Services PARTS MANUAL rev 23 Jul 2008...
-
Page 2: Table Of Contents
LF Sport Consumer Cross-trainer CTSX30-XXXX-01 Contents Console Assembly ... 3 Movement Arms and Hardware ... 4 Rear Components... 5 Front Components ... 6 Cables ... 7 Block Diagram ... 8... -
Page 3: Console Assembly
LF Sport Consumer Cross-trainer Console Assembly Hardware Bag REX22FN Manual REX22FJ CONSOLE ASSEMBLY REX21FQ ENDCAP REX21MV ENDCAP SCREWS REX0KC6 LABEL REX2234 Overlay Assemblies Eng/Eng REXFEA1 Ger/Met LABEL REXFEA2 REX21SB LABEL REX21RM CTSX30-XXXX-01 WATER BOTTLE REX21WQ BRACKET REX01B2 SCREWS REX0K4R... -
Page 4: Movement Arms And Hardware
LF Sport Consumer Cross-trainer Movement Arms and Hardware STRAIN RELIEF REX21BF BEARING(2) REX0HVQ C-RING REX0JEL SPRG WASHER(2) REX0JBD INNER ARM REX22FU SPRG WASHER(2) BUSHING REX0JBD REX219J SPRG WASHER(2) REX0J9C BOLT(2) REX21B8 ENDCAP REX219H C-RING(4) REX0JFP RT PEDAL REX2199 SPRG WASHER(8) REX0J92 SCREW(8) C-RING(4) -
Page 5: Rear Components
LF Sport Consumer Cross-trainer Rear Components C-RING(1) REX0JED IDLER ASSY REX22FT LOCKING NUT(4) REX0KR5 RETAINIG RING REX21A7 CLAMP BOLT REX21A6 MAGNETIC BRAKE ASS'Y REX21BJ BOLT REX0JUV SPRG WASHER(4) REX0J9D BEARING(2) C-RING REX0HVQ REX0JEL BOLT(2) REX21NS REX21BD SCREW(12) RETAINER(2) REX0K4R REX217M SCREW(12) REX0K4R RT SHROUD... -
Page 6: Front Components
LF Sport Consumer Cross-trainer Front Components GRIP REX219Z WASHER REX22B4 SPRG WASHER(2) REX0J9C ENDCAP REX219H BOLT(2) REX21B8 BOLT REX21BA BOLT REX21NR CAP(8) CAP(8) REX218F REX22MM C-RING REX0JEJ BUSHING REX219V WASHER WASHER REX22B3 REX22B36 SPRG WASHER(2) REX0JBD INSERTS(2) REX21NN RIGHT ARM REX22G0 MAST LOCKING NUT(4) -
Page 7: Cables
LF Sport Consumer Cross-trainer Cables POWER CABLE REX01HU ADAPTOR REX24ZJ SPEED SENSOR REX01J8 CABLE REX01QT CTSX30-XXXX-01 MAIN CABLE REX01RT BRAKE CABLE REX01QH DC MOTOR REX01HL... -
Page 8: Block Diagram
LF Sport Consumer Cross-trainer Block Diagram MAIN UPPER CABLE REX01R LOWER FRAME CABLE REX01QT GRAY BLUE GREEN CONSOLE BLACK WHITE YELLOW MAIN UPPER CABLE REX01R LOWER FRAME CABLE REX01QT (BLACK) MOTOR+ (BROWN) MOTOR+ (RED) -5VDC ORANGE YELLOW BLACK POWER CABLE REX01HU BLACK WHITE...
