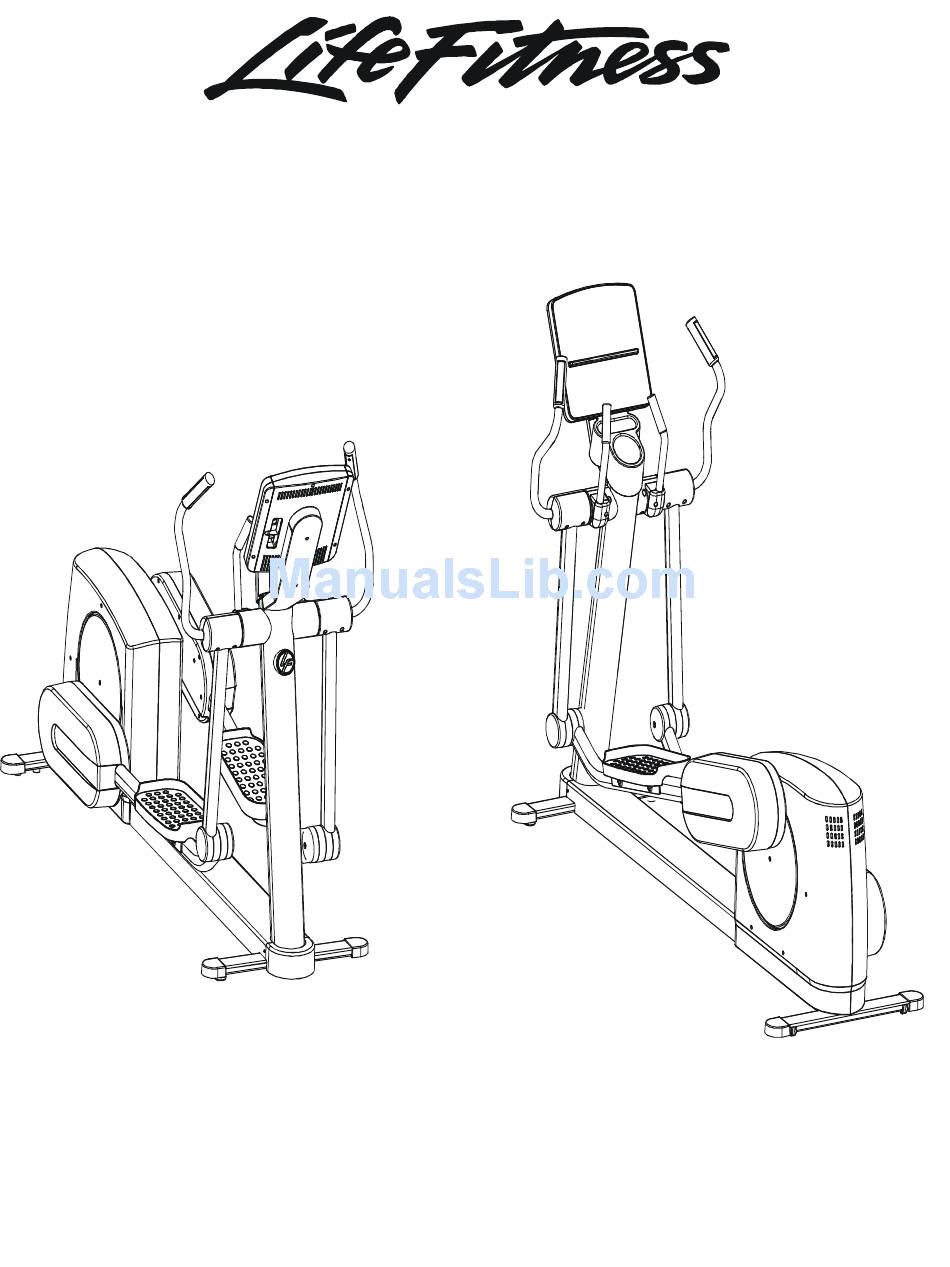

- Page 1 ARCTIC SILVER QUIET DRIVE CROSS TRAINER 95X-0XXX-03 Customer Support Services PARTS MANUAL rev 31 Jul 2008...
- Page 2 ARCTIC SILVER QUIET DRIVE 95Xi REFERENCES OPERATION MANUAL SERVICE MANUAL TOUCH UP PAINT: SPRAY CAN .5 OZ BOTTLE W/APPLICATOR .33 OZ PEN HARDWARE BAG PLUG IN OPTION 120/60 PLUG IN OPTION 240/50 UK PLUG IN OPTION 240v AUS PLUG IN OPTION 230/50 CONT DESCRIPTION PLATE: DRIVEFRAME;...
-
Page 3: Table Of Contents
ARCTIC SILVER QUIET DRIVE 95Xi 95X-0XXX-03 CONTENTS S/N AXB100000 and up Page CONSOLE SUPPORT & DEADSHAFT COVERS ...4 HANDLEBARS AND BULLHORNS ...5 CONSOLE AND RELATED COMPONENTS...6 UPPER FRAME HARDWARE ...8 ROCKER ARMS AND PEDAL LEVERS ...8 CRANK COVER AND LOWER CAPS ...10 LOWER FRAME SHROUDS AND HARDWARE...11 PEDAL LEVER COMPONENTS ...12 PCB, BATTERY, REED SWITCH &... -
Page 4: Console Support & Deadshaft Covers
ARCTIC SILVER QUIET DRIVE 95Xi Console Support & Deadshaft Covers Console Support AK62-00123-0000 Console Support Cap 0K62-01030-0000 Console Support Shroud 0K62-01023-0000 Console Support Grommets 0017-00042-0754 Right Inside Deadshaft Cover 0K62-01010-0000 Left Inside Deadshaft Cover 0K62-01011-0000 Front Inside Deadshaft Covers (2) 0K62-01009-0000 S/N AXB100000 and up Right... -
Page 5: Handlebars And Bullhorns
ARCTIC SILVER QUIET DRIVE 95Xi Handlebars and Bullhorns Right Handlebar AK62-00086-0000 Medallion Bug AK58-00245-0000 Bug Adaptor 0K62-01034-0001 *Right Bullhorn Assembly consists of: AK62-00057-0001 Bullhorn, 0K62-01136-0000 Grip and 0K62-01199-0000 Gasket Left Bullhorn Assembly consists of: AK62-00058-0001 Bullhorn, 0K62-01136-0000 Grip and 0K62-01199-0000 Gasket S/N AXB100000 and up *Right Bullhorn AK62-00053-0001... -
Page 6: Console And Related Components
ARCTIC SILVER QUIET DRIVE 95Xi Console & Related components Console Case with decal AK62-00142-0000 Programmed PCB A084-92219-A032 A084-92221-A023 (JAP) Lower Display Cable AK63-00038-0000 Polar Cable AK39-00063-0000 Overlay/Bezel/Switch (see chart below) CONSOLE AK62-00329-0001 AK62-00329-0003 AK62-00329-0004 AK62-00329-0006 AK62-00329-0007 AK62-00329-0008 AK62-00329-0009 AK62-00329-0010 AK62-00329-0014 Console Case Screws 0017-00101-1242 Polar PCB... -
Page 7: Upper Frame Hardware
ARCTIC SILVER QUIET DRIVE 95Xi Upper Frame Hardware 4 - Console Mounting Screws 0017-00101-1796 6 - Console Support Mounting Screws 0017-00101-1791 Console Support Shroud Mounting Screws 0017-00101-1796 Inside Deadshaft Cover Screws 0017-00101-1796 (2 per side) Bullhorn Screw Kit (includes 4 screws) GK62-00002-0042 Items Not Shown: Accessory Tray... - Page 8 ARCTIC SILVER QUIET DRIVE 95Xi Rocker Arms & Pedal Levers contents: Rocker Arms (2) Hardened Spacers (2) Oilite Washers (2) Retaining Rings (2) Loctite 620 Alcohol pad LF Bug Medallion Assy. AK58-00245-0000 Rocker Arms AK62-00002-0070 Shaft Collar w/Screws 0K61-01259-0000 Right Pedal Lever Assembly AK62-00236-0000 Left Pedal Lever Assembly...
-
Page 9: Crank Cover And Lower Caps
ARCTIC SILVER QUIET DRIVE 95Xi Crank Cover and Lower Caps Front frame Cap 0K62-01004-0000 Mounting Screws (Located on front sides of Ladder Frame Cover) 2- 0017-00101-1795 Stabilizer Caps 4 - 0K62-01003-0000 95X-0XXX-03 S/N AXB100000 and up Crank Cover 0K61-03100-0002 2 - Mounting screws 0017-00101-1837... -
Page 10: Lower Frame Shrouds And Hardware
ARCTIC SILVER QUIET DRIVE 95Xi Lower Frame Shrouds & Hardware Rocker Cover Kit (includes clip & screw) GK62-00002-0066 Mounting screw 0017-00101-1796 Right Inside Rocker Cover 0K62-01038-0000 Right Inside Lever Joint Cover 0K62-01040-0000 Outside Pedal Joint Cover 0K62-01035-0000 Mounting screw 0017-00101-1836 Leg Levelers AK62-00124-0000 Rocker Cover Kit... -
Page 11: Pedal Lever Assembly Components
ARCTIC SILVER QUIET DRIVE 95Xi Pedal Lever Assembly Components Control Link Kit GK62-00002-0071 (contains 2 control links, part nos. AK62-00384-0000) Left Pedal 0K62-01005-0000 Right Pedal 0K62-01006-0000 Pedal Mounting Hardware 4 - Screw - 0017-00101-1805 4 - Washer-0017-00104-0469 Pedal/Rocker Shaft & Bearings Order Kit GK62-00002-0001 E-Ring 0017-00100-0107... -
Page 12: Pcb, Battery, Reed Switch & Bracket
ARCTIC SILVER QUIET DRIVE 95Xi PCB, Battery, Reed Switch & Bracket Power Control Board B084-92218-D002 PCB Mounting screws 0017-00101-1838 Battery Mounting screws 0017-00101-1797 PCB, Reed Switch Battery Bracket 0K62-01233-0000 6V Battery 0017-00003-0685 95X-0XXX-03 S/N AXB100000 and up Grommet (4) 0017-00042-0821 Reed Switch 118E-00001-0140 Reed Switch... -
Page 13: Bearing-Insert Assembly
ARCTIC SILVER QUIET DRIVE 95Xi Bearing-Insert Assembly – AK62-00299-0000 Service Kit- GK62-00002-0044 Includes: 1- crankshaft 2- bearings 2- sets of bearing flanges 4- nuts and washers Service Kit- GK62-00002-0045 Includes: 1 - intermediate shaft 2 - bearings 2- sets of bearing flanges 4- nuts and washers S/N AXB100000 and up Bearing Flanges (2) -
Page 14: Crank Arm Pulley Assembly
ARCTIC SILVER QUIET DRIVE 95Xi Crank Arm Pulley Assembly Retaining Ring 0017-00100-0107 Crank arm mounting bolt 0017-00101-1849 nut - 0017-00103-0334 Magnet Mounting screw 0017-00101-1835 washer 0017-00104-0144 Crank arm weld Assembly AK62-00205-0000 Magnet-Standoff Assembly AK62-00186-0000 95X-0XXX-03 S/N AXB100000 and up Poly-V Crank Pulley 0K61-02409-0000 Crankshaft Plate 0K61-02302-0001... -
Page 15: Drive Module
ARCTIC SILVER QUIET DRIVE 95Xi Drive Module Crank Arm-Pulley Assembly See Page 14 for breakdown Crankshaft 0K62-01222-0000 J10 Flexonic Belt 0K62-01135-0000 Intermediate Shaft 0K62-01223-0000 Resistor Assembly Includes Power Control Cable AK62-00260-0000 S/N AXB100000 and up Alternator-Flywheel Assembly AK61-00250-0001 Mando Alternator Brushes 0017-00009-0895 Right Crank Arm Weld Assembly... -
Page 16: Drive Module Hardware
ARCTIC SILVER QUIET DRIVE 95Xi Drive Module Hardware Crankshaft 0K62-01222-0000 Square Machine Key (2) 0K53-01122-0000 Alernator-flywheel mounting bolt and nut bolt-0017-00101-1867 nut-0017-00103-0332 S/N AXB100000 and up Alternator-Flywheel Assembly Mounting bolt 0017-00101-0986 Crank Arm Mounting bolt 0017-00101-1849 0017-00103-0334 Machine Key 0K53-01183-0000 Bearing-Insert mounting screw and nut... -
Page 17: Cables
ARCTIC SILVER QUIET DRIVE 95Xi Cables Power Control Cable AK62-00092-0000 ORANGE POWER RES. 2 x .75 OHM RED/BLK 240W RED/BLK RED/BLK AC TAP GREEN Valt GREEN GREEN FIELD FIELD BLK/WHT YELLOW User Arm HR Cables AK61-00051-0001 4POS. MINI FIT JR. WHITE RT SIGNAL BLACK...
