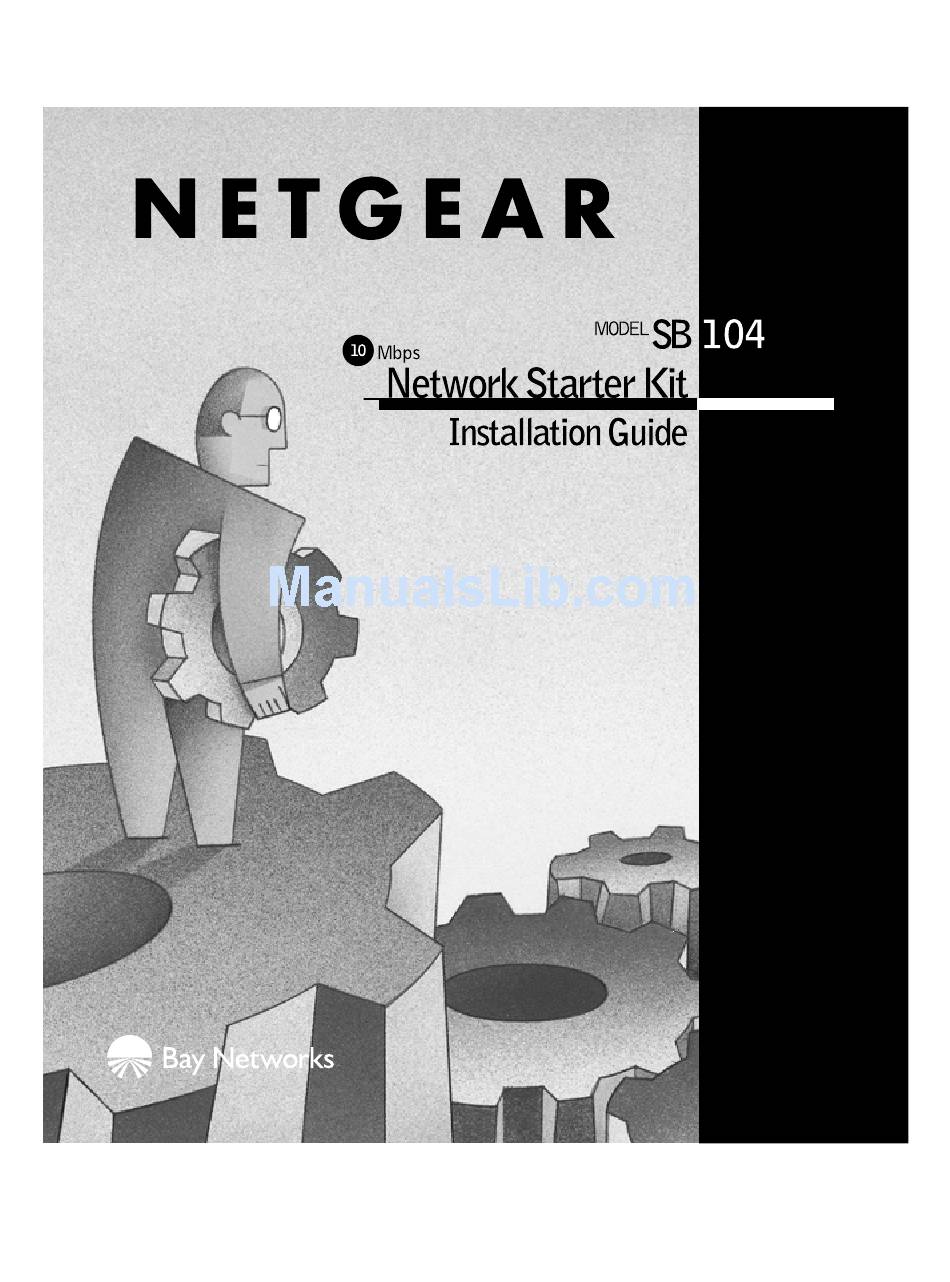

NETGEAR Sb 104 Installation Manual

Network starter kit 10 mbps
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for NETGEAR Sb 104

Summary of Contents for NETGEAR Sb 104

  • Page 2: Start Here

    Start Here This kit includes everything you need to network two Pentium PCs running ® Windows 95 or Windows 98 and to share files, printers, CDs, and applications. The kit is expandable to add users and can be upgraded for 100 megabits per second (Mbps) operation.

  • Page 3: Verify Package Contents

    Support Information Card Power adapter (for hub) 7956FB Verify PC Requirements ™ The instructions given in this guide are for using the NETGEAR Model ® FA301TX Network Card in a PC that has a Microsoft Windows 95 or Windows 98 operating system.

  • Page 4: Install The Hub

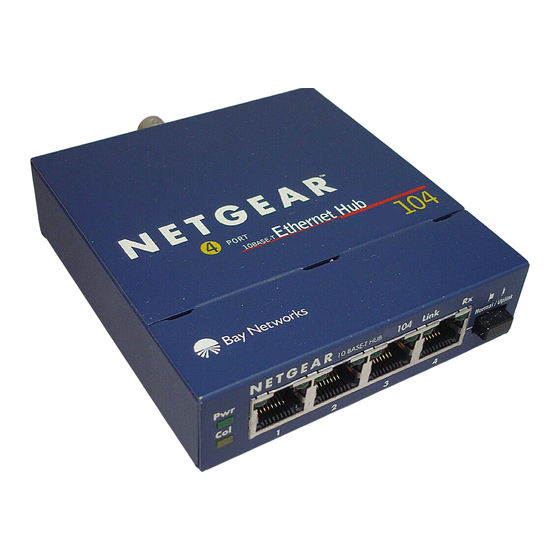

    Install the Hub 1. Set the hub on a flat surface or mount it on a wall and choose a location that: • Is close to an electrical outlet. • Exposes the front and rear panels to allow connection of the network cables and easy monitoring of the LEDs.
  • Page 5 Install a Network Card in Each Note: Touch a grounded metal object to free yourself of static electricity before you handle the network card. 1. Turn the power off and unplug the power cord from your computer. 2. Remove the PC cover. 3.

  • Page 6: Connect The Network Cables

    Connect the Network Cables Using the unshielded twisted pair (UTP) cables that are supplied, connect any port on the hub to the port on a network card in each PC. Note: Set the Normal/Uplink push button on the Model EN104 to Normal when connecting port 4 on the hub to either a PC or the network card.

  • Page 7: Install The Windows Network Driver

    Install the Windows Network Driver This guide provides you with instructions for installing a Windows 95 or Windows 98 network driver. All versions of Windows might not respond with the same screens. Therefore, windows that are different from those shown in these instructions might open but prompt you for the same information, and windows might open in a different order than the order of the steps in these instructions.
  • Page 8 Click on “Finish.” Click on “OK.” Enter a computer name, a workgroup name, and a description of your computer in the appropriate entry field. Click on “OK.” Model SB104 10 Mbps Network Starter Kit Installation Guide...
  • Page 9 Insert the disk labeled “NETGEAR FA310TX Fast Ethernet PCI Adapter Drivers disk.” Click on “OK.” Type A:\ in the “Copy files from” entry field, and click on “OK.” The system copies the files from the driver diskette. Insert your “Windows 95 CD-ROM” disk. Click on “OK.”...

  • Page 10: Verify Installation

    Remove the Drivers and Diagnostics Disk from the floppy drive, remove the Windows CD from the CD drive (if you have inserted it), and then click on “Yes.” Restart your system to enable your PC when you are finished setting up your new hardware.
  • Page 11 If there is a problem with the installation of the driver, an exclamation point appears next to “NETGEAR FA310TX Fast Ethernet PCI Adapter.” If there is an exclamation point, double-click on “NETGEAR FA310TX Fast Ethernet PCI Adapter.” The “Properties” window opens, and a message regarding the status of the device is displayed in the window.

  • Page 12: Technical Specifications

    Technical Specifications Model FA310TX Model EN104 Network Card Ethernet Hub Standards NetWare tested and approved ® Compatibility Microsoft Windows 95, Windows 98, Windows NT compatible IEEE 802.3u 100BASE-TX Fast IEEE 802.3i 10BASE-T Ethernet, Ethernet IEEE 802.3i 10BASE-T Ethernet, Autosensing PCI Plug-and-Play 2.1 compatible Network interface RJ-45 connector for 10BASE-T...

  • Page 13: Replacement Power Adapter

    In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.
  • Page 14 This device complies with Part 15 of the FCC Rules. Operation is Declaration of Conformity subject to the following two conditions: (1) This device may not cause NETGEAR Model FA310TX Network Card harmful interference, (2) This device must accept any interference received, including interference that may cause undesired operation.
  • Page 15 NETGEAR, Inc. A Bay Networks Company 4401 Great America Parkway Santa Clara, CA 95054 USA Phone: 888-NETGEAR http://www.NETGEARinc.com *M1-SB104NA-5*...
