Ashly TM-360 Operating Manual
Public address amplifier
Hide thumbs
Also See for TM-360:
- Operating manual (16 pages) ,
- Quick manual (1 page) ,
- Quick manual (1 page)
Related Manuals for Ashly TM-360
Summary of Contents for Ashly TM-360
- Page 1 TM-360 Public Address Amplifier Operating Manual ASHLY AUDIO INC. 847 Holt Road Webster, NY 14580-9103 Phone: (585) 872-0010 Toll-Free: (800) 828-6308 Fax: (585) 872-0739 www.ashly.com...
-
Page 2: Safety Instructions
Operating Manual - TM-360 Public Address Amplifier Important Safety Instructions Consignes de sécurité à lire attentivement The lightning flash with arrowhead symbol, within an equilateral triangle, Le symbole de la flèche dans un triangle équilateral symbolisant la foudre is intended to alert the user to the presence of uninsulated "dangerous est prévu pour sensibiliser l’utilisateur à... -
Page 3: Table Of Contents

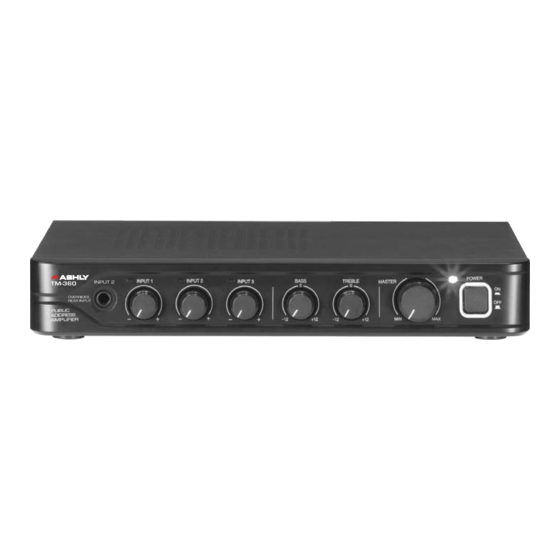

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 ‰ Overview The Ashly TM-360 is a table-top mixer and 60W mono amplifier suitable for applications that require background music with priority paging from a single microphone. Features include: ●... -
Page 4: Front Panel Features
These green LEDs flash when signal is present and the input level control is turned up. They only indicate signal present, not clipping. Also, if the TM-360 is in sleep mode from audio inactivity, at least one input signal LED must show signal activity for the amplifier to automatically wake up. -
Page 5: Rear Panel Features
The PRE OUT connection is used for driving additional external devices with the same signal that drives the main TM-360 power amplifier. The PRE OUT 600 Ohm output signal is taken before the master volume control. 4) Zone 2 Level Control... - Page 6 Switches 4-5: VOX Trigger - The TM-360 has the ability to trigger a mute on channel 2 or 3 from the presence of an audio signal on channel 1 or 2. This is called voice operated switching, or VOX. Input 2 has priority over input 3, and input 1 has priority over input 2.
- Page 7 Operating Manual - TM-360 Public Address Amplifier 8) Input 2 Connectors 3.5mm Euroblock connectors and summed stereo RCA jacks are used for input 2. If wiring an unbal- anced input signal into a balanced Euroblock input, be sure to ground the (-) input pin.
-
Page 8: Typical Application
Operating Manual - TM-360 Public Address Amplifier ‰ Typical Application Restaurant system... -
Page 9: Speaker Wiring
Operating Manual - TM-360 Public Address Amplifier ‰ Speaker Wiring... -
Page 10: Dimensions
Operating Manual - TM-360 Public Address Amplifier ‰ Dimensions... -
Page 11: Schematic Block Diagram
Operating Manual - TM-360 Public Address Amplifier ‰ Schematic Block Diagram... -
Page 12: Specifications
Operating Manual - TM-360 Public Address Amplifier ‰ Specifications... -
Page 13: Limited Warranty
ASHLY AUDIO, INC. shall be obligated to only correct defects in the product itself. ASHLY AUDIO, INC. is not liable for any damage or injury, which may result from, or be incidental to, or a con- sequence of, such defects. - Page 14 Operating Manual - TM-360 Public Address Amplifier (This page intentionally left blank)
- Page 15 Operating Manual - TM-360 Public Address Amplifier (This page intentionally left blank)
- Page 16 Toll Free (800) 828-6308 www .ashly .com 2015 by Ashly Audio Corporation. All rights reserved worldwide. Ashly Audio is a division of Jam Industries, Ltd. All features, specifications, and graphical representations are subject to change or improvement without notice. TM360 R0415...
