Ashly TM-360 Operating Manual
Public address amplifier
Hide thumbs
Also See for TM-360:
- Operating manual (16 pages) ,
- Quick manual (1 page) ,
- Quick manual (1 page)
Related Manuals for Ashly TM-360
Summary of Contents for Ashly TM-360

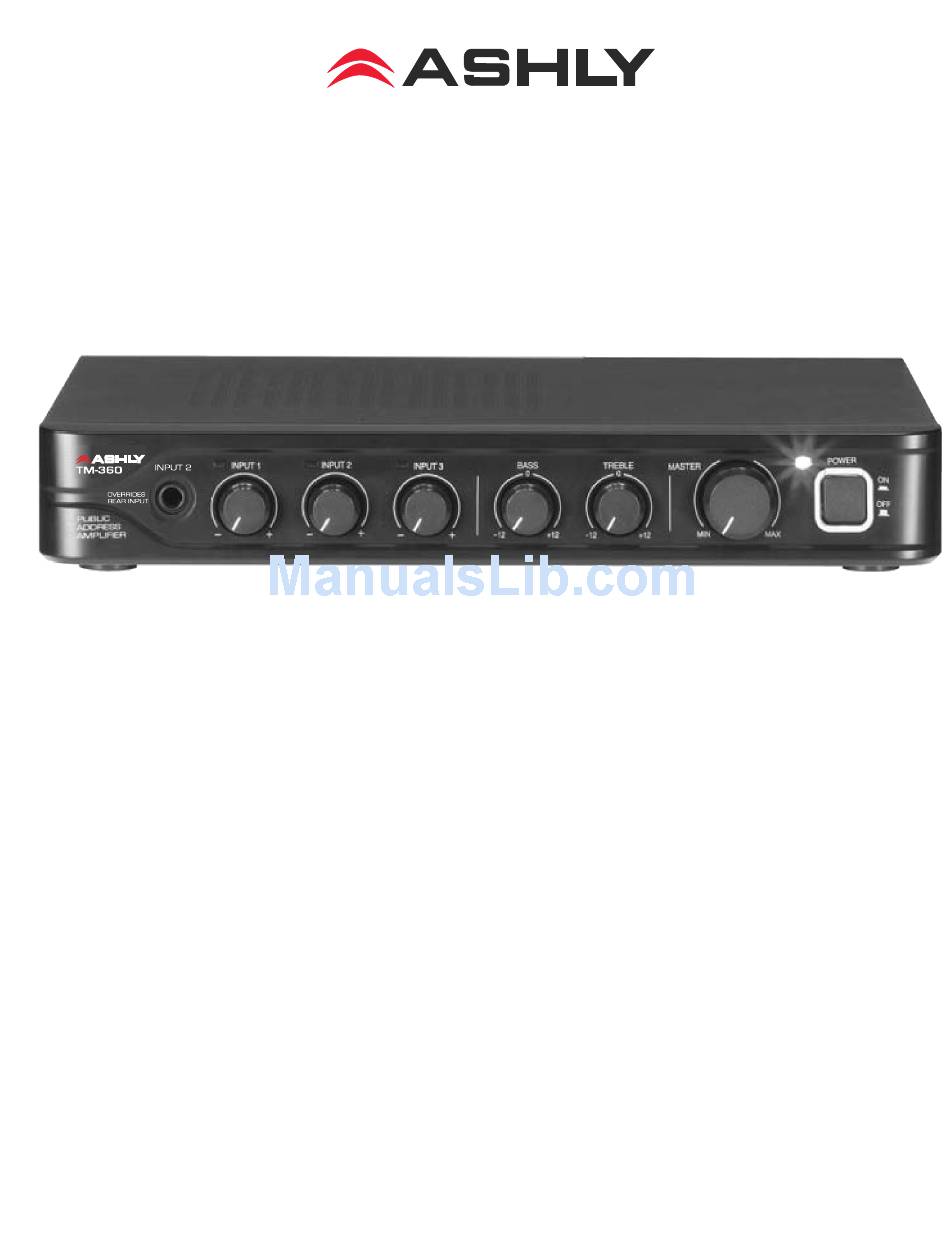

- Page 1 TM-360 Public Address Amplifier Operating Manual ASHLY AUDIO INC. 847 Holt Road Webster, NY 14580-9103 Phone: (585) 872-0010 Toll-Free: (800) 828-6308 Fax: (585) 872-0739 www.ashly.com...
-
Page 2: Safety Instructions
Operating Manual - TM-360 Public Address Amplifier Important Safety Instructions Consignes de sécurité à lire atten- The lightning flash with arrowhead symbol, within an equilateral triangle, Le symbole de la flèche dans un triangle équilateral symbolisant la foudre is intended to alert the user to the presence of uninsulated "dangerous est prévu pour sensibiliser l’utilisateur à... -
Page 3: Table Of Contents
1 and 2 priority (mute trigger) status, inputs 2 and 3 mute link status, low cut filter, and phantom power status for input 1. The TM-360 has a power saving standby mode which can be trig- gered by audio inactivity or by contact closure. Please read this entire manual to fully understand the... -
Page 4: Front Panel Features

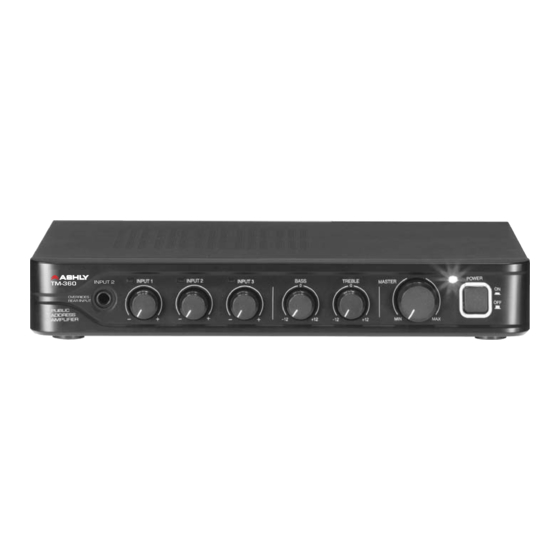

Operating Manual - TM-360 Public Address Amplifier ‰ Front Panel Features 1) Input 2 Jack This is a 3.5mm Tip Ring Sleeve (TRS) jack on the front panel that drives input 2. This jack is very useful for connecting MP3 players, and overrides all input 2 connections on the back panel. -
Page 5: Rear Panel Features
DIP switches. The PRE OUT connection is used for driving additional external devices with the same signal that drives the main TM-360 power amplifier. The PRE OUT 600W output signal is taken before the master volume control. 4) Zone 2 Level Control... - Page 6 Switches 4-5: VOX Trigger - The TM-360 has the ability to trigger a mute on channel 2 or 3 from the presence of an audio signal on channel 1 or 2. This is called Voice Operated Switching, or VOX. Input 2 has priority over input 3, and input 1 has priority over input 2.
- Page 7 2 and 3 returns. 12b) Master System Standby The TM-360 has a power saving standby mode which can be triggered by 25 minutes of audio inactivity, or by contact closure of the Master System Standby connector pins G & 2. When in standby mode, the front panel power LED will turn red, changing back to blue for normal operating mode.
-
Page 8: Typical Application
Operating Manual - TM-360 Public Address Amplifier ‰ Typical Application Restaurant system... -
Page 9: Speaker Wiring
Operating Manual - TM-360 Public Address Amplifier ‰ Speaker Wiring... -
Page 10: Dimensions
Operating Manual - TM-360 Public Address Amplifier ‰ Dimensions... -
Page 11: Schematic Block Diagram
Operating Manual - TM-360 Public Address Amplifier ‰ Schematic Block Diagram... -
Page 12: Specifications
Operating Manual - TM-360 Public Address Amplifier ‰ Specifications... -
Page 13: Limited Warranty
ASHLY AUDIO, INC. shall be obligated to only correct defects in the product itself. ASHLY AUDIO, INC. is not liable for any damage or injury, which may result from, or be incidental to, or a consequence of, such defects. - Page 14 Operating Manual - TM-360 Public Address Amplifier (This page intentionally left blank)
- Page 15 Operating Manual - TM-360 Public Address Amplifier (This page intentionally left blank)
- Page 16 Operating Manual - TM-360 Public Address Amplifier Ashly Audio Inc 847 Holt Rd Webster NY 14580 585-872-0010 toll free 800-828-6308 fax 585-872-0739 www.ashly.com 2012 by Ashly Audio Corporation. All rights reserved worldwide. R01-12...
