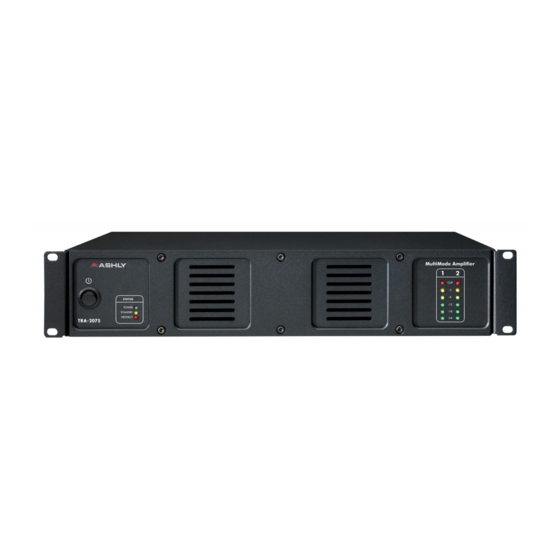

Ashly TRA2075 Specifications

Hand-built in
5-Year Warranty 70V Rated
Webster, NY
TRA SERIES
The TRA Series expands on the SRA's mantra of "the
right amp for the job." These 2 rack space amplifiers
utilize our advanced, efficient amplifiers perfect for
low impedance and transformer isolated 25V, 70V or
100V installations with modest power requirements.
Choose from 4 models available in 2 and 4-channel
configurations, with power ratings of 75W and 150W
per channel at 4 Ohms, 70V and 100V. All TRA audio
controls are on the rear panel. A 6-step LED meter for
each channel lets you monitor all levels. TRA amplifiers
can drive 4 or 8 Ohm loads and 25V or 70V and 100V
constant voltage lines simultaneously. Output trans-
formers are internally mounted.
The 150W models are also capable of driving 25V
constant voltage lines using the direct coupled
4 Ohm output. TRA Series amplifiers incorporate
a switch-mode power supply and Class-D amplifier
circuitry, providing an extremely power-efficient
solution.
All TRA Series amplifiers are convection-cooled,
so there's little maintenance after the installation,
and no annoying fan noise. Of course you get the
reliability, superior sonic quality and rugged
construction you've come to expect from Ashly.
TRA Features:
• Convection cooling
• Extremely low noise
• Internally mounted constant voltage transformers
• Extensive protection circuitry
• 6-Step signal level and clip LEDs
• Level attenuators for each channel
• Euroblock inputs/outputs
• Selectable input sensitivity (voltage gain)
• Remote stand-by control
• Adjustable turn-on delay up to eight seconds
• Safety/Compliance: TUV , CE, FCC, RoHS
c us
Ashly Audio, Inc. | 847 Holt Road
Webster, New York 14580-9103 USA
+1-800-828-6308 US toll free
+1-585-872-0010 tel | +1-585-872-0739 fax
info@ashly.com | sales@ashly.com
www.ashly.com
©2014 All features, specifications and graphical
representations are subject to change without notice.
Ashly Audio is a division of Jam Industries, Ltd.
DS-1 1213
High-Z/Low-Z
100V Rated
Amplifier
Specifications
Frequency Response
(8 Ohms)
Distortion (SMPTE, typical)
Distortion (THD-N, typical)
Damping Factor
(8 Ohm load, < 1 kHz)
Input Impedance
Input Sensitivity
Voltage Gain
Maximum Input Level
HPF
Cooling
Output Circuitry
Amplifier/Load Protection
Environmental
Front Panel
Controls
Indicators (LED color)
Rear Panel
Controls
Connectors (each channel)
Cordset
M
ultiMode
Note: 0dBu = 0.775 VRMS
20Hz–20kHz, ± 1.0 dB, -3dBu @ 80Hz
Due to internal HPF
< 0.5%–8 Ohm load, 10dB below
rated power
< 0.5%–8 Ohm load, 10dB below
rated power, 20Hz–20kHz
> 200 into 8 Ohms
20k Ohms, balanced
1dBu (75W), 4dBu (150W)
26dB, 36dB Selectable
+21dBu
80Hz 2 Order, Non-defeatable
nd
Convection
Class D
Output Overcurent, DC Output, Main
Supply Rail Overvoltage, Chassis Tem-
perature, Inrush Limiting, Mains Fuse
40-120° F, (4-49° C) noncondensing
AC Power Switch
Power (Blue), Standby (Yellow),
Protect (Red), Clip (Red) Signal Level
-24dB, -18dB, -12dB, -6dB (Green),
-3dB (Yellow), Clip (Red)
Input Attenuators, Gain / Sensitivity:
+26dB, +36dB, Remote Stand-by,
Delay
Input: 3-Pin Euroblock
Output: Euroblock
3-Prong IEC
P A
ower MPlifiers
TRA Models 2075
Channels 2
Max Output Power: Per Channel, 80Hz–20kHz, 1% THD, All Channels Driven
4 Ohms 75W
8 Ohms 40W
Constant Voltage Options: 80Hz–20kHz, 1% THD, All Channels Driven
25V (per channel) 75W
70V (per channel) 75W
100V (per channel) 75W
Line Current Draw: All Channels Driven @ 4 Ohms
Standby Mode 37mA
No Signal (Idle) 320mA
Typical (1/8 power pink noise) 0.70A
Max (1/3 power sine wave) 1.23A
Thermal Dissipation: BTU/hr, All Channels Driven @ 4 Ohms
Standby Mode 13
No Signal 61
Typical (1/8 power pink noise) 73
Max (1/3 power sine wave) 85
Signal to Noise
20Hz–20kHz, Unweighted >100dB
Weights, Dimensions & Power
Dimensions
19" W x 3.50" H x 15.5" D (483mm x 394mm x 88.9mm)
Unit Weight 2075/2150: 19.9lbs (9.04kg) 4075/4150: 30lbs (13.6kg)
Shipping Weight 2075/2150: 24lbs (11kg) 4075/4150: 35lbs (16kg)
Power Req. 120VAC, 240VAC ±10%, 50/60Hz (factory set)
2075
trA
2150
trA
4075
trA
4150
trA
4075 2150 4150
4 2 4
75W 150W 150W
40W 80W 80W
75W 150W 150W
75W 150W 150W
75W 150W 150W
39mA 89mA 102mA
565mA 370mA 660mA
1.25A 1.10A 1.95A
2.25A 2.10A 3.80A
15 14 23
113 72 137
145 111 211
150 126 263
>100dB >103dB >103dB
