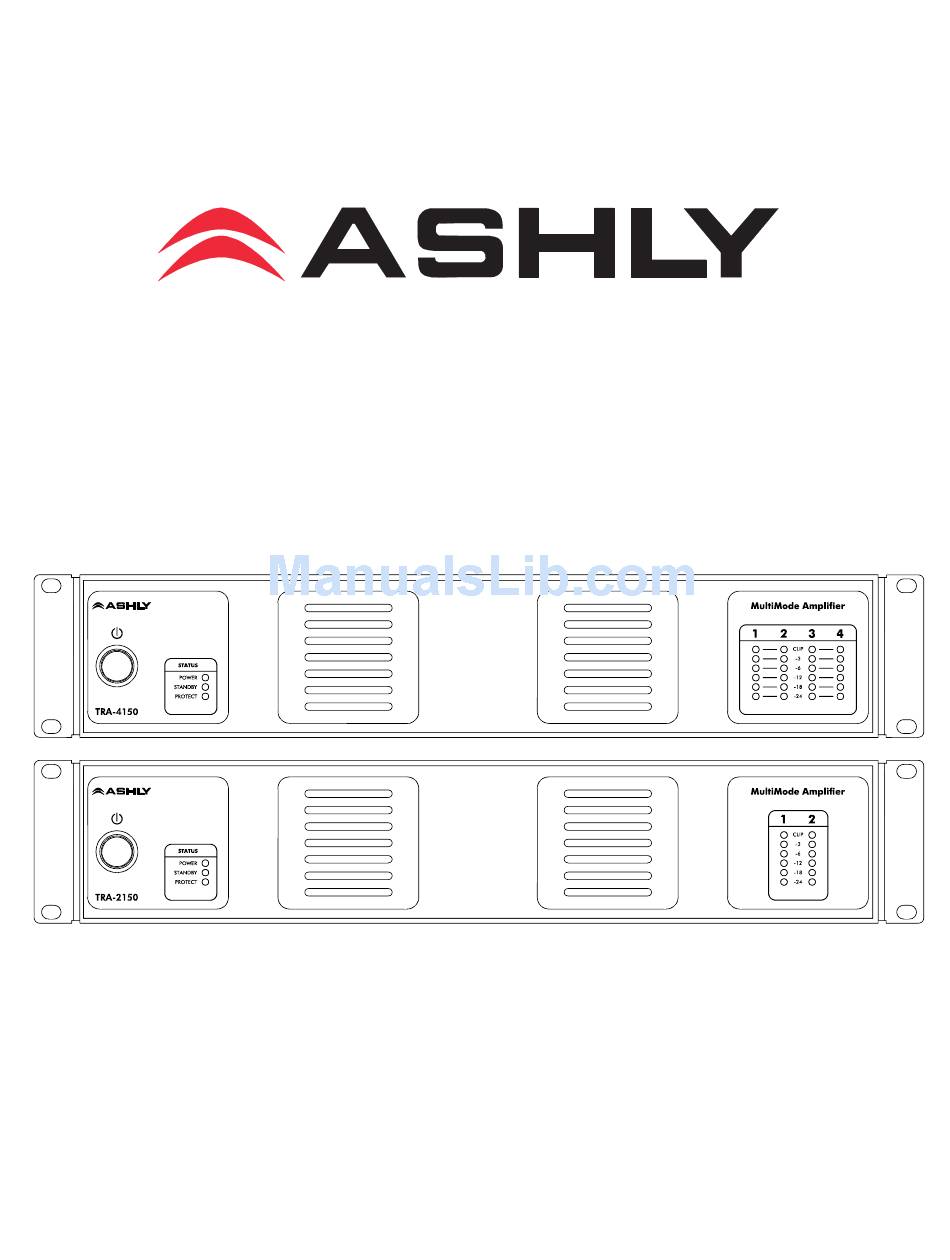

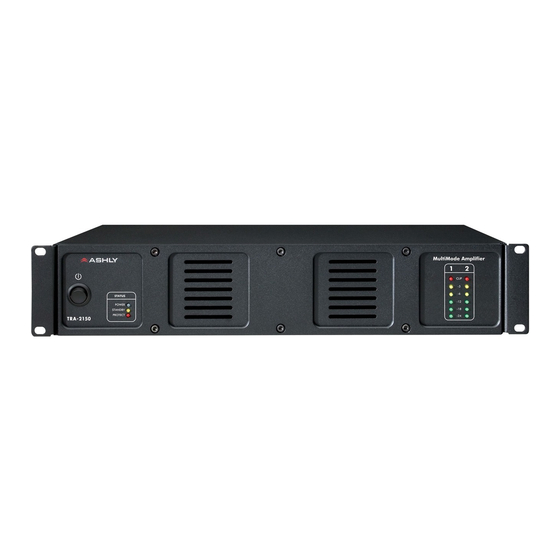

- Page 1 TRA-Series Amplifier Operating Manual Ashly Audio Inc. 847 Holt Road, Webster, NY 14580-9103 Toll Free (800) 828-6308, Telephone (585) 872-0010, FAX (585) 872-0739 www.ashly.com All Trademarks referred to herein, are the property of their respective owners. (R6 0512) All Rights Reserved...
- Page 2 Copyright© 2012 – Ashly Audio Inc.
- Page 3 Ashly’s exclusive Five Year, Worry- Free Warranty remains one of the most liberal policies available on any commercial- grade product. The warranty covers every product with the Ashly brand name, and is offered at no extra cost to you, our customer. FCC Compliance This device complies with part 15 of the FCC Rules.
- Page 4 LED of ALL channels. Inrush limiting - The turn-on current is limited. This is active during initial startup as well as when exiting standby mode. Mains fuse - There is a 5 amp time delay fuse. Copyright© 2012 – Ashly Audio Inc.
-
Page 5: Physical Description
Operator Manual – TRA Series Amplifiers Page - 5 Important Safety Instructions – 2 Physical Description Introduction - 3 TRA-Series models generally have the same physical design, though there are obvious The TRA Series - 4 differences between two and four channel versions. The model number is indicated on the left side of the front panel Physical Description - 5 Front Panel... - Page 6 When setting up and testing your system, please take special care to double check all connections and settings. Please refer to the specifications section of this manual for specific input, output and other figures. Copyright© 2012 – Ashly Audio Inc.
-
Page 7: Typical Applications
AND the 25/70/100 volt outputs of a particular amplifier channel. However, care must be taken to ensure that the combined load is not less that the 4 ohm maximum. If you are unsure as to how to determine the combined load, please contact Ashly. All Rights Reserved... -
Page 8: Instructions
When the product is connected to mains, the line-filter and the input of the fuse are energized. Dimensions - 11 Warranty - 12 Copyright© 2012 – Ashly Audio Inc. -
Page 9: Introduction
Operator Manual – TRA Series Amplifiers Page - 9 Important Safety Instructions – 2 Troubleshooting Introduction - 3 Situation Indication Action The TRA Series - 4 No Sound Signal LED not lit Check AC plug. Confirm that AC outlet works by plugging Clip LEDs not lit in another device. -
Page 10: The Tra Series
Chassis Temperature, Inrush Limiting, Mains Fuse Power Cable Connector 3-Prong IEC Dimensions 19” x 3.5” x 11” Weight 19.5 lbs 29.5 lbs 19.5 lbs 29.5 lbs All Specifications Subject to Change or Improvement Without Notice. Copyright© 2012 – Ashly Audio Inc. -
Page 11: Table Of Contents
Operator Manual – TRA Series Amplifiers Page - 11 Important Safety Instructions – 2 Amplifier Dimensions Introduction - 3 All TRA Series amplifiers share the same dimensional measurements: The TRA Series - 4 Physical Description - 5 Installation – 6 3.5"... -
Page 12: Installation
Installation – 6 Operation – 8 ASHLY AUDIO, INC. warrants to the owner of this product that it will be free from defects Troubleshooting - 9 in workmanship and materials for a period of FIVE years from the original date of purchase.
