Motorola MTP850 S Quick Start Manual

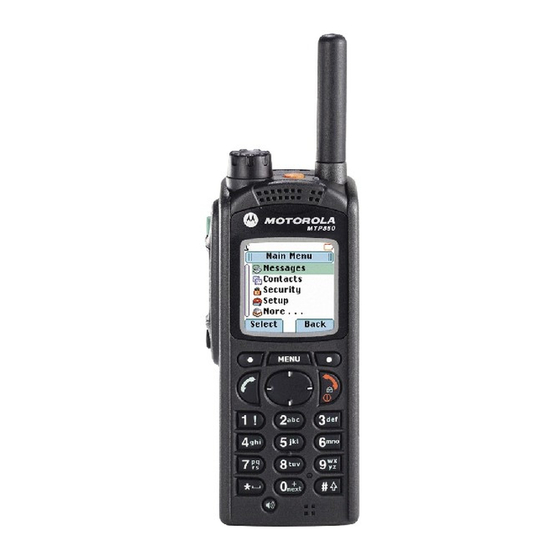

MTP850 S
Quick Start Guide
1 External Antenna Connector
LED Status Indicator
2 Emergency Button
1
3 Programmable Rotary Knob
2
4 Earpiece
23
3
22 5 Programmable Side Key
4 21
6 Push-To-Talk Button (PTT)
5
7 Soft Key
8
6 20 Send Key
9 Speaker (under keypad)
19
5
7 7 10 Speaker Control Key
8 18
11 Side Connector
17
12 Bottom Connector
16
9
14
13 Battery Latch
10
15
14 Keypad Backlight Sensor Battery Capacity Information
15 Bottom Microphone
16 Alphanumeric Keypad
11 17 Four Way Navigation Key
18 On-Off/End/Home Key
19 Menu Key
20 Color Display
10 14
21 Top Microphone
12
22 LED Status Indicator
13
23 Antenna
Indicator Status
Solid green In use
Flashing green In service
Solid red Out of service
Connecting to a network
Flashing red
Entering DMO
Transmit Inhibit in service
Solid orange
Channel busy in DMO
Flashing orange Incoming private or phone call
No indication Switched off
Information Description
Green icon Full (50% – 100% capacity)
Yellow icon Middle (20% – 50% capacity)
Red icon Low (10% – 20% capacity)
Empty icon Very low (5% – 10% capacity)
Low battery message Less than 5% capacity
Installing the Battery Unlocking/Locking Keys
To unlock/lock the keypad, press the Menu button and then *.
How to Hold Your Terminal
The terminal has two microphones: a top microphone for Simplex
dispatcher/private calls and a bottom microphone for Duplex telephone-like calls.
When using low audio, hold your terminal as you would a telephone. Speak into
Remove the battery from its protective white paper box.
the bottom microphone. Listen via the earpiece. Keep antenna at least 2.5
Insert the battery top into the compartment as illustrated.
centimetres from your head and body.
Carefully press the battery bottom downward until it clicks into place.
Attaching the Antenna
When using high audio, hold terminal in a vertical position with its top microphone
5 to 10 centimetres away from your mouth. Speak into the top microphone. Listen
via the terminal's internal speaker. Keep antenna at least 2.5 centimetres from
your head and body.
Turn the terminal off before attaching the antenna.
Align the bottom of the antenna and the screw-in base on the top of the
terminal.
Turn clockwise until snug. Do not force.
Looking After Your Terminal
Unlocking the Terminal
Never leave your terminal or battery in extreme temperatures (over 60 °C) - for
example, behind windscreen in very hot, direct sunlight.
Your terminal may be locked at power up. To unlock the terminal after Do not immerse your terminal in water.
powering on, enter the code at the prompt. To clean your terminal, use a moistened or antistatic cloth.
The unlock code is originally set to 0000. Your Service Provider may change Do not use a dry or electrostatically charged cloth.
this number before you receive your terminal.
