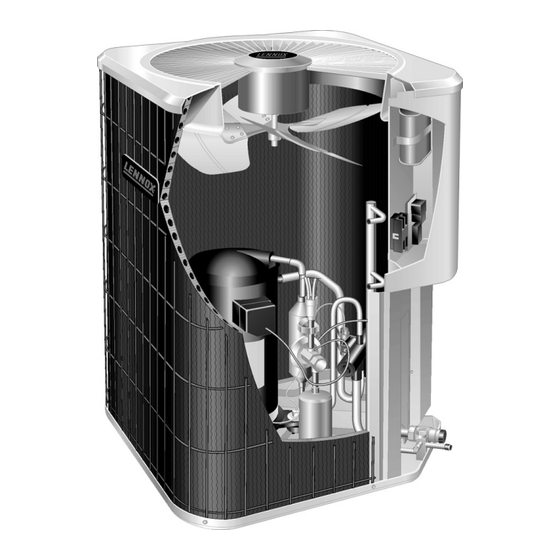

T−CLASStTPA*S4 COMMERCIAL SERIES UNITS
The TPA*S4 is a HFC−410A commercial split-system
heat pump. The series is designed for use with expansion
valves (TXV). All TPA*S4 units utilize scroll compressors.
TPA*S4 series units are available in 3, 3.5, 4 and 5 ton
capacities. All major components (indoor blower and coil)
must be matched according to Lennox recommendations
for the compressor to be covered under warranty. Refer to
the
Engineering
Handbook
matchups.
This manual is divided into sections which discuss the
major
components,
refrigerant
procedure, maintenance and operation sequence.
Information contained in this manual is intended for use by
qualified service technicians only. All specifications are subject
to change.
WARNING
Improper installation, adjustment, alteration, service
or maintenance can cause personal injury, loss of
life, or damage to property.
Installation and service must be performed by a
licensed professional installer (or equivalent) or a
service agency.
IMPORTANT
This unit must be matched with an indoor coil as
specified in Lennox' Engineering Handbook. Coils
previously charged with HCFC−22 must be flushed.
MODEL NUMBER IDENTIFICATION
T = T−Classt Product Line
P = Heat Pump Outdoor Unit
Corp. 0632−L6
Revised 05−2009
for
approved
system
system,
charging
T P A
036 S
Brand/Family
Unit Type
Major Design Sequence
A = 1st Generation
B = 2nd Generation
Nominal Cooling Capacity − Tons
036 = 3 Tons
042 = 3.5 Tons
048 = 4 Tons
060 = 5 Tons
Cooling Efficiency
S = Standard Efficiency
Table of Contents
Specifications / Electrical Data
Optional Accessories
I Unit Components
. . . . . . . . . . . . . . . . . . .
II Refrigerant System
III Charging
. . . . . . . . . . . . . . . . . . . . . . . . .
IV Maintenance
. . . . . . . . . . . . . . . . . . . . . .
V Diagrams
. . . . . . . . . . . . . . . . . . . . . . . . .
4 n
4
1
Y
Voltage
Y = 208/230V-3 phase-60hz
G = 460V-3 phase-60hz
Minor Design Sequence
1 = 1st Revision
2 = 2nd Revision
3 = 3rd Revision
Coil type
4 = Four−sided
Part Load Capability
N = No part load, single stage compressor
Refrigerant Type
4 = R−410A
Page 1
TPA*S4
3, 3.5, 4 and 5 ton
10.5, 12.3, 14 and 17.6 kW
. . . . . . . . .
Page 2
. . . . . . . . . . . . . . . . .
Page 3
Page 4
. . . . . . . . . . . . . . . . .
Page 8
Page 10
Page 16
Page 17
