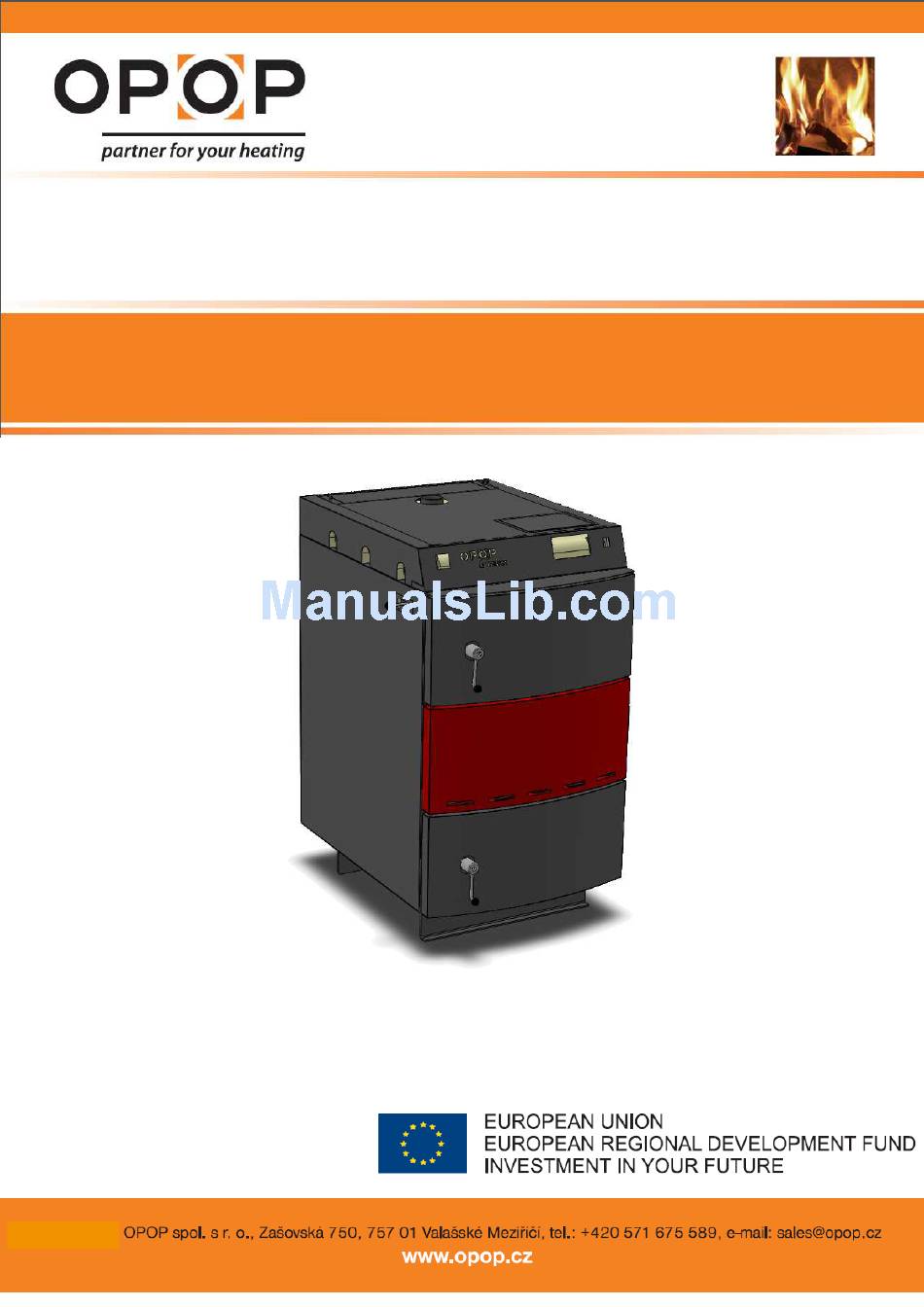

- Page 1 HOT WATER WOOD BOILER ECOMAX 25, 35, 42kW USER MANUAL 2012 Manufacturer: Page...
-
Page 2: Table Of Contents
Contents 1. Safety instructions 1.1 Basic safety precautions 1.2 Fire protection in installing and using heating appliances 1.3 Operators and supervisors 2. Use 3. Technical description of the boiler 4. Technical parameters 5. Fuel material 6. Accessories 7. Preparing the boiler for commissioning 7.1 Binding standards for designing and installing the boilers 7.2 Boiler connection to the hot water system 7.3 Boiler connection to the smoke duct and chimney... -
Page 3: Safety Instructions
1. Safety instructions Basic safety precautions Read carefully through the present boiler operating and maintenance manual and request adequate training from the installer The boiler connection must comply with the applicable regulations Keep the boiler room tidy Do not leave combustible articles in the vicinity of the boiler The boiler may only be operated by persons above the age of eighteen Do not allow children in the vicinity of the boiler Use personal protective equipment –... -
Page 4: Operators And Supervisors

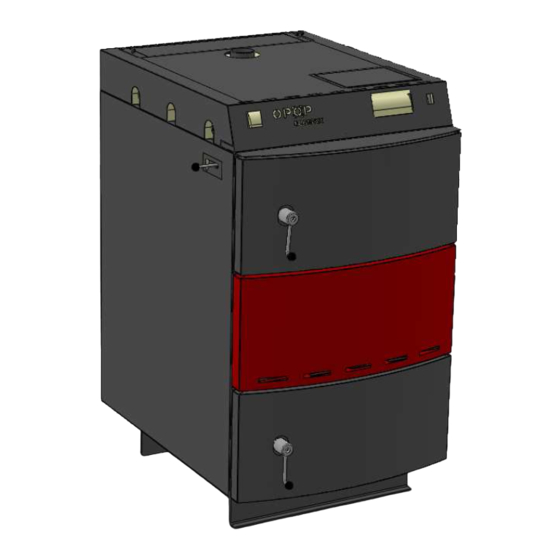

1.3. Operators and supervisors Boiler operators must follow the operation and maintenance manual. Any interventions with the boilers that could endanger the health of the operators or those sharing the household are inadmissible! The boilers may only be operated by persons above the age of 18 familiar with the manual and operation of the boiler. It is inadmissible to leave children unattended near the boilers in operation. - Page 5 Description and drawing of the boiler 1 – Filling door 2 – Cleaning door 3 – Chute 4 – Combustion chamber 5 – Chimney dumper 6 – Door screen 7 – Hot water branch 8 – Cold water branch 9 – Door closing 10 –...
-
Page 6: Technical Parameters
Technical parameters Boiler type ECOMAX 25 ECOMAX 35 ECOMAX 42 Nominal power Chute volume Water volume Outlet branch diameter Maximum boiler width Maximum boiler depth 1000 1120 Maximum boiler height 1200 1200 1475 Chute depth Maximum log diameter Maximum log length Operating chimney draught 20-25 20-25... -
Page 7: Preparing The Boiler For Commissioning
7. Preparing the boiler for commissioning Prior to putting the boiler into operation, the conditions stipulated under the relevant ČSN must be adhered to (such as chimney inspection and approval of fitness for purpose by the Chimney Authorities, a heating system designed calculated for this type of boiler, completion of a heating test, etc.). - Page 8 Chart showing connection of the boiler to the gravity circulation heating system (indicative chart with no claim to completeness) Chart showing connection of the boiler to the system with a pressure expansion vessel (indicative chart with no claim to completeness) A safety pressure valve must be used, whose opening overepressure is 180 kPa! The valve must be fitted to the hot water outlet from the boiler, as close to the outlet pipe as possible.
-
Page 9: Boiler Connection To The Smoke Duct And Chimney
7.3 Boiler connection to the smoke duct and chimney The boiler connection to the flue duct and chimney must correspond to the relevant standards and regulations and must be approved by the relevant Chimney Authorities. Smoke duct The smoke duct must issue into the chimney vent. Unless the boiler can be connected directly to the chimney vent, the respective extension to the smoke duct must be as short as practicable. -
Page 10: Operating Modes
8.2 Operating modes We recommend setting the boiler water (primary circuit) to the temperature of at least 70 C. The low operating boiler temperature supports condensation of tar components on the boiler walls, thus bringing out corrosion which substantially reduces the boiler life. -
Page 11: Control Principle
Notice: In the inhibited mode, the firewood does not burn but rather smoulders and imperfect combustion occurs, releasing smoke gases at an inappropriate composition. The boiler gets clogged and tars in the chute thus reducing its life. In terms of heating ecology and boiler life, excessive heat energy or scheduling of the heating process should be addressed by means of storage tanks and their controlled discharging. -
Page 12: Operation Adjustment
Operating statuses of the boiler in automatic mode Firing up – With insufficient heating water temperature the circulation pump is switched off. The fan slowly increases its power until the heating water temperature exceeds the condensation temperature. Then it passes into the operation stage Operation –... -
Page 13: Boiler Cleaning And Maintenance
8.6 Boiler cleaning and maintenance The boiler should be cleaned at a greater frequency as tar and ash deteriorate heat transfer, which reduces boiler efficiency. The ash from the chute shall be swept away through the opening in the nozzle into the combustion chamber. Tar components must be removed from the boiler walls by a scraper and also swept into the combustion chamber. - Page 14 Clean the air duct between the fan and the nozzle. This must be done after Clogged secondary air vents to the removal of the front fan cover and the fan. nozzle. We recommend trusting the job to a specialised service company! Clogged or overly contaminated Clean the exchanger including the bottom exchanger space (the combustion...
-
Page 15: Controller Configuration
Set another temperature level for switching the fan off – see the service The fan is switched off by the sub-limit settings. In the event of a failure of the thermostat. The boiler temperature has thermostat or the switch, the decreased under 50 replacement must be carried out by a professional service company! -
Page 16: Electric Wiring
the connection of the flat patching cable between the input/output module and the Ecomax control panel. Connect the power cable of the input/output module to the 230VAC distribution grid. Physically check the running of the primary air circulation pump and the secondary heating circuit pump if present in the heating system. -
Page 17: Description Of The Connection
10.2 Description of the connection The controller is powered up by 230V/50Hz network using a network cable with a bent plug and CEE7/7 connector. The IEC 320 C13 network socket case accommodates a protective 2A/T tube fuse. The power part of the controller is screwed onto the inside of the boiler’s sheet case, equipped with passages and a flat patching cable for the Ecomax control panel. -
Page 18: Controller Parameters
10.3 Controller parameters Ecomax input/output module Size: 215×132×83 (width×height×depth) Supply voltage: 230VAC Maximum current consumption: Maximum input power: 260VA Temperature sensor input : 2 inputs for DS18B20 digital temperature sensors Safety thermostat input: 230VAC normally closed contact Open door sensor input: 230VAC normally closed contact Fan motor output: 230VAC triac,... -
Page 19: Warranty Certificate
12. WARRANTY CERTIFICATE covering ECOMAX 25, ECOMAX 35, ECOMAX 42 hot water boiler, fabrication no. Manufacturer: OPOP spol. s r.o., Valašské Meziříčí Tel.: 571 675 589, Fax.: 571 611 225 Shipped from the plant:_________________________________________ Warranty terms: The present warranty sheet contains quality and completeness certificates. The manufacturer confirms that the product has been checked and proved to conform, with its design, to the technical conditions and ČSN EN 303-5. - Page 20 We are very happy for you to have opted for our product. The decision entitles to a 10% discount on spare parts. In order for you to obtain the advantages above, you must fill in the registration card and send it to our address: OPOP spol s r.o. Obchodní oddělení...
- Page 21 OPOP, spol. s r. o. Zašovská 750 757 01 Valašské Meziříčí Bank details: Komerční banka a.s., account no.:1608851/0100 Reg. no.: 47674105, VAT no.: CZ 47674105 Phone: Sales Dept: 571 675 589, Secretariat: 571 611 250, Production: 571 675 405 Sourcing: 571 675 114, Finance: 571 675 472 Fax.
