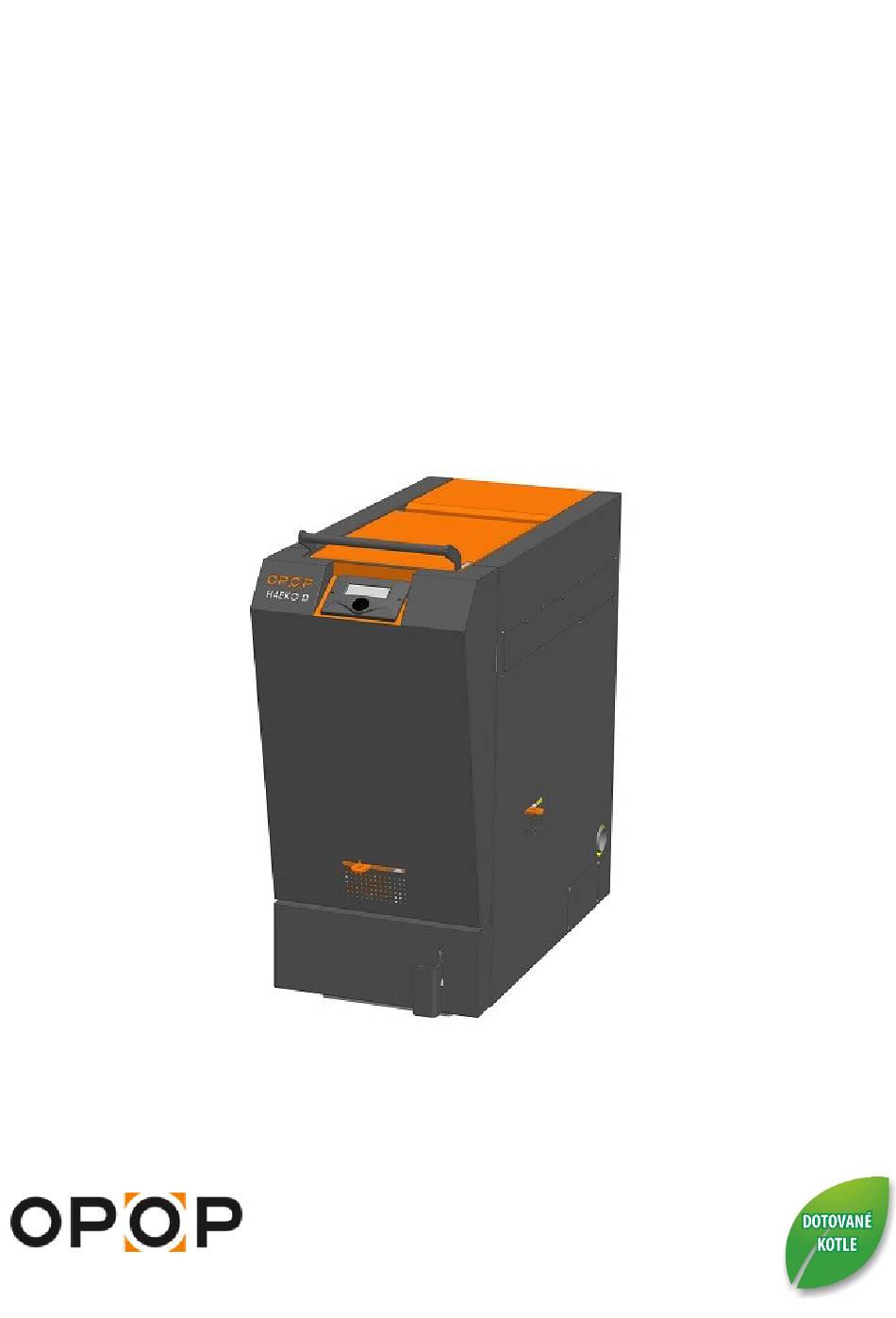

- Page 1 OPOP spol. s.r.o., Zašovská 750, 757 01 Valašské Meziříčí I www.opop.cz I sales@opop.cz I +420 571 675 589 H4EKO-D USER MANUAL...
-
Page 2: Table Of Contents
H4EKO-D User manual CONTENT 1. INTRODUCTION ................................3 2. BOILER CHARACTERISTIC .............................. 3 3. TECHNICAL DESCRIBTION ............................. 3 4. TECHNICAL PARAMETERS ............................4 5. LIST OF SPARE PARTS ..............................7 7. BOILER ASSEMBLY ................................ 9 8. CONNECTION OF THE COOLING LOOP ........................10 9. -
Page 3: Introduction
H4EKO-D User manual 1. INTRODUCTION Dear customer, We greatly appreciate the fact that you have chosen the product from our product range and have become one of our customers. We wish you real pleasure with our product. We hope our product will serve you for a long time. All employees of our company contribute to this. -
Page 4: Technical Parameters
H4EKO-D User manual 4. TECHNICAL PARAMETERS Technical parameters Boiler size Boiler size Boiler size Name of the data Unit H416 EKO-D H420 EKO-D H425 EKO-D Rated heat output [kW] Efficiency 90,2 Required chimney draft Weight [kg] Ekodesign Boiler class according to EN 303-5 Volume of water [ l ] Chimney outlet diameter... - Page 5 H4EKO-D User manual Dimensions of the boiler: H416 EKO-D H420 EKO-D H425 EKO-D Variant A: Outlet / Inlet sleeve (male thread) G1 1/4" G1 1/4" G1 1/4" Variant B: flange, new boiler for old Cooling loop connection (internal thread) G 1/2" G 1/2"...
- Page 6 H4EKO-D User manual Front of the boiler: Left side of the boiler: Control unit Primary air flap Secondary air flap Filling chamber flap Combustion chambre door Cleaning closure Back side of the boiler: Right side of the boiler: ...
-
Page 7: List Of Spare Parts
H4EKO-D User manual 5. LIST OF SPARE PARTS The complete disintegration of all H4xx-D series boilers can be found below. Use this list to identify the parts of the boiler when ordering or replacing them. - Page 8 Izobrex for filling door 577772 Isolation inside Isolation of the filling door 20x10 (l = 256mm) 7001903 Movable flap assembly 7001904 Lever of the flap-S 7001905 Flap bar 7001906 Rotary handle assembly čep B-6x35 ISO 2340 Control unit OPOP H4-D...
-
Page 9: Boiler Assembly
A solid fuel boiler may only be installed by a company with a valid authorization to install it or by a person authorized by us. The list is available at opop.cz or you can request it at the telephone number 571 675 589. The project must be prepared according to the valid regulations. -
Page 10: Connection Of The Cooling Loop
H4EKO-D User manual The flue path piping must be properly mounted and sealed of the boiler must be firmly assembled and fitted to prevent accidental or spontaneous release. We recommend that the flue pipe from the boiler to the chimney is no longer than 1m and that it rises towards the chimney;... -
Page 11: Electric Scheme
H4EKO-D User manual 10. ELECTRIC SCHEME... -
Page 12: Hydraulic Scheme
H4EKO-D User manual 11. HYDRAULIC SCHEME CONNECTION WITH 1 HEATING CIRCUIT, MIXING VALVE, BUFFER TANK Part Type / Component / Description El.connect. Order number CH pump Primary circuit pump CH pump Mixing valve 1 3- or 4-way mixing valve (plugged into the 431N module) Valve KTY mixing valve sensor 1 Vlave sens. - Page 13 H4EKO-D User manual CONNECTION WITH 1 HEATING CIRCUIT, MIXING AND THERMOSTATIC VALVE, BUFFER TANK Part Type / Component / Description El.connect. Order number CH pump Primary circuit pump CH pump Thermostatic valve 3 – way thermostatic valve KTY mixing valve 1 sensor Vlave 1 sens.
-
Page 14: Control Unit
H4EKO-D User manual 12. CONTROL UNIT House heating – indicator of heating type. It can be divided into the following types: House heating - only the central heating pump (CH) is active. b. DHW priority - the DHW pump is activated as a priority, after the set DHW temperature has been reached, the DHW pump is deactivated and the DHW pump is activated to ensure the circulation of water in the primary circuit. -
Page 15: Basic Dunction Of The Control Unit
H4EKO-D User manual 13. BASIC DUNCTION OF THE CONTROL UNIT The control unit controls the water circulation pump (CH), the domestic hot water pump (DHW), the secondary circuit circulation pump, the mixing valve, the buffer tank and the exhaust fan. It is also possible to control two additional mixing valves using 431N modules. - Page 16 H4EKO-D User manual 5. Manual mode For user convenience, the controller is equipped with Manual mode. In this function, each operating device (fan, CH pump, DHW pump, additional pump, valve) is switched on and off independently of each other and each active mixing valve can be closed, opened or stopped in the given position.
-
Page 17: Fitters Menu
(traditional open-close possition) and OPOP / TECH controller (RT10). When the OPOP / TECH controller is connected, the user has the possibility to control and change the specified CH, DHW and mixing valve temperatures. All boiler controller alarms are also displayed. When working with the mixing valve, the user has a preview of the current outdoor temperature on the display panel with valve parameters. -
Page 18: Basic Setup Of The Control Unit
H4EKO-D User manual Example: The set temperature is 55 °C and the hysteresis is 5 °C. After reaching the set temperature of 55 °C, the DHW pump switches off and the CH pump is switched on. When the temperature drops to 50 °C, the DHW pump switches on again. 11. -
Page 19: Igniting
H4EKO-D User manual 15. IGNITING The wood in the boiler burns out through the refractory nozzle. Place small pieces of wood and chips on the nozzle so that the nozzle is permeable and the flame can pass through the nozzle. Use a paper or a solid ignitor for ignition. -
Page 20: Extinction
H4EKO-D User manual Never leave the suction flap in the open position during the boiler operation. Otherwise, the fuel in the filling shaft will burn upwards, not through the nozzle. This may cause damage to the metal parts in the filling shaft or damage to the suction flap. Not to mention that all of your heat would have fled to the chimney before it was given to the water. -
Page 21: Safety Instructions
H4EKO-D User manual 20. SAFETY INSTRUCTIONS Residual risks and their prevention. The risks arising from the operation of the boiler under conditions of foreseeable use and reasonably foreseeable misuse have been minimized by available technical means. Despite the constructional and technical measures implemented, certain residual risks resulting from the risk analysis that are given by the technological process during the different phases of the device’s life remain in the boiler operation. - Page 22 H4EKO-D User manual Risk during maintenance of the boiler and its accessories Risk Source Risk Management Hazard Elimination If the boiler is not shut down for a long time, its parts may be still hot, therefore Burning, inhaling dust, eye contact with use protective gloves.
-
Page 23: Measures In Case Of Failure
Too high MOSFET temperature alarm message. Check the operation of the exhaust fan, remove it, clean it and try again. If the problem persists, call the OPOP service. Damaged equithermal sensor If you connect an outdoor temperature sensor, it is possible to control the mixing valve equithermally. - Page 24 Also check fan operation, no noise must be heard. Fan: shaft obstruction If the problems persist, call OPOP Service. If any of these accessories are activated but not physically connected, an There is no communication with the Internet error message will occur.
-
Page 25: Energy Efficiency
Energy energy nominal heat energy trademark of model Efficiency efficiency class output in kW efficiency of the supplier; identifier; Index heating in % OPOP s.r.o. H416 EKO-D OPOP s.r.o. H420 EKO-D OPOP s.r.o. H425 EKO-D... -
Page 26: Identification Marks
0,002 Contact information OPOP s.r.o. , Zašovská 750, Valašské Meziříčí, 757 01 (*) Tank volume = 45 × Pr × (1 - 2,7 / Pr) or 300 liters, whichever is higher, Pr being expressed in kW (**) Tank volume = 20 × Pr where Pr is expressed in kW... - Page 27 0,002 Contact information OPOP s.r.o. , Zašovská 750, Valašské Meziříčí, 757 01 (*) Tank volume = 45 × Pr × (1 - 2,7 / Pr) or 300 liters, whichever is higher, Pr being expressed in kW (**) Tank volume = 20 × Pr where Pr is expressed in kW...
- Page 28 0,002 Contact information OPOP s.r.o., Zašovská 750, Valašské Meziříčí, 757 01 (*) Tank volume = 45 × Pr × (1 - 2,7 / Pr) or 300 liters, whichever is higher, Pr being expressed in kW (**) Tank volume = 20 × Pr where Pr is expressed in kW...
-
Page 29: Regulations And Standards
H4EKO-D User manual 24. REGULATIONS AND STANDARDS ČSN 06 0310 - Central Heating. Design and Assembly. ČSN 06 0830 - Safety Devices for Central Heating and Service Water Heating ČSN 06 1008 - Fire Safety of Local Appliances and Heat Sources (Water Heaters up to 50 kW) ČSN 06 1610 - Flue Parts of Home Appliances ČSN 07 0245 - How Water and Low Pressure Steam Boilers. - Page 30 H4EKO-D User manual Flue should not be longer than one meter (distance between the boiler and chimney inlet) and should be fitted with a cleaning opening. The flue can be extended only if the chimney draft was measured and recorded no longer than 30 cm from the boiler outlet and it meets the minimum operating draft, see chapter Main parameters.
-
Page 31: Warranty Card
User manual 27. WARRANTY CARD Solid fuel boiler H416EKO-D, H420EKO-D, H425EKO-D Producer: OPOP spol. s r.o., Valašské Meziříčí Tel.: 571 675 589, fax.: 571 611 225 Date of the expedition from the factory : _________________________________________ The user shall be obliged to have a professional service company to put the device into operation, to conduct regular maintenance and repairs. -
Page 32: Declaration Of Conformity
H4EKO-D User manual 28. DECLARATION OF CONFORMITY... - Page 33 H4EKO-D User manual OPOP, spol. s r. o. Zašovská 750 757 01 Valašské Meziříčí Bankovní spojení: Komerční banka a.s., č. účtu:1608851/0100 IČO: 47674105, DIČ: CZ 47674105 Telefon: obchodní oddělení: 571 675 589, sekretariát: 571 611 250, výroba: 571 675 405 Zásobování: 571 675 114, finanční...
