Danger of harming radiation Environment your hands Gas bottles Watch for Electricity Danger for cutter Entrapment hazard Battery hazard Rotating parts falling objects XG0146 150204 Canadian Heating Products Inc. Langley, BC V4W 4A1 | Montigo Del Ray Corp. Ferndale, WA 98248...
Please retain this owner’s manual for future reference and maintenance. Table of Contents Instruction Manual Contents Section 9: Installing the Accessories Installing the H34DF* Log Set (Part # LGSH34) Introduction Installing the HC34DF* Log Set (Previous model HD34DF*) (Part # LGS44P) Before You Start Installation Checklist...

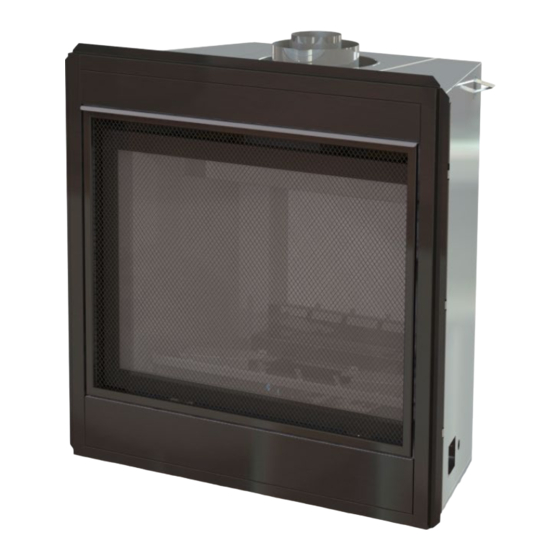

Introduction Congratulations on your purchase of a Montigo Fireplace. With over 30 years of experience, Montigo is committed to providing you with a gas fireplace that is not only a beautiful addition to your space, but that is also designed and manufactured to the highest safety, reliability and engineering standards.
Should it be impossible to meet the venting requirements laid BEFORE YOU START: out in Section 3: Venting, please contact a local Montigo dealer regarding the use of a Montigo Power Vent. Lay out the Vent run; calculating the required elbows and straight ...
H*34DF Indoor Gas Fireplace Installation Section 1: Installation Overview and Product Dimensions Please review the Installation Checklist on Page 4 for general information Safety, as well as efficiency of operation, should be considered when on preparing for a successful installation of your fireplace. selecting the fireplace location.
43” 43” to corners only to corners only 2” min. 2” min. Exterior Exterior Wall Wall H34DF*, HL34DF* & HR34DF* HC34DF* ONLY, see figures 7 and 25a. Q” M” Q” N” N” P” P” Figure 4. Combustible Framing for shelves over the fireplace, Top vent.
A clearance to maintains a 6" clearance. combustibles of 9" for H34DF* and a clearance to combustibles of 11" for HC34DF* , & HL34DF* is required to the underside of any combustible shelf materials, Figure 3.
Should it be impossible to ensure that the termination is the highest point or to Flue Cover Plate meet the venting guidelines laid out below please contact your Montigo dealer to discuss power venting options. Flue Gasket NOTES FOR PLANNING VENTING: 7”...
H*34DF Indoor Gas Fireplace Installation Section 3-2: Installing a Roof Mounted Direct Vent Termination (MVTK-1) MVTK1 PVTK1 Termination Termination This section applies to installations where the direct vent termination 2’ min. will be roof mounted. Support ring Section 3-2-1: Venting Layout: Roof Mounted Termination Selection of components and details of venting lay out should Support plate 32’...
Page 12
H*34DF Indoor Gas Fireplace Installation MVTK1 Termination MEXT Sections Support plate 32’ max Support ring 18” Max. Figure 11c. Rear vent, Roof mounted venting (1 = 90° bend). Note: Images are shown without screens for clarity purposes. However, your fireplace should not be operated without proper installation of screens.
H*34DF Indoor Gas Fireplace Installation Section 3-3: Installing a Wall Mounted Direct Vent 4). Installation of termination from inside structure Termination A Termination with a MOSR Frame is installed from the inside of the structure. These are commonly used in high-rise construction. This section applies to installations where the direct vent termination will be wall mounted.
Shaded area) please contact a local wall flange of the termination. Plot on the Venting Graph Figure 14 or Montigo dealer for Power Venting Options. 15 with an 'X'. If the 'X' falls on or above the top boundary of the shaded area, the installation is acceptable.
Page 15
8' MIN Flex Section at MAX If your installation does not fall within the venting graph parameters, (non-Shaded horizontal area) please contact a local Montigo Exterior dealer for Power Venting options. Wall Hearth Horizontal Run (in.) Figure 15b. Top Vented, wall mounted Multi-elbow installation. See Figure 16.
Page 16
H*34DF Indoor Gas Fireplace Installation 45° Corner Installation. Attach an EEL-45 (45° elbow) directly onto the flue collar. Cut the MXT-20 to suit, and attach it to the EEL-45. Slide the fireplace into position and attach to the termination. RHS 100 MXT-20 EEL-45 Figure 17.
MXT - 20 (20" f/f Section) possible hot spots. MEXT - 1 (12" f/m Section) Montigo recommends the use of a flex section for the final pipe MEXT - 2 (24" f/m Section) connected directly to the fireplace offering greater flexibility of MEXT - 3 (36"...
H*34DF Indoor Gas Fireplace Installation Section 3-3-3: Heat Shields Installing a Wall Mounted RHS100 Heat shield. Installing a Wall Mounted RHS7 Heat shield The RHS100 Heat shield MUST be used where the RHS7 Termination The RHS7 Heat shield CANNOT be used WITHIN 36" horizontal or (Figure 18 and 18a) CANNOT be used.
H*34DF Indoor Gas Fireplace Installation Section 4: Wiring OPTIONAL BATTERY PACK 1.5V AA type 1.5V AA type SPARK GREEN 1.5V AA type WHITE BLACK 1.5V AA type BLACK SENSOR To PPO Models TO ON/OFF BLUE H34DFNI HL34DFNI WALL SWITCH H34DFLI HL34DFLI BLUE WHITE...
Page 20
H*34DF Indoor Gas Fireplace Installation Installing the remote On/Off Wall Switch The H*34DF* gas valve may be connected to a wall switch. Do NOT connect any external power to the remote switch. The valve will generate its own power on a millivolt circuit or will draw its power from an AC Connection inside the fireplace, depending on the model of the unit.
WARNING a 1/8” N.PT. plug to be fitted with a hose barb. Montigo requires a service shut off valve be located in an When installing the replace - gas lines, ttings, accessible location to isolate the gas supply.
Finishing Around the Fireplace Combustible mantels and mouldings may be safely installed over the top and on the front of the H34DF* & HL34DF* fireplaces provided that Combustible they do not project beyond shaded area shown in Figure 25. Fireplace...
Page 23
Side wall clearances are 3". Combustible surrounds may be installed with 3" clearance to the side of the fireplace as shown in Figure 26 or 26a. Drywall/ Sheetrock Combustible Header 6” 45° 3” Figure 26. H34DF* and HL34DF*Combustible surrounds. Drywall/ Sheetrock Combustible Header 3” Nailing Flange 6” 45° 3”...
DIMENSIONS ARE IN INCHES REVISIONS TOLERANCES: MANUAL IMAGE 1 01/27/2015 Drawn by FRACTIONAL 1/32" TWO PLACE DECIMAL .015" DWG. NO. H34DF-MAN1 Revision / Date DESCRIPTION DATE CHANGED BY THREE PLACE DECIMAL .005" Revision ALL BENDS ARE ASSUMED MATERIAL TO BE 90 UNLESS NOTED Finish OTHERWISE.
H*34DF Indoor Gas Fireplace Installation Section 8: Installing & Removing the Door Removing the door: The H*34DF* doors are removed in a few simple steps. Follow these Step 4: instructions below to remove the Horizontal access panel, unlatch the Firmly grasp hand-hold door buckles and, remove the door.
Page 26
H*34DF Indoor Gas Fireplace Installation Step 8: Removing the Door: Grasp the Door on either side, usually midway and lift upward, lift the door carefully up and away from the front of the fireplace. See Figures 27g. Place the Door aside in a safe place while maintenance and / or cleaning is being performed.
Installing the Logs: log, as shown in figure 28c. Install the glass door. If the flame The H34DF* fireplace is supplied with five ceramic fibre logs. Unpack does not appear satisfactory, double-check the air inlet and the logs and handle them very carefully.
H*34DF Indoor Gas Fireplace Installation Installing the HC34DF* Log Set (Previous model HD34DF*) Step 5. Place the left two logs, and the centre log shown below in figure 29d. (Part # LGS44P) Installing the Logs: The HC34DF* is supplied with a seven piece ceramic fibre logset. Unpack the logs and handle them very carefully.
Designer River Rocks - Converting from H34DFN* to HR34DFN*: Installing Firestones in Natural Gas and Propane Fireplaces To convert your H34DF fireplace to an HR34DF unit with designer river The HL34DF* fireplace is supplied with firestones. Remove the Door rocks, follow these instructions: as shown on page 21.
H*34DF Indoor Gas Fireplace Installation Remove the Rock Guard and River Rocks from packaging. Installing the Designer River Rocks: The HR34DF* is supplied with (40) forty faux ceramic fibre river rocks. Install the new Rock Tray and front cover. Make sure the tray is not Unpack the rocks and handle them very carefully.
Page 31
H*34DF Indoor Gas Fireplace Installation 2 in1 Faux Rock "B" 2 in1 Faux Rock "C" Figure 32j. Completed lower layer of ceramic Rock. Figure 32c. Placement of faux ceramic rock "B" & "C" . Note decreasing size Step 8. Install the first faux ceramic "E" Rocks on top of the lower level of rock diameters toward centre of burner.
Page 32
H*34DF Indoor Gas Fireplace Operation Figure 32p. Place the sixth Top faux Rock on top, behind the pilot burner faux Rocks. Figure 32q. Place the seventh Top faux Rock in the front. Figure 32r. Place the eight Top faux Rock in the front to the Right of the last Rock. Figure 32s.
H*34DF Indoor Gas Fireplace Operation Section 10: Operation - Start up Sequence For Your Safety - READ BEFORE LIGHTING: with American Flame Electronic Ignition WARNING If the information in these instructions is not followed exactly, a fire or explosion may result causing property damage, personal injury or death.
H*34DF Indoor Gas Fireplace Operation SIT Proflame 2 Electronic Ignition Lighting Instructions: 1. STOP! Read the safety information above on this label. 6. Turn fireplace "ON" using wall switch or remote control. 2. Remove the lower Horizontal access panel. 7. If the Fireplace does not light, the System will cycle through two trials, (one minute audible clicking, thirty seconds of silence, and 3.
H*34DF Indoor Gas Fireplace Operation Honeywell Electronic Ignition Lighting Instructions: 1. STOP! Read the safety information above on this label. 8. If the fireplace does not operate, follow the instructions "To Turn Off Gas To Appliance" and call your service technician 2.
H*34DF Indoor Gas Fireplace Maintenance Maintenance Lighting Instructions Hi-Lo Burner Adjustment: (SIT Nova 820). See pages 27 to 29. The H*34DF* is equipped with an adjustable burner, allowing you to General raise or lower the flames. To adjust the flames, locate the black knob Have the fireplace and installation inspected yearly.
If your fireplace still does not operate correctly, consult your local Montigo dealer. All service and repairs should be performed by a qualified Technician. All spare parts, optional fans, and optional trim finishes are available from your local Montigo dealer. Page 37 XG0146 - 150204...
RGC3063 Proflame Transmitter RDTH34 Door RSCH34 Replacement Screen All service and repairs should be performed by a qualified Technician. All spare parts, optional fans, and optional trim finishes are available from your local Montigo dealer. Page 38 XG0146 - 150204...
H*34DF Indoor Gas Fireplace Appendix Appendix A: Venting Terminations Location Canada* USA** 12 inches 12 inches clearance to the termination frame above grade, veranda, porch, deck, or balcony clearance to top of doors or operable windows 12 inches 12 inches clearance to sides or bottom of door or operable windows 9 inches 12 inches...
The duration of any implied warranty with respect to this Montigo Gas Appliance is limited to the duration of the foregoing warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above may not apply to you.
Page 41
H*34DF Indoor Gas Fireplace Appendix Appendix C: State of Massachusetts Amendment (Gas Fireplace / Equipment sold in the State of Massachusetts) 5.08: Modifications to NFPA-54, Chapter 10 (1) Revise NFPA-54 section 10.5.4.2 by adding a second exception as follows: Existing chimneys shall be permitted to have their use continued when a gas conversion burner is installed, and shall be equipped with a manually reset device that will automatically shut off the gas to the burner in the event of a sustained back-draft (2) Revise 10.8.3 by adding the following additional requirements:...
Page 42
H34DF Residential Gas Fireplace XG0146 - 150204...
