Owner's Manual

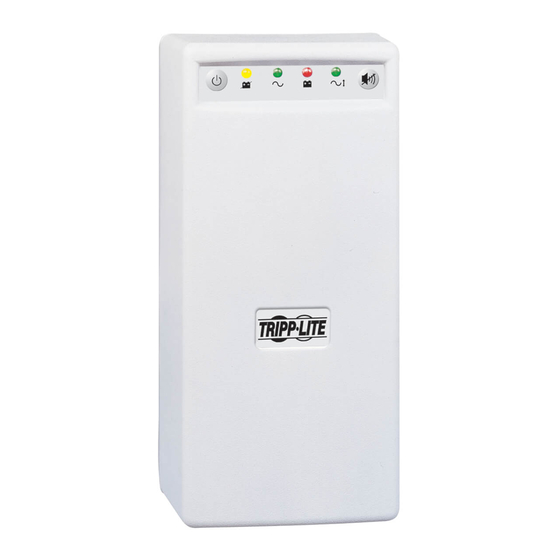

Intelligent, Line-Interactive UPS System
• 230V Sine Wave Input/Output • Extended Runtime Capability
Français
Deutsch

SmartPro
Not suitable for mobile applications
Agency approvals vary with model.
1111 W. 35th Street, Chicago, IL 60609 USA
Customer Support: +1.773.869.1234 • www.tripplite.com
Copyright ©2008 Tripp Lite. All rights reserved. SmartPro ® is a trademark of Tripp Lite
®
2
3
5
6
7
11
12
13
25
37
49

Advertisement

Table of Contents
loading

Related Manuals for Tripp Lite SmartPro

Summary of Contents for Tripp Lite SmartPro

  • Page 1: Table Of Contents

    Optional Installation Basic Operation Storage and Service Battery Replacement Español Français Deutsch  1111 W. 35th Street, Chicago, IL 60609 USA Customer Support: +1.773.869.1234 • www.tripplite.com Copyright ©2008 Tripp Lite. All rights reserved. SmartPro ® is a trademark of Tripp Lite...

  • Page 2: Important Safety Instructions

    Tripp Lite offers a complete line of UPS System Replacement Battery Cartridges (R.B.C.). Visit Tripp Lite on the Web at www.tripplite.com to locate the specific replacement battery for your UPS. • During hot-swap battery replacement, the UPS will not provide backup power in the event of a blackout or other power interruptions.

  • Page 3: Mounting

    2-Post (Telecom) Mounting Two-post mounting will require a Tripp Lite 2-Post Rackmount Installation Kit (Model 2POSTRMKITWM, sold separately). For detailed installation procedures, see the 2POSTRMKITWM Owner's Manual.
  • Page 4 Mounting (Tower) Mount all UPS models in an upright, tower position using included hardware. The user must determine the fitness of hardware and procedures before mounting. Stand your UPS on its side with the LED/Control panel at the top. Attach one rack mounting ear to each side of the UPS using included screws .

  • Page 5: Quick Installation

    UPS system. Note: Additional interconnection cords (C13-to- C14) are available from Tripp Lite. Call +1.773.869.1234 (Part # P004-006). * Your UPS is designed to support computer equipment only. You will overload the UPS if the total VA ratings for all the equipment you connect exceeds UPS output capacity.

  • Page 6: Optional Installation

    Optional Installation These connections are optional. Your UPS will function properly without these connections. USB and RS-232 Serial Communications Use the included USB cable (see ) and/or DB9 serial cable (see ) to connect the c o m m u n i c a t i o n port your computer to the communication port of your UPS.

  • Page 7: Basic Operation

    UPS batteries need to be recharged or replaced. Allow the UPS to recharge continuously for 12 hours, and repeat the self-test. If the LED remains lit, contact Tripp Lite for service. If your UPS requires battery replacement, visit www.tripplite.com to...

  • Page 8: Indicator Lights (Front Panel)

    UPS batteries need to be recharged or replaced. Allow the UPS to recharge continuously for 12 hours, and repeat the self-test. If the LED continues to light, contact Tripp Lite for service. If your UPS requires battery replacement, visit www.tripplite.com to locate the specific...
  • Page 9 Communications Ports (USB or RS-232): These ports connect your UPS to any workstation or server. Use with Tripp Lite’s PowerAlert Software and included cables to enable your computer to automatically save open files and shut down equipment during a blackout. Also use PowerAlert Software to monitor a wide variety of AC line power and UPS operating conditions.
  • Page 10 UPS’s output can be evaluated without disrupting critical operations. External Battery Connector (Select Models Only): Use to connect Tripp Lite external battery packs for additional runtime. Refer to instructions available with the battery pack for complete connection information and safety warnings.

  • Page 11: Storage And Service

    2. If the problem continues, do not contact or return the UPS to the dealer. Instead, call Tripp Lite at +1.773.869.1233. A service technician will ask for the UPS's model number, serial number and purchase date and will attempt to correct the problem over the phone.

  • Page 12: Battery Replacement

    Regulatory Compliance Identification Numbers For the purpose of regulatory compliance certifications and identification, your Tripp Lite product has been assigned a unique series number. The series number can be found on the product nameplate label, along with all required approval markings and information.

  • Page 13: Español

    1111 W. 35th Street, Chicago, IL 60609 USA 773.869.1234 (USA) • 773.869.1212 (International) www.tripplite.com 2009XXXXX 93-2827_EN...
