ROUTINE MAINTENANCE
WINDOW WASH
Periodically remove four screws which secure the win-
dow wash bracket to the door frame, using a 1/4" socket.
Lift out the widow wash bracket, and set aside. Using a
small brush, sweep out all debris buildup from behind the
window wash bracket. After all debris has been removed
re-attach the window wash bracket.

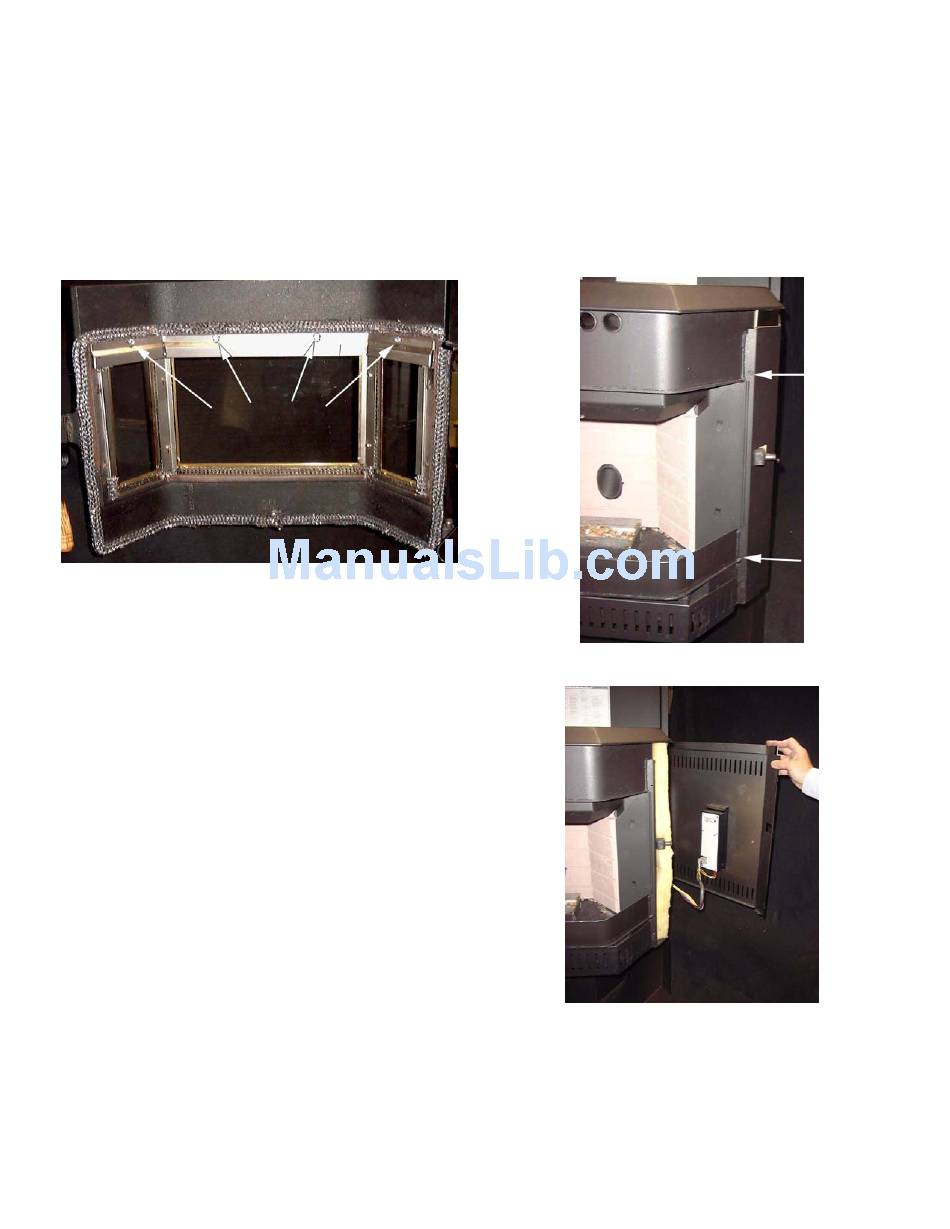

Remove Window Wash Bracket
Remove 4 Screws
Sweep Away Debris from Behind Window Wash Bracket.
Minimum Frequency of 1 year
REAR STOVE COMPARTMENT (All Models)
The rear stove compartment should be cleaned periodi-
cally (a minimum of once a year). DISCONNECT ELEC-
TRICAL CORD PRIOR TO CLEANING STOVE. Any
household dust, pet hair or sawdust should be vacuumed
or wiped out of the rear compartment of the stove, room
air blower, and combustion blower (paying special atten-
tion to vacuuming out the intakes of both blowers). The
electrical components should be wiped clean.
OPENING SIDE PANELS
Advantage II-T C FS – For right hand side panel open
the glass door, locate the 2 screws at front edge and re-
move using a 5/16" nut driver. Repeat procedure for left
hand side panel with door closed. Reinstall screws to
prevent panel from opening accidentally!
Advantage II-T C FS – Opening Side Panels
(Remove the 2 screws indicated by arrows in following picture)
PAGE 29
www.PelletKing.com
Remove Side Panel Screws
Stove
Front
Swing Door Open
