INSTALLATION

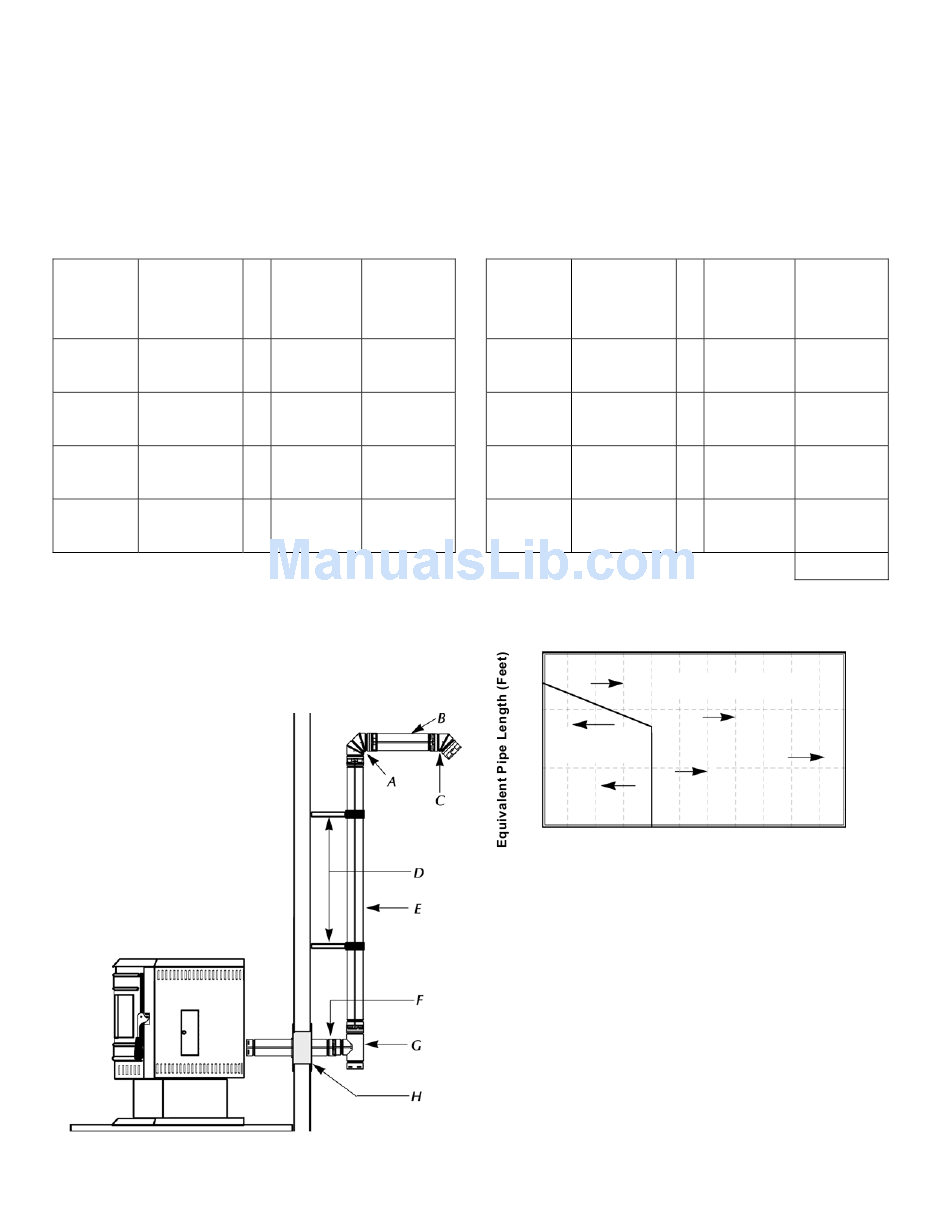

DETERMINING SIZE OF PIPE TO INSTALL
To determine what diameter pipe to use in an installation (3" or 4"), first find the "equivalent pipe length" using the follow-
ing guidelines, then plot this figure and the altitude on the chart.
Fill out the installation chart, and calculate your total equivalent pipe length. After you have the total equivalent pipe
length, use the Pipe Selection Chart below to determine if your installation requires 3" or 4" exhaust pipe
INSTALLATION CHART
Type of # of Elbows
Pipe or Feet of
pipe
o
90
Elbows /
Tee (A & G)
o
45
Elbows (C)
Horizontal
(B & F)
Vertical
(E)
A- 90 Degree Elbow
B- 1' Horizontal Pipe
C- 45 Degree Elbow
D- Standoff Braces
H- Wall Thimble
NOTE: All equivalent pipe styles shown below are stan-
dard for all freestanding models.
Equivalent Total
Feet Equivalent
Feet
x 5 Ft. (1.5m)
x 3 Ft. (1m)
x 1 Ft. (.3m)
x .5 Ft.
(.15m)
E- 8' Vertical Pipe
F- 2' Horizontal Pipe
G- 90 Degree Tee
www.PelletKing.com
SAMPLE INSTALLATION CHART
Type of # of Elbows
Pipe or Feet of
pipe
o
90 2
Elbows /
Tee (A & G)
o
45 1
Elbows (C)
Horizontal 3
(B & F)
Vertical 8
(E)
PIPE SELECTION CHART
30
20
3 or 4"
Diameter
10
0
0 1 2 3
Altitude x 1000 Feet
PAGE 15
Equivalent Total
Feet Equivalent
Feet
x 5 Ft. (1.5m) 10 (3m)
x 3 Ft. (1m) 3 (1m)
x 1 Ft. (.3m) 3 (1m)
x .5 Ft. (.15m) 4 (1.2m)
Total = 20
4 " Diameter Only
4 5 6 7 8 9 10
.
