KVH Industries TracVision A9 Quick Start Manual

How to Turn On the System
TV-Hub
Power Switch
How to Access the Web Interface
IP address (wireless):
172.16.0.1
TV-Hub
IP address (wired direct):
169.254.253.1
How to Select the Master Receiver
©2014 KVH Industries, Inc., All rights reserved. KVH and TracVision are registered trademarks of KVH Industries, Inc. All other trademarks are the property of their respective companies.
TracVision A9 is protected by EU Design #000050877-0001; US patents D493,164; 6,856,300; 6,967,619; 6,977,614; and 7,102,571.
The information in this document is subject to change without notice. No company shall be liable for errors contained herein. 54-1080 Rev. A
TracVision
®

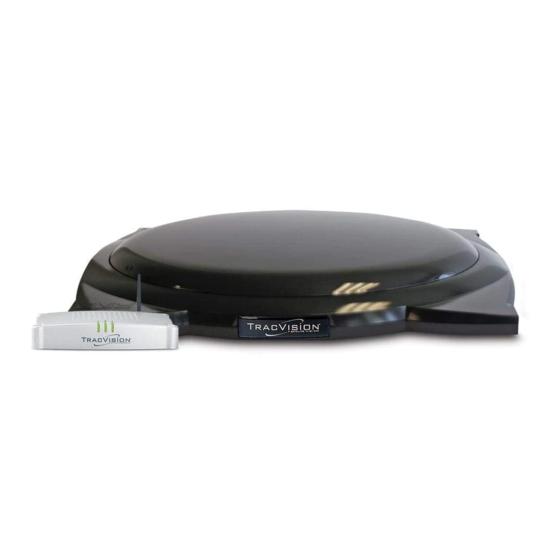

This guide provides basic operation and troubleshooting
information for the TracVision A9 satellite TV antenna system.
For complete operation, setup, and diagnostics information,
refer to the system's comprehensive Help Center, available
on the TV-Hub's web interface. If you need any assistance,
please contact KVH Technical Support.

Technical Support

Phone: +1 401 847-3327
At the rear panel of the TV-Hub, set the power switch to the On
position. The TV-Hub supplies power to the antenna. Wait a
few minutes for system startup.
The antenna requires a clear view of the sky. Objects such as
trees, buildings, and bridges can block satellite signals.
You can access the web interface using any Wi-Fi-enabled
mobile device (such as a smartphone, tablet, or laptop).
1. Select the TVHub-<TV-Hub serial number> network from
your device's Wi-Fi settings to connect to the TV-Hub.
2. Start your web browser and enter http://tvhub.kvh.
If the TV-Hub is connected to an onboard network, you may also
access the web interface over the network by entering the
TV-Hub's IP address in your browser. (You can find the IP
address on the Settings page of the web interface.)
If your system is set up for automatic satellite switching with
multiple receivers, you can select the master receiver on the
Home page of the web interface. The master receiver controls
satellite selection.
If the receiver is equipped with an IP AutoSwitch, you may also
press the button on the IP AutoSwitch to make it the master.
A9 Quick Start Guide
Email: support@kvh.com
