Installer:
Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
WARNING: If the information in these instructions
are not followed exactly, a fire or explosion may
result causing property damage, personal injury or
loss of life.
— Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
— WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
Do not touch any electrical switch; do not use
any phone in your building.
Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
If you cannot reach your gas supplier, call the
fire department.
— Installation and service must be performed by a
qualified installer, service agency or the gas sup-
plier.

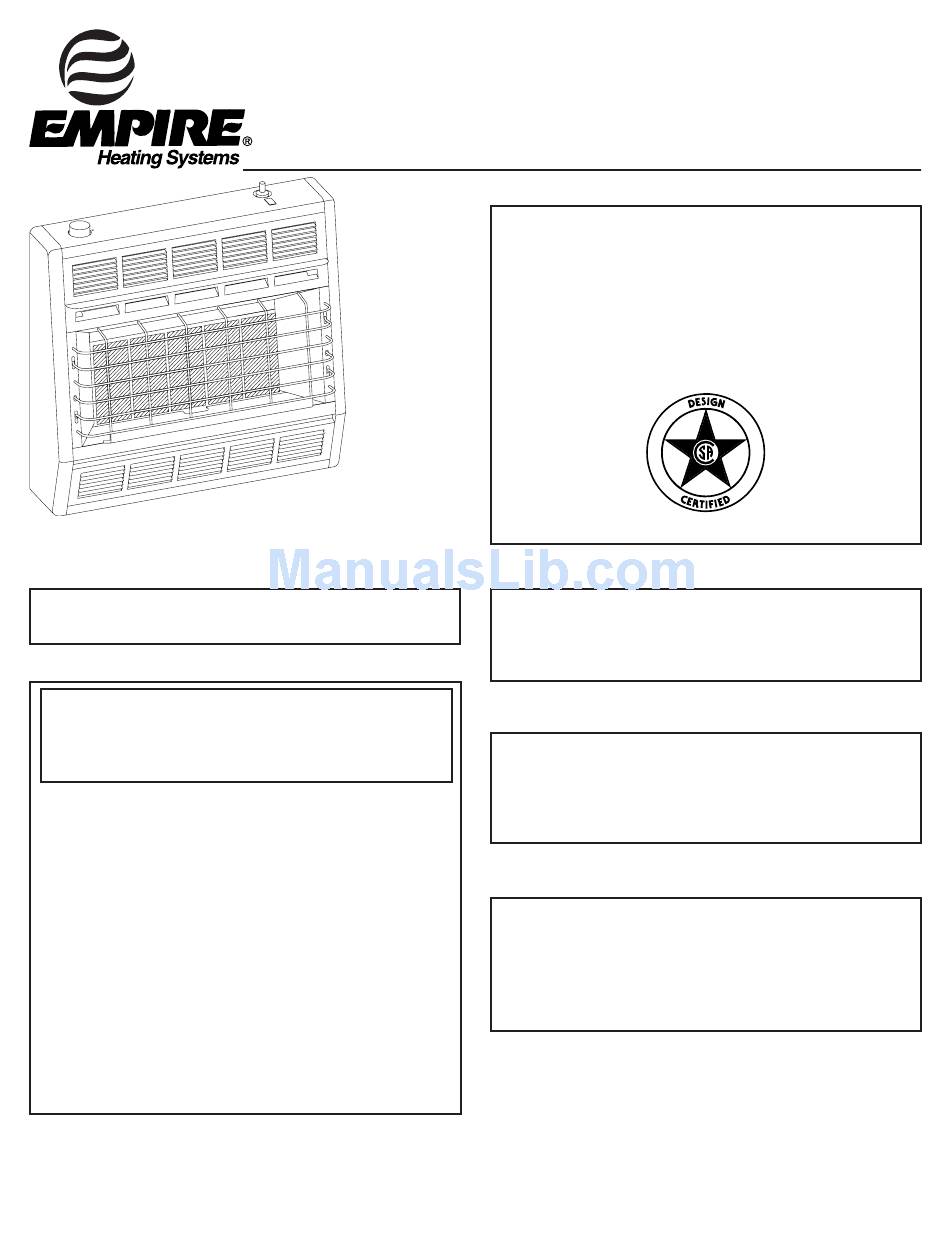

INSTALLATION INSTRUCTIONS

OWNER'S MANUAL
SR-30T SHOWN
AND
UNVENTED
ROOM HEATER
MODELS
SR-10T-3
SR-18T-3
This is an unvented gas-fired heater. It uses air (oxy-
gen) from the room in which it is installed. Provisions
for adequate combustion and ventilation air must be
provided. Refer to page 6.
WARNING: If not installed, operated and maintained
in accordance with the manufacturer's instructions,
this product could expose you to substances in fuel
or from fuel combustion which can cause death or
serious illness.
WATER VAPOR: A BY-PRODUCT OF UNVENTED ROOM
HEATERS
Water vapor is a by-product of gas combustion. An
unvented room heater produces approximately one (1)
ounce (30ml) of water for every 1,000 BTU's (.3KW's)
of gas input per hour. Refer to page 6.
SR-30T-3
Page 1

Advertisement

Chapters

Table of Contents
loading

Summary of Contents for Empire Heating Systems SR-10T-3

  • Page 1: Installation Instructions

    INSTALLATION INSTRUCTIONS OWNER’S MANUAL UNVENTED ROOM HEATER MODELS SR-10T-3 SR-18T-3 SR-30T-3 SR-30T SHOWN Installer: Leave this manual with the appliance. This is an unvented gas-fired heater. It uses air (oxy- Consumer: Retain this manual for future reference. gen) from the room in which it is installed. Provisions for adequate combustion and ventilation air must be provided.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS SECTION PAGE Important Safety Information .................3 Safety Information for Users of LP Gas ............4 Introduction ....................5 Specifications ....................5 Water Vapor: A By-Product of Unvented Room Heaters .......6 Provisions for Adequate Combustion and Ventilation Air ......6 Gas Supply ....................7 SR-10T Clearances ..................8 SR-18T Clearances ..................9 SR-30T Clearances ..................9...
  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION THIS IS A HEATING APPLIANCE DO NOT OPERATE THIS APPLIANCE WITHOUT FRONT PANEL INSTALLED. • Due to high surface temperatures, keep children, clothing DANGER: Indicates a hazardous situation which, if not and furniture away. avoided, will result in death or serious injury. •...
  • Page 4: Safety Information For Users Of Lp Gas

    SAFETY INFORMATION FOR USERS OF LP-GAS Propane (LP-Gas) is a flammable gas which can cause fires with the members of your household. Someday when there and explosions. In its natural state, propane is odorless and may not be a minute to lose, everyone’s safety will depend colorless.
  • Page 5: Introduction

    INTRODUCTION Instructions to Installer Qualified Installing Agency 1. Installer must leave instruction manual with owner after Installation and replacement of gas piping, gas utilization equipment installation. or accessories and repair and servicing of equipment shall be 2. Installer must have owner fill out and mail warranty card supplied performed only by a qualified agency.
  • Page 6: Water Vapor: A By-Product Of Unvented Room Heaters

    WATER VAPOR: A BY-PRODUCT OF UNVENTED ROOM HEATERS Water vapor is a by-product of gas combustion. An unvented room The following steps will help insure that water vapor does not heater produces approximately one (1) ounce (30ml) of water for become a problem.
  • Page 7: Gas Supply

    GAS SUPPLY A gas valve and ground joint union should be installed in the gas The gas line can be routed either through the floor or wall. The gas line upstream of the gas control to aid in servicing. It is required by line opening should be made at this time.
  • Page 8: Sr-10T Clearances

    SR-10T CLEARANCES When facing the front of the appliance the following minimum clearances to combustible construction must be maintained. Left side 6 inches (152mm). Right side 6 inches (152mm). Do not install in alcove or closet. Rear wall 0 inches (0mm). Ceiling 24 inches (610mm). Minimum vertical clearance from a projection above the appliance (shelves, window sills, etc.) 14 inches (356mm).
  • Page 9: Sr-18T Clearances

    SR-18T CLEARANCES When facing the front of the appliance the following minimum clearances to combustible construction must be maintained. Left side 6 inches (152mm). Right side 6 inches (152mm). Do not install in alcove or closet. Rear wall 0 inches (0mm). Ceiling 36 inches (914mm). Minimum vertical clearance from a projection above the appliance (shelves, window sills, etc.) 36 inches (914mm).
  • Page 10: Wall Mount Installation

    WALL MOUNT INSTALLATION Refer to Figures 7, 8 and 9 for measurements in order to locate (4) mounting holes on wall. Figures 7, 8 and 9 are the front views (613mm) of the heaters. (511mm) (51) (51) 1. Remove lower louver from casing assembly (2 screws). 2.
  • Page 11: Optional Floor Stand Installation

    4. Mount heater onto the (4) screwheads and complete tightening the screwheads to the plastic expansion anchors. Attention! Use the following steps to properly align the upper louver and the reflector with the heat shield. a. When replacing upper louver, be sure the bottom lip of upper louver goes behind the heat shield.
  • Page 12: For Your Safety Read Before Lighting

    LIGHTING INSTRUCTIONS FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. This appliance has a pilot which must be lighted by hand. C.
  • Page 13: Main Burner Flame Characteristics

    MAIN BURNER FLAME CHARACTERISTICS SR-10T, SR-18T and SR-30T Main Burner Flame (Figure12) Disconnect supply tubing from orifice holder(s). The main burner flame will have a red-orange glow over the surface 10. Remove orifice holder from venturi of main burner assembly of the ceramic plaques.
  • Page 14: Pilot Flame Characteristics

    PILOT FLAME CHARACTERISTICS The correct flame will be blue and will extend beyond the thermo- Blow air pressure through the holes indicated by the arrows. couple. The flame will surround the thermocouple just below the This will blow our foreign materials such as dust, lint and spider tip.
  • Page 15: Appliance Maintenance

    APPLIANCE MAINTENANCE 10. Remove gas valve bracket from casing assembly (4 screws to Removing Pilot/Thermocouple From Main Burner Assembly be removed are located on casing assembly back). Attention: The thermocouple CAN NOT be replaced as an individual 11. Remove hydraulic thermostat bulb from thermostat bulb clip item.
  • Page 16: Troubleshooting

    TROUBLESHOOTING 1. Spark electrode does not produce spark. thermocouple. a. Spark electrode broken - replace. d. Pilot flame not surrounding thermocouple - clean pilot, see b. Ignitor wire may not be attached to spark electrode - Page 14. attach. e. Inlet gas pressure too low, contact gas supplier. c.
  • Page 17 PARTS LIST SR-18T SR-30T PLEASE NOTE: When ordering parts, it is very important that part number and description of part coincide. INDEX INDEX PART PART NO. DESCRIPTION DESCRIPTION 13348 CASING SIDE ASSEMBLY - LEFT 13348 CASING SIDE ASSEMBLY - LEFT SR-090 CASING BACK SR-041...
  • Page 18 PARTS VIEW SR-10T Page 18 16941-8-0314...
  • Page 19 PARTS VIEW SR-18T 16941-8-0314 Page 19...
  • Page 20 PARTS VIEW SR-30T Page 20 16941-8-0314...
  • Page 21: Optional Blower Installation Instructions

    OPTIONAL BLOWER INSTALLATION INSTRUCTIONS SRB-18T and SRB-30T for Unvented Room Heaters SR-18T and SR-30T INSTALLING OPTIONAL BLOWER SRB-18T OR SRB-30T 12. With the heater standing upright, position the air discharge If heater is installed onto the wall, in order to install the optional opening of the blower housing downward.
  • Page 22: Optional Blower Installation Instructions

    OPTIONAL BLOWER INSTALLATION INSTRUCTIONS (continued) Wiring The appliance, when installed, must be electrically grounded in ac- cordance with local codes or, in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70, if an external electrical source is utilized. This appliance is equipped with a three-prong [ground- ing] plug for your protection against shock hazard and should be plugged directly into a properly grounded three-prong receptacle.
  • Page 23: Master Parts Distributor List

    MASTER PARTS DISTRIBUTOR LIST To Order Parts Under Warranty, please contact your local Empire dealer. See the dealer locator at www.empirecomfort. com. To provide warranty service, your dealer will need your name and address, purchase date and serial number, and the nature of the problem with the unit.
  • Page 24: Warranty

    WARRANTY Empire Comfort Systems Inc. warranties this space heating product to be free from defects at the time of purchase and for the periods specified below. Space heating products must be installed by a qualified technician and must be maintained and operated safely, in accordance with the instructions in the owner’s manual.
  • Page 25 INSTRUCCIONES DE INSTALACIÓN MANUAL DEL PROPIETARIO CALENTADOR DE GAS PARA HABITACIONES MODELOS SR-10T-3 SR-18T-3 SR-30T-3 SR-30T SE MUESTRA Instalador: Dele estas instrucciones al cliente. Este aparato puede instalarse en una casa móvil per- Cliente: Mantenga estas instrucciones como manentemente ubicada después de la venta, donde referencia un futuro.
  • Page 26 TABLA DE CONTENIDO SECCIÓN PÁGINA IMPORTANTE INFORMACIÓN DE SECURIDAD ................3 INFORMACIÓN DE SECURIDAD PARA USUARIOS DE GAS PROPANO (LP) ......4 INTRODUCCIÓN ..........................5 ESPECIFICACIONES ........................5 VAPOR DE AGUA: UN SUBPRODUCTO DE CALENTADORES DE CUARTO SIN EMISIÓN ..6 PROVISIONES PARA COMBUSTIÓN Y VENTILACIÓN DE AIRE ADECUADOS ......
  • Page 27: Importante Información De Securidad

    IMPORTANTE INFORMACIÓN DE SEGURIDAD ESTE ES UN APARATO DE CALEFACCIÓN NO OPERE ESTE APARATO SIN EL PANEL FRONTAL INSTALADO. • Un calentador de habitaciones sin ventalación externa • La instalación y reparación deberá ser hecha por una que tenga una capacidad mayor de 10,000 Btu por hora persona de servicio capacitada.
  • Page 28: Información De Securidad Para Usuarios De Gas Propano (Lp)

    INFORMACIÓN DE SEGURIDAD PARA USUARIOS DE GAS PROPANO (LP) Gas propano (LP-GAS) es un gas inflamable el cual puede cau- ego revíselas de nuevo punto por punto con los miembros de sar fuegos y explosiones. En su estado natural , el propano (LP) su casa.
  • Page 29: Introducción

    INTRODUCCIÓN Instrucciones al Instalador Instalaciones en Pozos de Gas 1. El instalador debe dejar el manual de instrucciones con el propi- Algunas empresas de gas natural usan gas de pozos. Esto puede etario después de la instalación. afectar la capacidad de Btu o Kcal del aparato. Comuníquese con la compañía de gas para que averigue el valor calorífico del gas.
  • Page 30: Vapor De Agua: Un Subproducto De Calentadores De Cuarto Sin Emisión

    VAPOR DE AGUA: UN SUBPRODUCTO DE CALENTADORES DE CUARTO SIN EMISIÓN El vapor de agua es un subproducto de la combustión de gas. Un Los siguientes pasos le ayudarán a asegurarse de que el vapor de calentador de habitación sin ventilación externa produce una (1) agua no se convierta en problema.
  • Page 31: Abastecimiento De Gas

    ABASTECIMIENTO DE GAS La línea de gas puede entrar al aparato ya sea a través del piso o Una unión para válvula de gas y para la conexión de tierra deben a través de la pared. El agujero para la línea de gas debe hacerse de instalarse en la línea de gas contracorriente de la válvula para en este momento.
  • Page 32: Espacios Libres Del Sr-10T

    ESPACIOS LIBRES DEL SR-10T Cuando esté de frente al aparato los siguientes espacios libres TECHO mínimos a la construcción combustible deben mantenerse. Lado izquierdo 6 pulgadas (152mm). Lado derecho 6 pulgadas 12” MAX ANTEPECHO VENTANA O REPISA (152mm). (305mm) No instalarlo en un closet o armario. Pared trasera 0 pulgadas (0mm).
  • Page 33: Espacios Libres Del Sr-18T

    ESPACIOS LIBRES DEL SR-18T Cuando esté de frente al aparato los siguientes espacios libres TECHO mínimos a la construcción combustible deben mantenerse. Lado izquierdo 6 pulgadas (152mm). Lado derecho 6 pulgadas (152mm). PARED No instalarlo en un closet o armario. LATERAL Pared trasera 0 pulgadas (0mm).
  • Page 34: Installación Para Montaje En Pared

    INSTALACIÓN PARA MONTAJE EN PARED Para dimensiones, refiérase a las Figuras 7, 8 y 9, a fin de ubicar 24 1/8” orificios en la pared. Las Figuras 7, 8 y 9 indica la vista frontal del (613mm) 2’ calentador 2’ 20 1/8”...
  • Page 35: Installación De Base De Piso Opcional

    INSTALACIÓN PARA MONTAJE EN PARED Montar el calentador en los (4) tornillos y apriételos completamente a las anclas plásticas de expansión. Atención: Siga los siguientes pasos para alinear correcta- mente la persiana superior y el reflector con el protector de PASO 1 calor.
  • Page 36: Instrucciones De Encendido

    INSTRUCCIONES DE ENCENDIDO PARA SU SEGURIDAD LEA ANTES DE ENCENDER ADVERTENCIA: Si usted no sigue estas instrucciones con exactitud, puede provocar incendio o ex- plosión, causando daños a la propiedad, lesión personal o pérdida de vida. A. Este aparato tiene que encenderse manualmente. Cuando •...
  • Page 37: Características De La Llama De Quemador Principal

    CARACTERÍSTICAS DE LA LLAMA DEL QUEMADOR PRINCIPAL SR-10T, SR-18T y SR-30T La Flama del Quemador inyector(es). (Figura11) 10. Remover el soporte del inyector del quemador (1 tornillo para cada soporte de inyector). La flama del quemador tendrá un color rojo – anaranjado resp- 11.
  • Page 38: Características De La Llama Del Piloto

    CARACTERÍSTICAS DE LA LLAMA DEL PILOTO La flama correcta será azúl y se extenderá 1/4” (6mm) más allá 2. Aplicar aire a presión a través de los orificios del piloto indica- del termopar. La flama se ubicará alrededor del termopar, un poco dos por las flechas.
  • Page 39: Mantenimiento Del Aparato

    MANTENIMIENTO DEL APARATO Para Remover el Piloto/Termopar Del Ensamblaje Principal Si el calentador está montado en la pared, desconectar la del Quemador línea de abastecimiento de gas del regulador de entrada. Atención: El termopar NO PUEDE cambiarse por si sólo. Ud. Remover el calentador de la pared.
  • Page 40: Información De Reparación Para Personas Calificadas De Servicio

    INFORMACIÓN DE REPARACIÓN PARA PERSONAS CALIFICADAS DE SERVICIO El electrodo no produce chispa. termopar. Electrodo roto-reemplace. La flama del piloto no rodea el termopar-limpie el piloto, ver Pág. Alambre del encendedor puede no estar conectado- conéctelo. Alambre del encendedor dañado-reemplace Presión de entrada de gas demasiado baja, llame al suministrador Encendedor piezo defectuoso-reemplace.
  • Page 41 LISTA DE PARTES SR-18T SR-30T coincidan. POR FAVOR TOME NOTA: Al ordenar partes, es muy importante que el número de parte y la descripción de la misma PART PART INDEX NO. DESCRIPTION INDEX NO. DESCRIPTION 13348 Gabinete Lateral Izquierdo 13348 Gabinete Lateral Izquierdo SR-090 Gabinete Trasero...
  • Page 42 VISTA DE PARTES SR-10T Page 18 16941-6-0910...
  • Page 43 VISTA DE PARTES SR-18T 16941-6-0910 Page 19...
  • Page 44 VISTA DE PARTES SR-30T Page 20 16941-6-0910...
  • Page 45: Ventilador Opcional Instrucciones De Instalación

    VENTILADOR OPCIONAL INSTRUCCIONES DE INSTALACIÓN SRB-18T y SRB-30T para Calentadores de Habitación SR-18T y SR-30T INSTALACIÓN VENTILADOR OPCIONAL 12. Estando el calentador en posición vertical, colocar la apertura de SRB-18T O SRB-30T salida de aire de la cubierta del ventilador hacia abajo. Ubicar la Si el calentador se instala en la pared, debe ser removido a fin de pestaña inferior de la cubierta del ventilador sobre la orilla supe- instalar el ventilador opcional.
  • Page 46 VENTILADOR OPCIONAL (continua) Cables Aislante Negro Acanalado El aparato debe estar conectado a tierra de acuerdo al .National Elec- Aislante Negro Liso trical Code. ANSI/NFPA 70. Este Ventilador viene equipado con un enchufe aislado de tierra con tres puntas para su protección con- Verde tra sacudidas peligrosas y debe conectarse directamente a un Cable Entrada -...
  • Page 47: Notas De Servicio

    NOTAS DE SERVICIO 16941-6-0910 Page 23...
  • Page 48 GARANTÍA Empire Comfort Systems Inc. garantiza que este producto de calefacción ambiental se encuentra libre de defectos al momento de la compra y por los períodos que se especifican a continuación. Un técnico calificado debe instalar los productos de calefacción ambi- ental y estos se deben mantener y operar de manera segura, según las instrucciones que aparecen en el manual del propietario.
