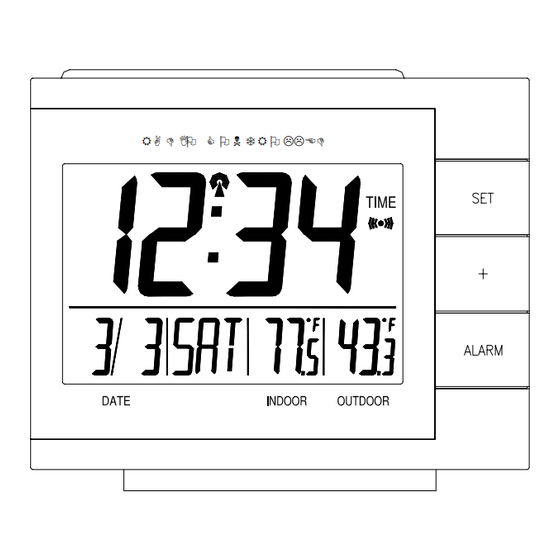

- Page 1 WS-8056U 433 MHz Radio Controlled Temperature Alarm Instruction Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Topic Inventory of Contents/ Additional Equipment About WWVB Quick Set-Up Guide Detailed Set-Up Guide Battery Installation Program Mode Function Buttons Time Zone Setting DST (Daylight Saving Time) Setting Language Selection Time Setting Calendar Setting 12/24-Hour Setting Selecting °F or °C Features &... -
Page 3: Inventory Of Contents/ Additional Equipment
INVENTORY OF CONTENTS 1) WS-8056U 2) TX6U remote temperature transmitter 3) Instruction manual and warranty card. ADDITIONAL EQUIPMENT (not included) 1) Two fresh 1.5V AA batteries. 2) Two fresh 1.5V AA batteries. 3) Three wall-hanging screws. 4) Appropriate screwdriver for screws. -
Page 4: Quick Set-Up Guide
QUICK SET-UP GUIDE Hint: Use good quality Alkaline Batteries and avoid rechargeable batteries. 1. Have the temperature clock and remote temperature sensor 3 to 5 apart. 2. Batteries should be out of both units for 10 minutes. 3. Place the batteries into the remote temperature sensor first then into the temperature clock. -
Page 5: Detailed Set-Up Guide
DETAILED SET-UP GUIDE BATTERY INSTALLATION Note: To avoid start-up problems make sure that the batteries do not spring free. A) REMOTE TEMPERATURE SENSOR 1) Remove the battery cover. Place your thumb over the two air-vent slots on the face of the remote temperature sensor, push down gently, and slide battery cover down and off. -
Page 6: Function Buttons
II) PROGRAM MODE To enter the program mode hold down the “SET” button for 2 seconds, until “-5EST” flashes in the date LCD. The program mode is laid out in a manner that allows you to program each function separately, or you can follow the instructions entirely to program the temperature alarm. -
Page 7: Dst (Daylight Saving Time) Setting
C) DST (DAYLIGHT SAVING TIME) SETTING Note: The DST default is “On”, meaning that the WWVB will automatically change the time according to Daylight Saving Time in the spring and fall. For areas that do not recognize DST changes (Arizona and parts of Indiana) turn the DST “OFF”. -
Page 8: Calendar Setting
F) CALENDAR SETTING Note: When the WWVB signal is found, that date will over-ride the manually set date. 1) Hold down the “SET” button for 2 seconds (the selected time zone will flash), press and release the “SET” button 5 more times until the default year “00”... -
Page 9: Features & Operations
III) FEATURES & OPERATIONS A) CHANGING DISPLAY MODE (DAY, SECONDS, AND TEMPERATURE) There are three possible display modes to view the day, seconds, and temperature. The month&date/weekday /indoor temperature/remote temperature is the default. To change the display: 1) Press and release the “+” button. 2) The display should now show the month&date/seconds/indoor temperature/remote temperature 3) Press and release the “+”... -
Page 10: The Alarm
B) THE ALARM 1) SETTING THE ALARM Note: The duration of the alarm is 85 seconds. After each of the first two 25 second periods, the rate of the alarm increases. (a) Hold down the “ALARM” button for 5 seconds. The “TIME” icon to the right of the minutes (in the time LCD) shifts to “ALARM”... -
Page 11: Indoor Temperature
C) INDOOR TEMPERATURE The indoor temperature appears on the right side of the date LCD. The temperature is checked every 10 seconds and updated whenever there is a change. REMOTE TEMPERATURE The remote temperature will be shown on the right side of the lower LCD screen. -
Page 12: Maintenance & Care
Immediately remove all low powered batteries to avoid leakage and damage. Replace with new batteries only, and of recommended size. • Opening the casings invalidates the warranty. Do not try to repair the units. Contact La Crosse Technology for Repairs. -
Page 13: Troubleshooting
3) Interference from an outside source (cordless telephone, etc.) 4) Contact La Crosse Technology. Note: For any questions not answered, contact La Crosse Technology with the contact information found at the end of this instructional manual. alarm in the general direction of Ft. Collins, Colorado. -
Page 14: Specifications
SPECIFICATIONS FOR WS-8056U Temperature: Measuring range: Checking intervals: Power source: Battery type: Battery life: Dimensions (L x W x H): Temperature alarm Remote temperature sensor 32°F to 122°F with 0.2°F resolution (indoor) -21.8°F to 140°F with 0.2°F resolution (outdoor) (0°C to 50°C with 0.1°C resolution) Every 10 seconds indoor, 3 times in 10 minutes for remote temperature. -
Page 15: Warranty Information
La Crosse Technology immediately upon discovery of any defects covered by this warranty. Before sending the temperature alarm in for repairs, contact La Crosse Technology. The temperature alarm will be repaired or replaced with the same or similar model. This warranty does not cover any defects resulting from improper use, unauthorized repairs, faulty batteries, or the temperature alarms inability to receive a signal due to any source of interference. - Page 16 FCC ID: OMO-01RX (receiver) THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1. THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND 2. THIS DEVICE MUST ACCEPT INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
