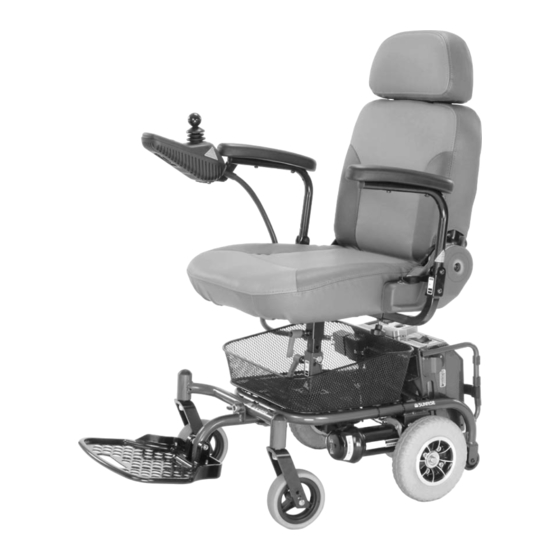

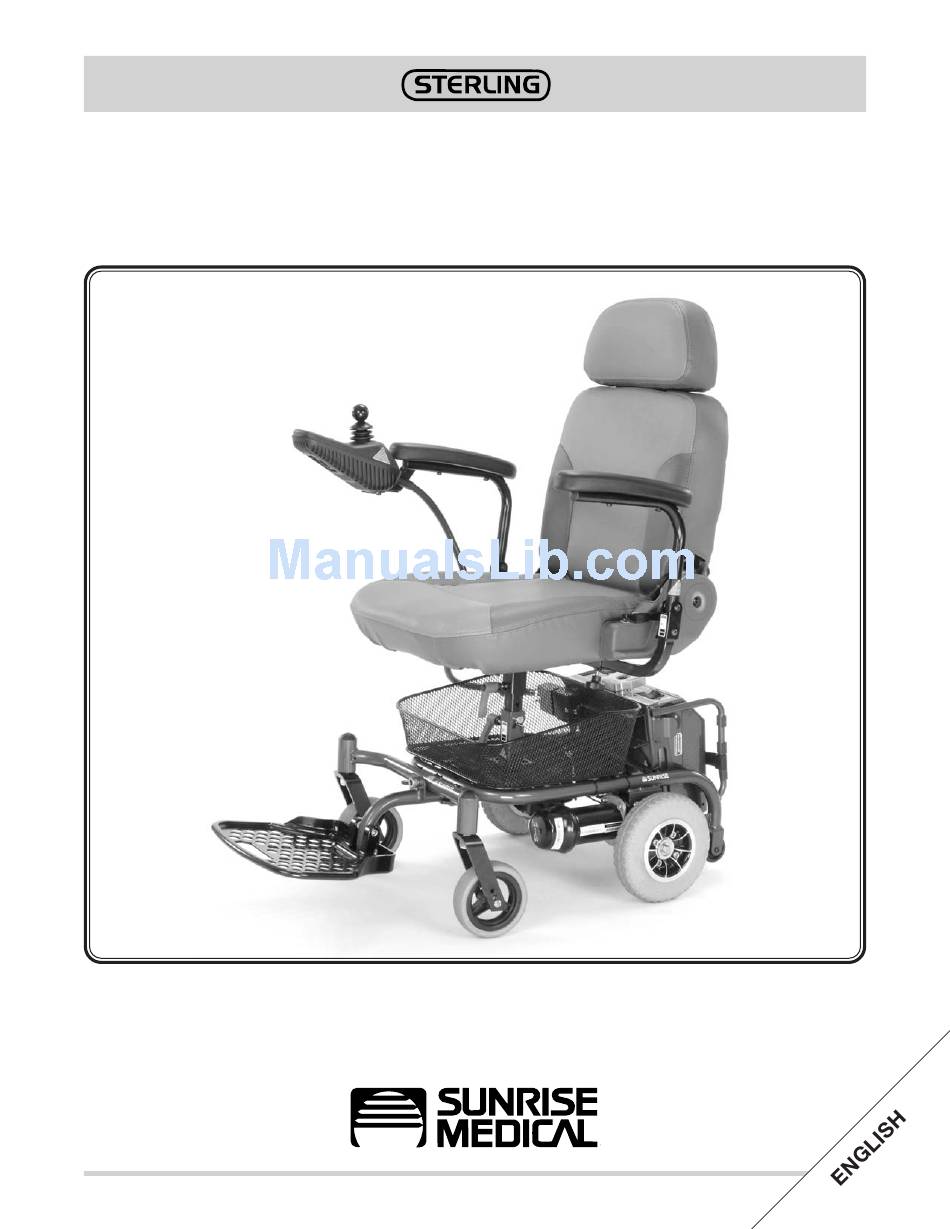

- Page 1 Ruby - Ruby Plus Owner’s Manual...
-
Page 2: Introduction
I . I n t r o d u c t i o n I. INTRODUCTION Thank you for choosing a Sunrise Medical wheelchair. Before using your wheelchair please read this manual carefully. It will provide you with all the information you will require. However, if you have any queries about the use, maintenance or safety of your wheelchair please contact your local Sunrise Medical Service Agent. -
Page 3: Table Of Contents
I I . T a b l e o f C o n t e n t s II. TABLE OF CONTENTS I. INTRODUCTION ................2 II. TABLE OF CONTENTS ............... 3 III. YOUR CHAIR AND ITS PARTS............5 IV. NOTICE - READ BEFORE USE............. 6 V. - Page 4 I I . T a b l e o f C o n t e n t s J. Upholstery Fabric ................. 18 K Wiring ..................18 VIII. TIPS FOR ATTENDANTS ..............19 A.To Climb a Curb or Single Step ............19 B.To Descend a Curb or Single Step ...........
-
Page 5: Your Chair And Its Parts
19 lbs (seat) Battery Charger Armrests 22 lbs (battery pack) off board 1.5 AMP Flip back 10" arm pad Ruby Plus– 55 lbs (base), Seats, Upholstery and Style 22 lbs (seat) Ruby– Fish-on 22 lbs (battery pack) Ruby Plus– High back... -
Page 6: Notice- Read Before Use
I V . N o t i c e – R e a d B e f o r e U s e IV. NOTICE– READ BEFORE USE A. CHOOSE THE RIGHT CHAIR & SAFETY OPTIONS Sunrise provides a choice of many power wheelchair styles, sizes and adjustments to meet the needs of the rider. -
Page 7: Emi (Electromagnetic Interference)
V . E M I ( E l e c t r o m a g n e t i c I n t e r f e r e n c e ) V. EMI (ELECTROMAGNETIC INTERFERENCE) Heed all warnings to reduce the risk of unintended brake release or chair movement: Beware of the danger from hand-held transceivers. -
Page 8: D.distance From The Source
V . E M I ( E l e c t r o m a g n e t i c I n t e r f e r e n c e ) D. DISTANCE FROM THE SOURCE EM energy rapidly becomes more intense as you get closer to the source. For this reason, EMI from hand-held devices is of special concern. -
Page 9: General Warnings
V I . G e n e r a l W a r n i n g s VI. GENERAL WARNINGS Heed all warnings in this section. If you fail to do so a fall, tip-over or loss of control may occur and cause severe injury to you or others. A. -
Page 10: Emi
V I . G e n e r a l W a r n i n g s E. EMI Read Section V to learn about EMI. To reduce the risk of unintended brake release or chair movement: 1. Never turn on or use a hand-held transceiver while power to your chair is on. Use extra care if you believe that such a device may be in use near your chair. -
Page 11: Terrain
V I . G e n e r a l W a r n i n g s 2. Proceed slowly and use extra care if you must operate your chair on a wet or slick surface. • Do so only if you are sure it is safe. •... -
Page 12: N.transfers
V I . G e n e r a l W a r n i n g s To Reduce The Risk Of A Fall Or Tip-Over: 1. Consult your supplier for information on modifications authorized by Sunrise before you modify or adjust this chair. NOTE–... -
Page 13: Dressing Or Changing Clothes
V I . G e n e r a l W a r n i n g s 3. Turn off all power to your chair. If you fail to do so, you may touch the joystick and cause your chair to move when you do not expect it. 4. -
Page 14: T To Reduce The Risk Of Falls, Tip-Over Or Loss Of Control
V I . G e n e r a l W a r n i n g s T. TO REDUCE THE RISK OF A FALL, TIP-OVER OR LOSS OF CONTROL 1. Never use your chair on a slope unless you are sure you can do so without losing traction. -
Page 15: Stairs
V I . G e n e r a l W a r n i n g s 2. To prevent a fall or tip-over, use wheelchair access ramps or have someone help you. 3. If you must climb or descend a curb or step alone do so at your own risk and use extreme care. -
Page 16: Warnings: Components & Options
C. CUSHIONS 1. Sterling seats are designed for comfort, not specifically for the relief of pressure. 2. If you suffer from pressure sores, or if you are at risk that they will occur, you may need a special seat system such as can be provided by the Seat Frame, or a device to control your posture. -
Page 17: Motor Locks
V I I . W a r n i n g s : C o m p o n e n t s & O p t i o n s F. MOTOR LOCKS 1. Do not engage or disengage motor locks unless power to the chair is off. 2. -
Page 18: Upholstery Fabric
V I I . W a r n i n g s : C o m p o n e n t s & O p t i o n s J. UPHOLSTERY FABRIC 1. Replace worn or torn fabric of the seat as soon as you can. If you fail to do so, the seat may fail and cause you to fall. -
Page 19: Tips For Attendants
V I I I . T i p s F o r A t t e n d a n t s VIII. TIPS FOR ATTENDANTS Persons who help a rider do one of the following tasks should review and heed the warnings “Notice to Attendants”... -
Page 20: Set Up, Adjustment & Use
I X . S e t - U p , A d j u s t m e n t & U s e IX. SET-UP, ADJUSTMENT & USE NOTES: 1. Work Surface For Set-Up: Use a flat surface, such as a table, to assemble, adjust and check your chair. This makes the steps easier and helps ensure a correct set-up. -
Page 21: A.battery Case Removal
I X . S e t - U p , A d j u s t m e n t & U s e A. BATTERY CASE REMOVAL (Figures 1 & 2) To remove the batteries for transporting or servicing: 1. -
Page 22: Backrest
I X . S e t - U p , A d j u s t m e n t & U s e E. BACKREST A backrest angle-adjustment is standard on the High Back Seat. Adjustment for the High Back Contour Seat (Figure 6) a. -
Page 23: Operating Guide
X . O p e r a t i n g G u i d e X. OPERATING GUIDE A. PERFORMANCE CONTROL SETTINGS 1. It is vital to match control settings to your level of function and ability. 2. Consult your health care professional and your supplier to select the best control set- tings for you. -
Page 24: Motor Locks
X . O p e r a t i n g G u i d e 4. Horn (F) 5. Joystick (G) The joystick controls the direction and speed of your chair. Turn the chair on and move the joystick in the direction you want to go. •... -
Page 25: Batteries
X I . B a t t e r i e s XI. BATTERIES A. INTRODUCTION 1. Notes: • Batteries supply the power for your chair. They contain a finite amount of energy and have limits on how long they can store and supply energy. •... -
Page 26: Acid Burns
X I . B a t t e r i e s C. ACID BURNS (UNSEALED WET CELL BATTERIES) Use extreme care not to spill acid when you handle wet cell batteries. Keep batteries upright. Avoid contact of acid with bare skin or clothing. Always wear rubber gloves and safety glasses when you handle batteries. -
Page 27: Disposing Of Batteries
X I . B a t t e r i e s F. DISPOSING OF BATTERIES 1. All batteries once they have reached the end of their useful life are deemed to be hazardous waste. 2. For further information on handling and recycling contact your local recycling authority. -
Page 28: Maintenance
X I I . M a i n t e n a n c e XII. MAINTENANCE A. NOTES 1. Proper maintenance will improve performance and extend the useful life of your chair. 2. Clean your chair regularly. This will help you find loose or worn parts and will make your chair easier to use. -
Page 29: To Repair Or Replace A Tire
X I I . M a i n t e n a n c e E. TO REPAIR OR REPLACE A TIRE Residual air pressure in tires can cause severe injury. Make sure you release all air in tire before attempting to service or repair tires. 8"... -
Page 30: Technical Specifications
X I I I . T e c h n i c a l S p e c i f i c a t i o n s XIII. TECHNICAL SPECIFICATIONS RUBY RUBY PLUS Colour Candy Red Candy Red Seat type... -
Page 31: Guarantee
X I V . G u a r a n t e e XIV. GUARANTEE A. YOUR GUARANTEE The guarantee form is included in the Sunrise Pack, please fill in the relevant details and return to us to register your entitlement. THIS IN NO WAY AFFECTS YOUR STATUTORY RIGHTS. - Page 32 Sunrise Medical, Inc. Sunrise Medical Canada, Inc. Sunrise Medical Ltd. 7477 East Dry Creek Pkwy. 237 Romina Drive, Unit 3 Sunrise Business Park Longmont, CO 80503 Concord, Ontario L4K 4V3 High Street CANADA Wollaston, West Midlands DY8 4PS 800-333-4000 905-660-2459 ENGLAND 800-563-3390 44-138-444-6688...
