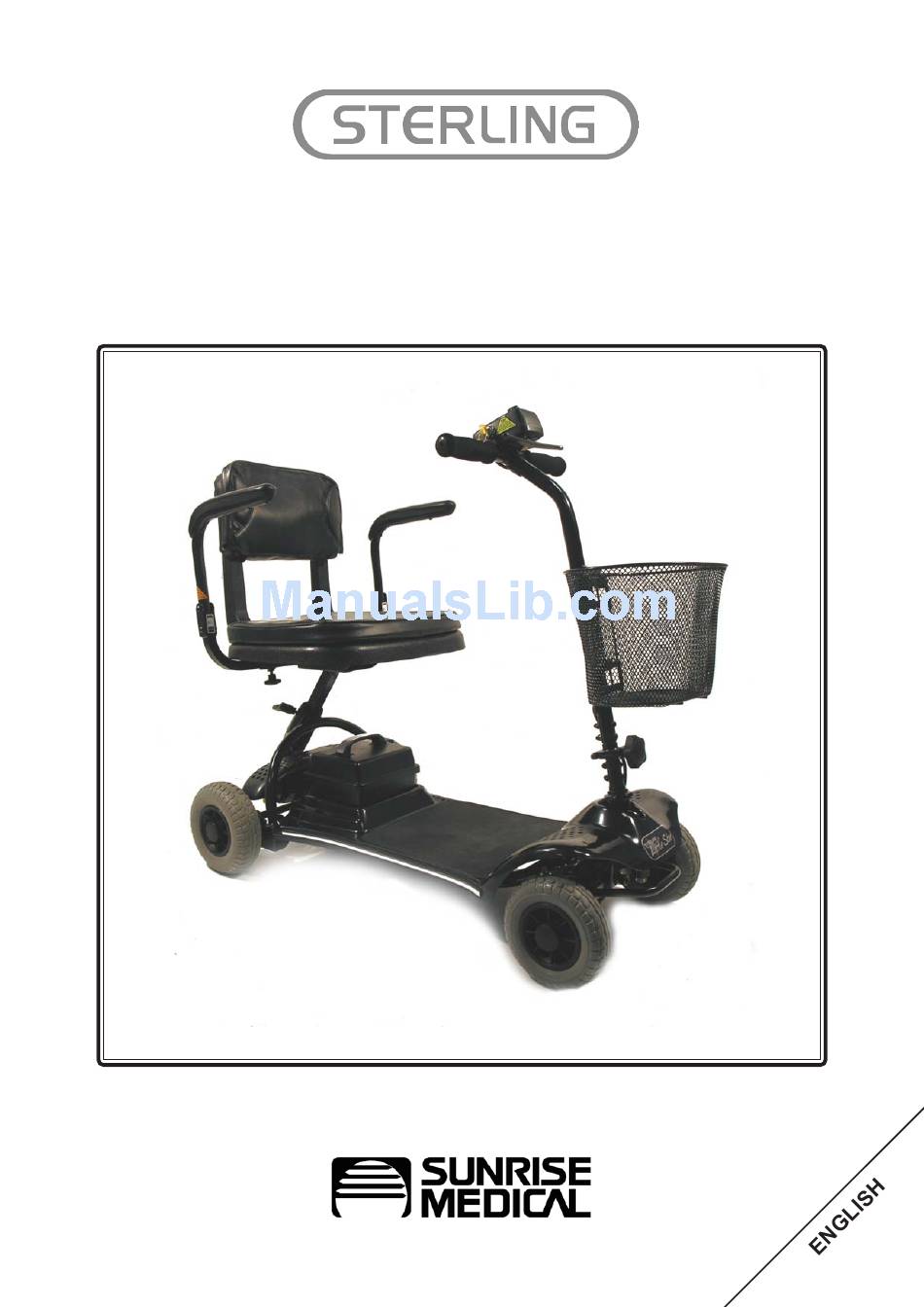

- Page 1 Little Star 4 Wheel Scooter Owner’s Manual...
- Page 2 Iss 1...
- Page 3 Contents Introduction Guarantee How to use this manual General warnings EMC (EMI) warnings Features Safety warnings & user guidance Tiller control functions Operating your scooter Guidance for safe operation & use Batteries & charging Routine maintenance Specifications Troubleshooting page 1 page 2 page 3 page 4 - 8...
- Page 4 However, if you have any queries about the use, maintenance or safety of your scooter please contact your local Sunrise Medical Service Agent. If you have any other questions please write to the address below.
-
Page 5: Your Guarantee
Medical Limited recommend that you do not undertake maintenance tasks other than those explained in this manual. Your local authorised Sunrise Medical service agent is fully trained by Sunrise Medical to carry out detailed maintenance as and when required. Use only genuine Sunrise Medical replacement parts. - Page 6 How to use this manual We at Sunrise Medical want you to get the best out of your scooter. This Owner’s Manual will familiarise you with the scooter and its features. It contains guidance on everyday usage and general care in addition to information on the high quality standards which we adhere to and details about the warranty.
- Page 7 Serious injury can occur in the event of a fall from a mobility scooter. Sunrise Medical DO NOT RECOMMEND that a scooter user is transported in any type of vehicle when seated on the scooter.
-
Page 8: General Warnings
DO NOT make sharp turns in forward or reverse at high speeds. DO NOT lift the mobility scooter by it’s Tiller, Seat, Body Panels or by any detachable assemblies. Always disassemble the scooter into its stowable parts and then lift each assembly one at a time. - Page 9 GENERAL WARNINGS PERSONAL & OPERATIONAL GUIDELINES DO NOT operate the mobility scooter without first checking that it is safe to do so. Always be aware of your surroundings. DO NOT attempt to use your mobility scooter without first checking that all wiring harnesses are connected and all detachable parts/assemblies are correctly aligned and firmly fixed in place.
- Page 10 GENERAL WARNINGS PERSONAL & OPERATIONAL GUIDELINES The rear body panel, (where fitted), is designed to cover the Drive Assembly, Wiring Harness and Electrical Connectors. This panel should only be removed by an authorised Sunrise dealer. DO NOT stand on any of the body panels, only the footboard. DO NOT stand on the scooter seat.
- Page 11 DO NOT operate your mobility scooter during an electrical storm. DO NOT leave your mobility scooter in a rain storm of any kind. DO NOT use your mobility scooter in a shower or leave it in a damp bathroom or sauna.
-
Page 12: Emc (Emi) Warnings
The interference, (from radio sources), can cause the mobility scooter to release its brakes, move by itself, or move in an unintended way. Permanent damage can also be done to the mobility scooter`s control system. The intensity of the interfering EM energy can be measured in volts per meter, (V/m.). - Page 13 EM energy rapidly intensifies the closer one moves to the transmitting antenna, the source. Because of this it is possible to bring strong EM fields unintentionally close to your mobility scooter’s control system. Mobile hand- held radio type transceivers are of particular concern.

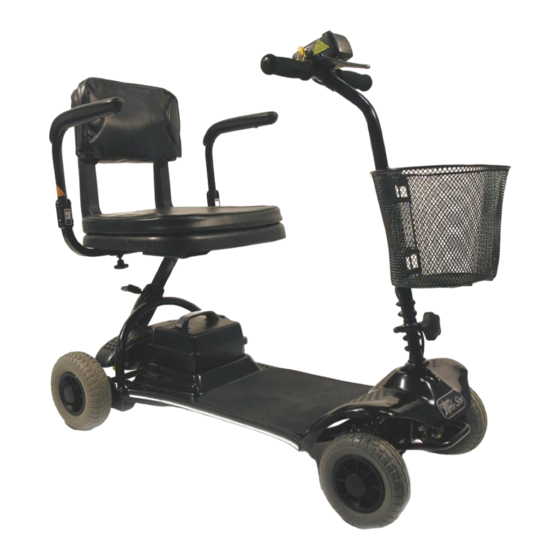

- Page 14 Features SEATING PAGE 16 BATTERY PACK PAGE 25-29 FREEWHEEL LEVER PAGE 20 Iss 1 WIDTH ADJUSTABLE ARMRESTS PAGE 17 TYRES PAGE 30 CONTROL POD PAGE 18-19 BASKET PAGE 24 TILLER LOCK PAGE 17 Photo 1...
-
Page 15: Safety Warning And User Guidance
Safety warning and user guidance Getting on to your scooter 1. Ensure that the on-off switch or key switch is turned to the off position. 2. Stand at the side of the scooter, facing forwards. 3. Pull the armrest upwards until vertical. 4. - Page 16 Safety warning and user guidance General safety warnings Safety is important with any vehicle that is power driven. Below are some essential tips to safeguard your use. These are not conclusive and should be read in conjunction with the sections which explain how to adjust, operate and maintain your vehicle.
- Page 17 Safety warning and user guidance Lifting heavy or bulky components Seat: 1. Stand at the side of the seat and fold the backrest down (Photo 2). 2. Unscrew the seat locking bolt by turning it anti - clockwise (Photo 3). 3.
-
Page 18: Emergency Braking
Safety warning and user guidance Batteries Always check the batteries are sufficiently charged before setting off. Always ensure that your batteries are in good condition and that no leakage has occurred. Beware, battery fluids are corrosive and care should be taken at all times to avoid contact with it. -
Page 19: Seat Height Adjustment
Safety warning and user guidance Transportation When transporting the scooter remove seat and lower the tiller. The battery should also be removed to make the parts lighter. Always stow your scooter in the luggage compartment of your vehicle. Always ensure your scooter or scooter parts are securely anchored when being transported. -
Page 20: Armrest Adjustment
Safety warning and user guidance Armrest Adjustment The width of the armrests can be adjusted by loosening the two thumbwheel knobs located under the seat base, moving the armrests to the desired position and re- tightening the thumbwheel knobs. Tiller Adjustment The scooter features a folding tiller which allows you to fold the tiller down fully, for transportation and stowage. -
Page 21: Tiller Control Functions
Tiller control functions Hand Controls All of the drive controls for the scooter are to be found on the Tiller Control Panel (Photo 13). The Pre-set Speed Knob Turning this knob to the left, reduces your available maximum speed. Turning it to the right, increases the available maximum speed. The Battery Gauge This gives an approximation of battery charge. -
Page 22: Throttle Lever
Tiller control functions Throttle Lever The throttle lever offers finger-tip control of your scooter, (Photo 13). It controls the speed as well as forward and reverse motion. Pulling the right-hand side of the lever towards you moves the scooter forwards. Pulling the left-hand side of the lever towards you moves the scooter in reverse and sounds a reversing beeper. -
Page 23: Operating Your Scooter
Operating your Scooter Freewheel mechanism A freewheel device disengages the power drive to allow manual operation (Photo 14). The freewheel is selected by pulling up the lever which is located at the rear of the scooter. Once freewheel has been selected, the electronic drive control system is disabled to prevent driving. -
Page 24: Basic Driving
Operating your Scooter Basic Driving 1. Make sure you are properly seated on the scooter and that the Speed Control knob is turned fully to the left, towards the “Tortoise” icon. Note: Reverse movement of the scooter may not occur when Speed Control Dial is turned fully anti-clockwise and reversing up a slope. -
Page 25: Switching Off
Operating your Scooter Braking To bring the scooter to a standstill simply let go of the throttle control lever. Remember to keep your hands on the handlebars whilst the scooter is braking. Two types of braking are used. (a) Automatic regenerative braking, which slows the scooter to a stop. (b) Automatic braking which will operate a couple of seconds after releasing the control lever and holds the scooter in position, even if you are on a hill. -
Page 26: Guidance For Safe Operation And Use
Guidance for safe operation and use Crossing roads Your scooter is not capable of mounting and dismounting kerbs and other obstacles in excess of 25mm (1”). Always use pedestrian crossings or drop downs. Be aware that some drop downs may be entrances to driveways. - Page 27 Guidance for safe operation and use Hill climbing Your scooter is designed to travel up or down most reasonable slopes up to 6°. However both hill climbing capability and distance travelled between battery charges will be adversely affected by such things as: 1.
-
Page 28: Batteries And Charging
Batteries and charging General information Batteries are the power source for almost all of the modern mobility products available today. The design of batteries used in mobility products is significantly different from the batteries used to start a car for example. - Page 29 Batteries and charging Battery pack care plan 1. Only use the approved battery charger compatible with the vehicle to be charged. 2. Charge your batteries over night, regardless of the amount of use your mobility device has had during the day. 3.
- Page 30 Batteries and charging The range of your vehicle Most manufacturers of mobility products state the range of their vehicles either in the sales literature or within the Owners Manual. The range stated sometimes differs from manufacturer to manufacturer even though the battery size is the same. We measure the range of our vehicles in a consistent and uniform manner, but variances still occur due to motor efficiencies and overall product load weight.
-
Page 31: Off Board Battery Charger
Batteries and charging Off Board Battery Charger Your scooter is supplied with an off-board charging facility. Please note that only chargers with a capacity of minimum 1.5 Amp and maximum 3 Amp supplied by your local authorised agent should be used. Your battery pack can be charged on or off the scooter. - Page 32 Batteries and charging Off Board Battery Charger The 1.5 Amp, off-board battery charger has a status indicator which tells you when your battery pack is fully charged, (Photo 21). There are three (3) possible indications: 1. OFF = Not connected / fault. 2.
-
Page 33: Routine Maintenance
Routine maintenance The following table gives an indication as to when routine maintenance checks should be made. There is no service manual available. Maintenance, fault finding and servicing should be carried out by an authorised agent unless otherwise indicated. The checks below can be carried out by the user Battery charge check (Fig. -
Page 34: Specifications
Specifications PARAMETER LENGTH REAR WIDTH HEIGHT MAX. USER WEIGHT BATTERY PACK MAX SAFE ANGLE TURN RADIUS SEAT - BASE HEIGHT MAX SPEED WHEEL SIZE FRONT WHEEL SIZE REAR RANGE OVERALL WEIGHT HEAVIEST PART GROUND CLEARANCE Iss 1 Little Star (4 Wheel) 960 mm (38”) 505 mm (20”) 890 mm (35”) -
Page 35: Troubleshooting Guide
Trouble Shooting Guide POSSIBLE CAUSE SYMPTOM Batteries not charged for long Shortened range enough Batteries weak and cannot hold charge Battery pack fault Battery pack not charging Charge fault Charger loom or plug damaged Loose connection No output from wall outlet Fuse in charger mains plug blown Button on battery pack has popped Faulty batteries... - Page 36 Notes Iss 1...
- Page 37 Notes Iss 1...
- Page 38 Notes Iss 1...
- Page 39 Notes...
- Page 40 Sunrise Medical Limited Sunrise Business Park, High Street, Wollaston, West Midlands DY8 4PS England Tel 01384 44 66 22 Fax 01384 44 66 44 eMail: sunmail@sunmed.co.uk www.sunrisemedical.com...
