INSTALLER: THESE INSTRUCTIONS MUST BE CONVEYED TO AND REMAIN WITH THE HOMEOWNER.
GD34-1 CERTIFIED UNDER CANADIAN AND AMERICAN NATIONAL STANDARDS: CSA 2.33 ● ANSI Z21.88 FOR VENTED GAS FIREPLACE HEATERS.
BGD34-1 CERTIFIED UNDER CANADIAN AND AMERICAN NATIONAL STANDARDS: CSA 2.22 ● ANSI Z21.50 FOR VENTED GAS FIREPLACES.

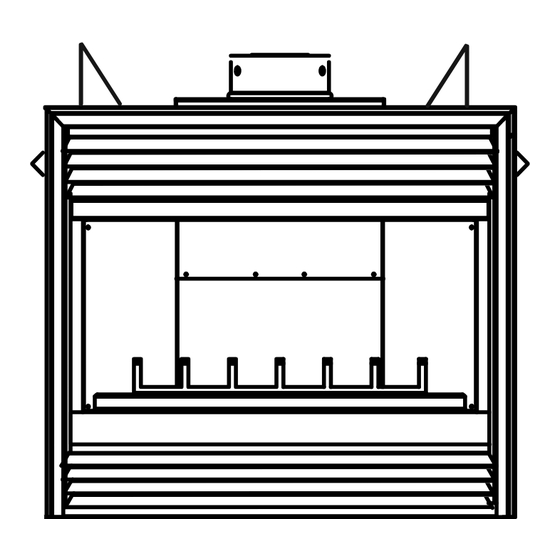

GD34-1NT
BGD34-1NT
NATURAL GAS MODEL
GD34-1PT
BGD34-1PT
PROPANE GAS MODEL
CERTIFIED FOR CANADA AND UNITED STATES USING ANSI/CSA METHODS.
SAFETY INFORMATION
WARNING
!
If the information in these instructions are
not followed exactly, a fire or explosion
may result causing property damage,
personal injury or loss of life.
- Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS:
Do not try to light any appliance.
Do not touch any electrical switch; do
not use any phone in your building.
Immediately call your gas supplier from
a neighbour's phone. Follow the gas
supplier's instructions.
If you cannot reach your gas supplier,
call the fire department.
-
Installation
and
performed by a qualified installer, service
agency or the supplier.
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON L4M 4Y8 Canada • (705)721-1212 • fax(705)722-6031
$10.00
INSTALLATION
OPERATING INSTRUCTIONS
service
must
be
www.napoleonfireplaces.com • ask@napoleon.on.ca
AND
W415-0663 / A / 01.07.08
1
Advertisement
Table of Contents
Related Manuals for Napoleon GD34-1NT
Summary of Contents for Napoleon GD34-1NT
-
Page 1: Safety Information
Installation service must performed by a qualified installer, service agency or the supplier. Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON L4M 4Y8 Canada • (705)721-1212 • fax(705)722-6031 www.napoleonfireplaces.com • ask@napoleon.on.ca W415-0663 / A / 01.07.08 $10.00... -
Page 2: Table Of Contents
TABLE of CONTENTS 21-23 FINISHING PG 3-5 INTRODUCTION Door Removal / Installation Warranty Door Glass Replacement General Instructions Logo Placement General Information Log Placement Care of Glass and Plated Parts Glowing Embers Dimensions Charcoal Embers 5-12 VENTING L334 Louvre Installation Venting Lengths and Air Terminal Locations OPTIONAL BLOWER INSTALLATION Vent Installations... - Page 3 Labour related to warranty repair is covered free of charge during the first year. Repair work, however, requires the prior approval of an authorized company official. Labour costs to the account of NAPOLEON® are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON® dealer.
-
Page 4: General Instructions
Objects placed in front of the fi replace must be kept at a minimum of 48" from the front face of the unit. Use only Napoleon® accessories designed for and listed with the model. CARE OF GLASS AND PLATED PARTS Do not use abrasive cleaners to clean plated parts. -
Page 5: Venting
GD34-1 DIMENSIONS FIGURES 1a-c ELECTRICAL INLET LEFT SIDE 33" 17" 29" 15" " " 11" INLET 13" " " " " BGD34-1 DIMENSIONS FIGURES 2a-c ELECTRICAL INLET LEFT SIDE 33" 29" 17" 15" " " 11" INLET 13" " " "... -
Page 6: Vent Installations
With fl exible venting, in conjunction with the various terminations, use either the 5 foot Vent Kit GD220 or the 10 foot Vent Kit GD330. For optimum fl ame appearance and fi replace performance, keep the vent length and number of elbows to a minimum. The air terminal must remain unobstructed at all times. -
Page 7: Typical Vent Installations
TYPICAL VENT INSTALLATIONS GD34-1 BGD34-1 24" MAXIMUM HORIZONTAL 24" MAXIMUM HORIZONTAL 10" MINIMUM 24" MINIMUM " MINIMUM PLUS RISE * " MINIMUM " PLUS RISE * " FIGURE 5 FIGURE 3 VERTICAL VERTICAL The vertical rise must be The vertical rise must be kept to a minimum of 36"... -
Page 8: Minimum Air Terminal Location Clearances
MINIMUM AIR TERMINAL LOCATION CLEARANCES FIGURE 8 W415-0663 / A / 01.07.08... -
Page 9: Venting Application Flow Chart
VENTING APPLICATION FLOW CHART Horizontal Termination Vertical Termination Vertical rise Vertical rise is equal Vertical rise is equal Vertical rise is less is less than to or greater than the than horizontal run to or greater than horizontal run horizontal run the horizontal run Horizontal run + Horizontal run +... - Page 10 ) > (V For vent confi gurations requiring more than one 90° elbow, the following formulas apply: Simple venting confi guration Formula 1: H < V (only one 90° elbow) Formula 2: H < 40 feet Example 1: FIGURE 11 90°...
- Page 11 VERTICAL TERMINATION ) < (V = 5 ft = 6 ft Simple venting confi gurations = 10 ft = 5 + 6 + 10 = 21 ft = 8 ft = 2.5 ft = 8 + 2.5 = 10.5 ft FIGURE 13 = .03 (four 90°...
-
Page 12: Installation
SHIELD horizontal framing. CAULKING As an alternative to framing, the vent pipe can be enclosed in the wall using Napoleon ® vent sleeve VS47KT. ” N O T E : T H E F I R E S TO P A S S E M B LY M U S T B E INSTALLED WITH THE VENT SHIELD TO THE TOP. -
Page 13: Vertical Installation
VERTICAL INSTALLATION This application occurs when venting through a roof. Installation kits for various roof pitches are available from your Napoleon® dealer. See Accessories to order the specifi c kit required. SHIELD 1. Determine the air terminal location, cut and frame a 9½" square opening in the ceiling and the roof to provide the minimum clearance between the vent pipe and any combustible material. - Page 14 HORIZONTAL AIR TERMINAL INSTALLATION For safe and proper operation of the fi replace, follow the venting instructions exactly. 1. Stretch the 4" fl ex vent pipe to the required length taking into account the additional length needed for the fi nished wall surface. Slip the vent pipe a minimum of 2"...
-
Page 15: Using Rigid Vent Components
W615-0033 every 3 feet on either side of each elbow 1"OVERLAP SCREWS to maintain the minimum 1¼" clearance between the 7" rigid CAULKING vent pipe and 4" rigid vent pipes. Use Napoleon® support ring HI-TEMP SEALANT assembly W010-0370 or equivalent noncombustible strapping 4"RIGID... -
Page 16: Restricting Vertical Vents
VERTICAL AIR TERMINAL INSTALLATION 1. Move the fi replace into position. 2. Fasten the roof support to the roof using the screws provided.The roof support is optional. INNER The venting is to be adequately supported using either an alternate method suitable to the PIPE authority having jurisdiction or the optional roof support. -
Page 17: Mobile Home Installation
Conversion Kits The mobile home appliance is fi eld convertible between Natural Gas (NG) and Propane (LP). To convert from one gas to another consult your Napoleon® dealer/distributor. GAS INSTALLATION Proceed once the vent installation is complete. - Page 18 GD34-1 FRAMING Minimum clearance to combustible construction from fi replace It is best to frame your fi replace after it is positioned and the and vent surfaces: vent system is installed. Frame to local building codes. The steel header supplied with the GD34-1 MUST be used Combustible Framing: when framing the GD34-1.
- Page 19 BGD34-1 FRAMING Minimum clearance to combustible construction from fi replace It is best to frame your fi replace after it is positioned and the and vent surfaces: vent system is installed. Frame to local building codes. Combustible Framing: Note: In order to avoid the possibility of exposed insulation or vapour barrier coming in contact with the fi...
-
Page 20: Minimum Mantel Clearances
MINIMUM MANTEL CLEARANCES Mantel clearance can vary according to the mantel depth. Use FIGURES 38a&b the graph to help evaluate the clearance needed. Combustible materials must be installed fl ush with the front of the fi replace 8" MANTEL but must not cover any of the black face-area of the fi replace. 6"... -
Page 21: Door Removal / Installation
Blocked burner ports can cause an incorrect fl ame pattern, carbon deposits and delayed ignition. PHAZER® logs glow when exposed to direct fl ame and provide a unique and realistic glowing effect. Use only certifi ed PHAZER® logs available from your Napoleon® / Wolf Steel Ltd. dealer. Positioning the logs improperly will cause fl ame impingement and carboning. -
Page 22: Glowing Embers
Sit the bottom of log #2 onto the locating pin on the left side Place log #6 onto the pins on the right side of the burner. of the log support. Position the top of the log into the pocket provided on the top of the rear log (#1). -
Page 23: Charcoal Embers
Position the notch located in the bottom end of log #3 against Place the bottom of log #4 onto the locating pin on the right the centre grate post. Rest the top of log #3 into the pocket side of the log support. Rest the top into the pocket provided at the top end of log #2. -
Page 24: Optional Blower Installation
OPTIONAL BLOWER INSTALLATION INSTALLATION TO BE DONE BY A QUALIFIED INSTALLER and must be electrically connected and grounded in accor- THERMODISC dance with local codes. In the absence of local codes, use the current CSA C22.1 in Canada or the CANADIAN ELECTRICAL CODE FIGURE 54 ANSI/NFPA 70... -
Page 25: Operation / Maintenance
If ignition takes longer, and ventilation air must not be obstructed. consult your Napoleon® dealer / distributor. 1. In order to properly clean the burner and pilot assembly, 7. Check that the gasketing on the sides, top and bottom of the remove the logs to expose both assemblies. -
Page 26: Adjustments
ADJUSTMENTS VENTURI ADJUSTMENT PILOT BURNER ADJUSTMENT Adjust the pilot screw to provide properly sized fl ame. Turn All fi replace models have air shutters that have been factory in a clockwise direction to reduce the gas fl ow. set open according to the chart below. These settings are for maximum horizontal / terminations. -
Page 27: Replacements
Contact your dealer for questions concerning prices and WARNING availability of replacement parts. Normally all parts can be ordered through your Napoleon® dealer or distributor. Failure to position the parts in accoardance with these diagrams or failure to use only parts specified approved with this appliance may When ordering replacement parts always give the following result in property damage or personal injury. - Page 28 COMMON REPLACEMENTS GD34-1 COMPONENTS BGD34-1 COMPONENTS W455-0056 #50 NATURAL GAS MAIN ORIFICE W455-0019 #43 NATURAL GAS MAIN ORIFICE W455-0060 #57 PROPANE GAS MAIN ORIFICE W455-0050 #55 PROPANE GAS MAIN ORIFICE W010-0695 BURNER W010-0595 BURNER W135-0082 LOG #5 - W550-0001 CHARCOAL EMBERS CHARCOAL PIECE W135-0182 LOG #6...
-
Page 29: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE EFORE ATTEMPTING TO TROUBLESHOOT PURGE YOUR UNIT AND INITIALLY LIGHT THE PILOT AND THE MAIN BURNER WITH THE GLASS DOOR REMOVED SYMPTOM PROBLEM TEST SOLUTION Pilot goes out while Gas piping is undersized. - turn on all gas appliances and see if pilot fl ame fl utters, diminishes or extinguishes, especially when main burner ignites. - Page 30 SYMPTOM PROBLEM TEST SOLUTION Main burner goes Refer to "MAIN BURNER GOES OUT; PILOT STAYS ON" out; pilot goes Vent is blocked - check for vent blockage. out. Vent is re-circulating - check joint seals and installation. 4 " f l e x i b l e v e n t h a s - re-attach to fi...
- Page 31 W415-0663 / A / 01.07.08...
- Page 32 NOTES W415-0663 / A / 01.07.08...
