Sony KV-HR32M90 Service Manual
  1. Manuals
  2. Brands
  3. Sony Manuals
  4. TV
  5. KV-HR32M90
  6. Service manual
Sony KV-HR32M90 Service Manual

Sony KV-HR32M90 Service Manual

Sony kv-hr32m90 trinitron color tv service manual
Hide thumbs

Advertisement

Quick Links

Download this manual

SERVICE MANUAL

MODEL
COMMANDER
––––––
––––––––––––
KV-HR32M90
RM-1007 Chinese
VIDEO
MODE
DRC-MF
PALETTE
HD/DVD
1
2
4
5
7
8
0
OPTION
RESET
TV
RM-1007
DEST. CHASSIS NO.
––––– –––––––––––
SCC-M14L-A
A/B
V CENTER
3
6
9
JUMP
PROG
AX-1
MODEL
COMMANDER
––––––
––––––––––––
KV-HR32M90
TRINITRON COLOR TV
CHASSIS
DEST. CHASSIS NO.
––––– –––––––––––
R

Advertisement

loading

Related Manuals for Sony KV-HR32M90

Summary of Contents for Sony KV-HR32M90

  • Page 1: Service Manual

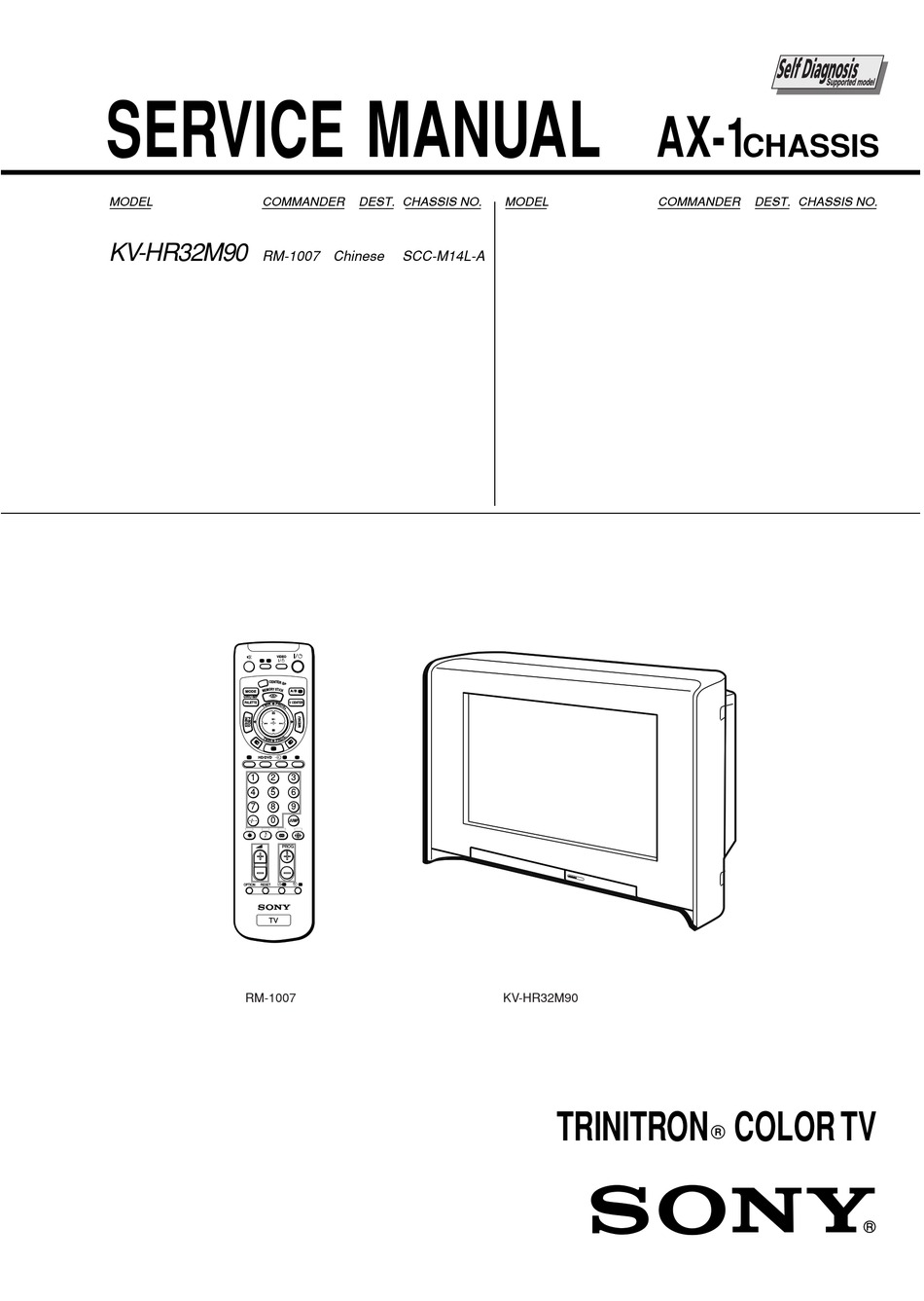

    SERVICE MANUAL AX-1 CHASSIS MODEL COMMANDER DEST. CHASSIS NO. MODEL COMMANDER DEST. CHASSIS NO. –––––– –––––––––––– ––––– ––––––––––– –––––– –––––––––––– ––––– ––––––––––– KV-HR32M90 RM-1007 Chinese SCC-M14L-A VIDEO MODE DRC-MF PALETTE V CENTER HD/DVD JUMP PROG OPTION RESET RM-1007 KV-HR32M90 TRINITRON COLOR TV...

  • Page 2: Circuit Boards Location

    KV-HR32M90 RM-1007 6-2. CIRCUIT BOARDS LOCATION Terminal name of semiconductors in silk screen printed circuit ( Note: The symbol display is on the component slde. Circuit Device Printed symbol Terminal name Collector Transistor The components identified by shading and mark...
  • Page 3 KV-HR32M90 RM-1007 (1) Schematic Diagram of A (1/3) Board CN6009 CN6102 CN6012 CN6011 CN6010 CN6015 CN6100 CN6101 :MINI FOR CHECK :MINI(LOCK) :MINI(LOCK) CN6000 H µ L6002 C6125 C6126 TO D(3/3)BOARD RECT+ T6101 D6113 R6120 KBP153G CN6400 AC TRANSFORMER RECT- 1/10W...
  • Page 4 KV-HR32M90 RM-1007 (2) Schematic Diagram of A (2/3) Board CN2019 TU2000 TU2001 BTF-WG442 BTF-LG434 MAIN TU SUB-TU R2085 IC2002 R2102 R2101 R2066 S80843CLUA- C2091 R2115 1/10W 1364T2G :CHIP C2092 C2090 RESET 470p R2057 R2084 R2114 1 2 3 B:1608 C2076...
  • Page 5 KV-HR32M90 RM-1007 (3) Schematic Diagram of A (3/3) Board TO D(3/3)BOARD TO D(3/3)BOARD TO MJ(1/3)BOARD TO BM(1/4)BOARD TO MJ(1/3)BOARD CN5004 CN5005 CN101 CN3001 CN102 3.53.43.73.7 4.2 3.9 2.12.72.50.9 5 0.1 0 3.5 3.73.7 3.9 1.3 0.2 0.3 0 4.5 4.4 3.43.4...

  • Page 6: Schematic Diagram Of Bm (1/4) Board

    KV-HR32M90 RM-1007 (4) Schematic Diagram of BM (1/4) Board CN3402 TO HMJ BOARD CN201 9V-1 R3023 :1608 9V-2 C3032 CN3001 R3481 R3482 :1608 :1608 :1608 F:1608 TO A(3/3)BOARD CN2004 C3036 C3035 FL3000 C3039 CKD510JB1A105ST F:1608 :AL-CP F:1608 MAIN_9V C3412 FB3401 0.01...
  • Page 7 KV-HR32M90 RM-1007 (5) Schematic Diagram of BM (2/4) Board C3186 100p CH:CHIP L3101 H µ C3100 1000p RB3101 :CHIP B:1608 10k*4 FB3101 BK2125HM601 C3101 1000p R3187 R3191 B:1608 C3102 R3101 R3181 R3182 47 1/10W :CHIP :AL-CP RB3114 RB3115 RB3116 RB3117...
  • Page 8 KV-HR32M90 RM-1007 (6) Schematic Diagram of BM (3/4) Board TO(2/4)(4/4) MAIN_CCP RB3201 RB3202 47*4 47*4 L3205 3.3V C3201 H µ 0.01 3.3V :CHIP B:1608 IC3202 FL3201 MSM56V16160F-8T C3202 C3203 CKD510JB1A105ST 16M-SDRAM 0.01 6.3V B:1608 :AL-CP 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 C3205 0.01...
  • Page 9 KV-HR32M90 RM-1007 (7) Schematic Diagram of BM (4/4) Board IC3310 PQ70XZ01ZP R3302 C3304 Q3301 R3303 2.5V REG 0.01 FL3304 MSD601 C3354 CKD510JB1A105ST 3.3V 1/10W 1/10W 1 2 3 4 5 C3392 Y_CL BUFF :CHIP B:1608 :CHIP 0.01 L3317 FL3306 C3305 3.3V...
  • Page 10 KV-HR32M90 RM-1007 (8) Schematic Diagram of C Board – 93 – – 94 –...
  • Page 11 KV-HR32M90 RM-1007 (9) Schematic Diagram of D (1/3) Board – 95 – – 96 –...
  • Page 12 KV-HR32M90 RM-1007 (10) Schematic Diagram of D (2/3) Board – 98 – – 97 –...
  • Page 13 KV-HR32M90 RM-1007 (11) Schematic Diagram of D (3/3) Board (P2-9I) – 99 – – 100 –...
  • Page 14 KV-HR32M90 RM-1007 (12) Schematic Diagram of HMG, H3 Board – 101 – – 102 –...
  • Page 15 KV-HR32M90 RM-1007 (13) Schematic Diagram of H4, H5 Board – 103 – – 104 –...
  • Page 16 KV-HR32M90 RM-1007 (14) Schematic Diagram of MG (1/3) Board – 105 – – 106 –...
  • Page 17 KV-HR32M90 RM-1007 (15) Schematic Diagram of MG (2/3) Board – 107 – – 108 –...
  • Page 18 KV-HR32M90 RM-1007 (16) Schematic Diagram of MG (3/3) Board – 109 – – 110 –...
  • Page 19 KV-HR32M90 RM-1007 (17) Schematic Diagram of MS2 (1/3) Board 3.3V FB4000 BK1608TS601 C4011 3.3V R4012 F:CHIP R4013 4.7k 4.7k R4016 :CHIP :CHIP 22 TO(2/3)(3/3) :CHIP R4062 Q4003 TO(2/3)(3/3) DTA144EE-TL TO(3/3) CLK66M_RE 1/16W BUS CTL R4017 MUTE :CHIP R4079 C4032 Q4004...
  • Page 20 KV-HR32M90 RM-1007 (18) Schematic Diagram of MS2 (2/3) Board 1.8V FB4100 BK1608TS601 MS2(2/3) C4125 C4128 F:CHIP F:CHIP TO(1/3)(3/3) TO(1/3)(3/3) 1.8V (CPU) BUS CTL FB4101 BLM21P331SG C4126 C4129 SDRAM-6 3.3V F:CHIP F:CHIP TO(3/3) 3.3V SDRAM-7 FB4102 3.3V WDT ENB BK1608TS601 TO(1/3) R4125 VDD3.3V...

  • Page 21: Schematic Diagram Of Ms2 (3/3) Board

    KV-HR32M90 RM-1007 (19) Schematic Diagram of MS2 (3/3) Board 3.3V 3.3V TO(1/3)(2/3) L4200 FB4202 µ BK1608TS601 IC4201 MS_SEL CY27027ZCT R4205 C4200 :CHIP AUDCLK CLK12M TO(1/3) TO(1/3) R4206 F:CHIP C4220 MSSEL R4204 JL4204 R4200 IC4203 VD CTL :CHIP ASICCLK CLK66M_RE JL4200...
  • Page 22 KV-HR32M90 RM-1007 (20) Schematic Diagram of SF Board (LANDING) – 117 – – 118 –...
  • Page 23 KV-HR32M90 RM-1007 (21) Schematic Diagram of UG (1/2) Board – 119 – – 120 –...
  • Page 24 KV-HR32M90 RM-1007 (22) Schematic Diagram of UG (2/2) Board – 122 – – 121 –...
  • Page 25 KV-HR32M90 RM-1007 (23) Schematic Diagram of W Board – 123 – – 124 –...
  • Page 26 KV-HR32M90 RM-1007 English Sony EMCS Corporation 2004AR02-1 9-872-711-01 ©2004.1 Ichinomiya TEC – 196 –...
