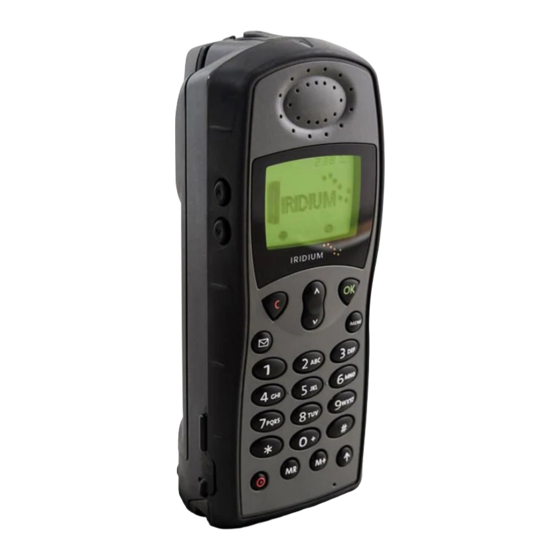

Iridium 9505A Quick Manual

YOUR SATELLITE PHONE NUMBER
BEFORE DEPARTURE PLEASE MAKE TEST CALL BY DIALING [6111] FROM YOUR SATELLITE
1
LINE-OF-SIGHT
and away from buildings and tall structures for optimal call
quality and minimal dropped calls.
ROTATE ANTENNA
2
the 45 degree position to either the left or right and fully extend.
Make sure your antenna "clicks" into place. If you have to hold it manually in position,
the antenna has been released and is not locked in. While the antenna is rotated down,
press the button atop the unit again and insert antenna completely.
TURN PHONE ON
3
wait for the phone to register (
a successful registration. To force register, press
PLACE A CALL
4
[International Access Code] [Country Code] [Phone Number] and press OK
To call a US phone number from
the satellite phone (choose one):
00 1 480.857.6656
+ 1 480.857.6656
Phone Number
USA Country Code
International Dialing Prefix
RECEIVE A CALL
5
•
Phone must be powered on and registered, otherwise the call will be forwarded to voicemail
•
The phone will chirp until you rotate and extend the antenna, after which point it will ring.
•
Display will show 'Answer?' Press OK
•
To end any call, Press
CHECK VOICEMAIL
6
•
Dial your own satellite phone number and press OK
•
Interrupt voicemail greeting by pressing *
•
Wait for prompt to enter password - if this is your first time, it is the last seven digits of your satel-
lite phone number. If you've already set up voicemail, enter in your personalized
word.
Note: short key instructions on back
9 5 0 5 A QU I CK G UI DE
8816 -
Need a clear view of sky, outdoors
Rotate antenna upwards into
Press and hold
Registered); you will see a
!
You must enter the phone number in an international format.
To another satellite phone from
the satellite phone (choose one):
00 881
+ 881
Iridium Country Code
International Dialing Prefix
OK
C
PO Box 714 · Santaquin, UT 84655
866.438.6883 · 801-754-1621 Ext 6 · fax 801-754-1721
info@fsclp.com · www.fsclp.com
-
8.2 o
After a series of power-on messages,
and a as indictors of
.
8
TUV
OK
Hold down the
6.214.55555
6.214.55555
key to see a
Phone Number
appear on
the display
OK
HELPFUL NUMBERS:
TECHNICAL SUPPORT
AVAILABLE 24x7x365:
Direct: 801-754-1621
Ext 6
Toll Free: 866-438-6883
Toll Free from
Satellite Phone: 6111
TWO-STAGE DIALING:
480.768.2500
KEY INDICATORS:
0
+
(+) sign
pass-
Signal Strength
Indicator
Battery Charge
Indicator
Message
Indicator
Satellite Mode
Indicator
Successful
Register
Indicator
No Service
Indicator
