- Page 1 Fishman Ellipse Aura – operating instructions Fishman Ellipse Aura model: PRO-AUR mail - corporate drive, suite a, escondido, ca www.badenguitars.com +1.760.738.0370 92029...
-
Page 2: Quick Start

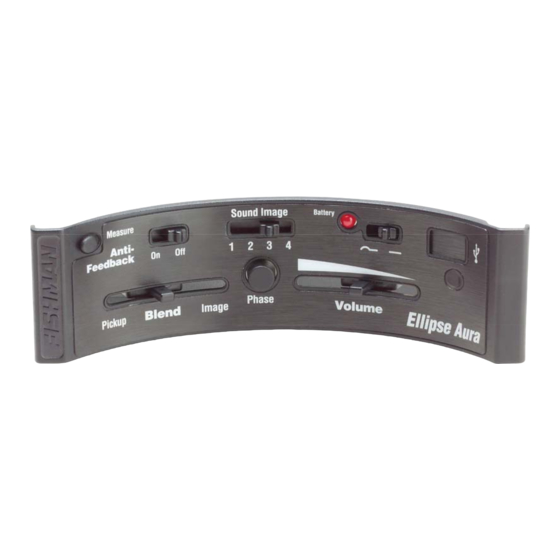

Quick Start Set the controls to the following position 1. Plug In • Connect the Ellipse Aura to your amplifier or PA with a ¼-inch instrument cable. 2. Select an Image • Raise the Volume and use the Image switch to browse through the four Images until you find one you prefer. - Page 3 Controls The controls are arranged in two distinct levels. Once your fingers are familiar with the layout, you will be able to easily adjust the controls, even when you can’t see them. (1 2 3) 1. Blend Use the Blend slider to adjust the balance between the pickup and the Image. You’ll attain a more microphone-like sound by favoring the Image.
-
Page 4: Performance Tips
6. Voicing Switch This switch selects how the pickup is voiced. Move the Voicing Switch to the left for bass boost and to the right for a flat response. Choose the setting that works for your instrument and your performance requirements. Here are some guidelines. -
Page 5: Input Trim
Input Trim Adjust this set-and-forget control so you can play strongly without distortion and play quietly without hiss. To set the Input Trim: 1. Move the Image switch left to #1. 2. Hold down the Measure switch as you plug in the guitar. 3.
