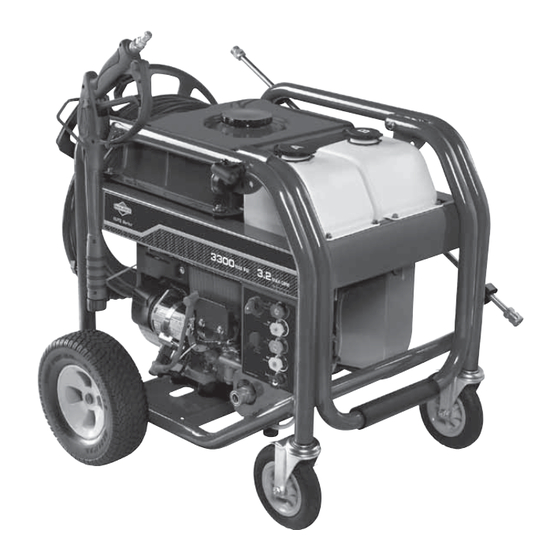

Briggs & Stratton Pressure Washer Quick Setup Manual

WARNING Failure to read and follow the operator's
manual and all operating instructions could
result in death, serious injury, and/or property
damage.
WARNING Fuel and its vapors are extremely
flammable and explosive which could cause
burns, fire or explosion resulting in death,
serious injury and/or property damage. Turn
pressure washer engine OFF and let it cool at least
2 minutes before removing fuel cap. Let spilled fuel
evaporate before starting engine. Always allow space for
fuel expansion.
WARNING Starter cord kickback (rapid retraction)
will pull hand and arm toward engine faster
than you can let go which could cause broken
bones, fractures, bruises, or sprains resulting
in serious injury. NEVER pull starter cord without first
relieving spray gun pressure. Pull starter cord slowly
until resistance is felt, then pull rapidly. Firmly grasp
spray gun with both hands when using high pressure
spray to avoid injury when spray gun kicks back.
Items Included:
Operator's Manual, Oil Funnel & Two Keys (not shown)
You will need:
• Utility knife • Unleaded fuel • 8 mm and 19 mm (3/4") wrenches
• Garden hose, 50 ft. (15 m) or less • Safety goggles (indirect vented type)

Unpack pressure washer

1. Remove everything from carton except pressure washer.
2. Open carton completely by cutting each corner from top to bottom.
3. Ensure you have all included items prior to assembly.
1-800-743-4115
If items are damaged or missing, call
4. Prior to assembly, lubricate all o-ring connections as described in
operators manual.

Attach accessory holders

All assembly instructions in this section will be viewing from engine end
of unit.
1. Place hose wrap (A) over holes (B) on end of main unit. Using
provided hex key wrench, attach hose wrap with three screws (C).
Tighten by hand.
1
2. Insert spray gun holder wireform (D) through holes on right side of
unit frame. Hold wireform in place and attach a plastic knob (E) from
inside of unit. Tighten by hand.
2
3. Using provided hex key wrench, attach metal spring clips (F) to left
side frame of unit with screws (G). Tighten by hand.
NOTICE Turn spring clips so that nozzle extension can be snapped in.

Install wheel kit

1. Lift corner of pressure washer and slide caster wheels up into
bottom of tubing on each underside of pressure washer frame.
2. Using a 19 mm (3/4") wrench, turn nut (H) counterclockwise under
collar of caster wheels to tighten.
4
3. Slide flat washer (J), wheel (K) and another flat washer (J) over axle
stud (L).
5
NOTICE Be sure to install wheel with raised hub inboard.
4. Lift corner of pressure washer slightly and slide axle stud through
mounting bracket on pressure washer frame.
5. Insert retaining pin (M) through hole on axle stud.
6. Repeat steps 3 through 5 to secure second wheel.
7. Screw handle pin (N) into bracket on left side of frame.
Copyright © 2012. All rights reserved. No part of this material may be reproduced or transmitted in any form without the express written permission of Briggs & Stratton Power Products Group, LLC.
Every effort has been made to ensure that the information in this document is accurate and correct. However, we reserve the right to alter or otherwise improve the product and this document at any time without prior notice and without incurring obligation.
This pressure washer is rated in accordance to the Pressure Washer Manufacturers Association (PWMA) standard PW101-2010 (Testing and Rating Performance of Pressure Washers).
Quick Setup Guide
WARNING Engine exhaust contains carbon monoxide,
a poisonous gas that could kill you in minutes.
You CANNOT smell it, see it, or taste it. Operate
ONLY outside far away from windows, doors
and vents. Install carbon monoxide alarms. DO NOT run
this product inside homes or garages, even if using fans or
opening doors and windows.
WARNING High water pressure could cut through
skin resulting in serious injury. Spray gun
traps high water pressure, even when engine
is stopped and water is disconnected. NEVER
aim spray gun at people, animals, or plants. ALWAYS
point spray gun in safe direction, press red button and
squeeze spray gun trigger to release high pressure,
every time you stop engine.
WARNING Risk of eye injury. Spray could splash
back or propel objects resulting in serious
injury. Always wear indirect vented (chemical
splash) safety goggles marked to comply with
ANSI Z87.1 when using or in vicinity of this equipment.
NEVER substitute safety glasses or dry-condition
goggles for indirect vented safety goggles.
1
A
.
C
2
E
3
3
G
4
4
5
H
6
5
M
J
6
N

Pressure Washer

Attach negative battery cable

Your unit is equipped with electric start capability but can be started
manually. If you choose not to use the electric start feature, you do not
need to connect the negative battery cable. The sealed battery on the
pressure washer is pre–installed except for the negative (black) battery
cable.
WARNING Battery posts, terminals and related accessories contain
lead and lead compounds - chemicals known to the State of California
to cause cancer and reproductive harm. Wash hands after handling.
1. Cut off tie wrap securing loose end of negative (black) cable.
2. Using 8 mm wrenches, remove screw (P) and nut (Q) on negative
battery terminal (—) (R).
3. Slide negative battery cable (S) over screw.
4. Reattach screw and nut on negative battery terminal and tighten.
5. Verify that connections to battery and pressure washer are tight and
secure.

Add engine oil and fuel

NOTICE You MUST properly fill engine with oil before attempting to start
pressure washer.
NOTICE DO NOT use E85 fuel.
NOTICE DO NOT mix oil with fuel.
1. Move pressure washer outdoors to a flat, level surface.
2. Clean area around oil fill and remove oil fill cap (
3. Using oil funnel, slowly pour contents of supplied oil into oil fill
opening to the point of overflowing at oil fill cap. DO NOT OVERFILL.
4. Replace oil fill cap and fully tighten.
5. Clean area around fuel cap (
6. Slowly add unleaded gasoline (T) to fuel tank (U). Be careful not
B
to fill above the baffle (V). This allows adequate space for fuel
expansion as shown.
10
7. Install fuel cap and let any spilled fuel evaporate before starting
engine.
Move pressure washer
to safe operating location
D
WARNING Engine exhaust contains carbon monoxide, a poisonous
gas that could kill you in minutes. You CANNOT smell it, see
it, or taste it. Operate ONLY outside far away from windows,
doors and vents. Install carbon monoxide alarms. DO NOT
run this product inside homes or garages, even if using fans or opening
doors and windows.
1. Move pressure washer outdoors to a flat, level surface.
2. Keep at least 1.5 m (5 ft.) clearance on all sides of pressure washer
including overhead to reduce the risk of exhaust heat or exhaust gases
F
igniting nearby combustible material.
3. Place lock levers on caster wheels in the "On" postion to lock wheels
and keep pressure washer from moving.
Connect spray gun
NOTICE Remove and discard the shipping caps from the pump's high
pressure outlet and water inlet before attaching hoses.
1. Uncoil high pressure hose and attach quick connect end of hose (W)
to base of spray gun (X). Pull down on collar of quick connect, slide
onto spray gun and let go of collar. Tug on hose to be sure of tight
connection.
13
2. Similarly, attach other end of high pressure hose to high pressure
outlet (Y) on pump. Push back on collar of quick connect, slide
onto pump and let go of collar. Pull on hose to be sure of tight
connection.
14
K Connect water supply
L
1. Inspect garden hose inlet screen (Z) for damage.
NOTICE If inlet screen is damaged or missing, DO NOT use pressure
1-800-743-4115
washer, call
2. Clean screen if necessary. Refer to operator's manual for instructions.
3. Run cold water through garden hose (aa) for 30 seconds to clean out
any debris. Garden hose length must not exceed 50 ft. (15 m). Turn
off water supply and attach garden hose to water inlet (bb). Tighten by
hand.
15
Have Questions?
Do not return to store. We can help.
Call Customer Service Toll-Free 1-800-743-4115
or visit our website, BRIGGSandSTRATTON.COM
7
8
7
7
9
).
8
10
), remove fuel cap.
9
11
11
12
12
13
15
.
14
15
Q
R
P
S
U
TANK
V
T
FUEL
Exhaust Port
Pointed away
from occupied
spaces
X
W
Y
Z
bb
aa
318556, Rev -
