- Page 1 PTBM 350-13 2002 Operating and safety instructions...
- Page 2 Operating instructions Page 4 - 7...
-
Page 4: Proper Use

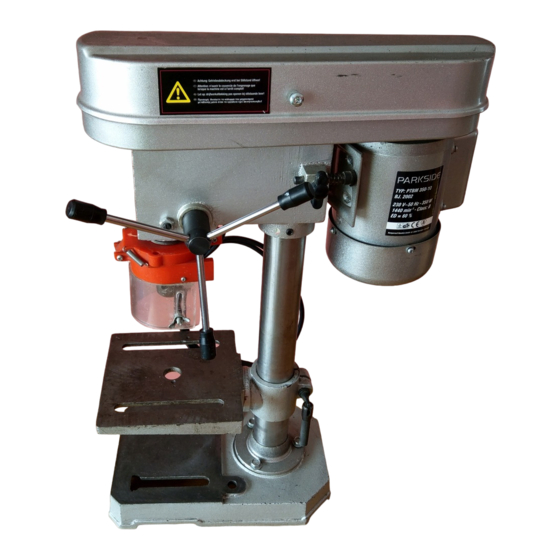

Be careful to keep these advice notes and if necessary pass them on to a third party. PROPER USE The bench drill is intended for drilling in wood, plastic and metal using normal drill bits up to a maximum diameter (ø) of 13 mm. Any other use of or modification to the machine shall be considered as improper use and could give rise to serious danger. -
Page 5: Technical Information
Attention: Clean the drill spindle cone thoroughly to remove all traces of grease. SETTING UP THE MACHINE Set the bench drill down on a firm surface and level it using a spirit level. We recommend that the machine is bolted down on to the supporting surface. Please ensure that the base plate not subject to any additional forces as a result of being bolted down. -
Page 6: Installation And First Use
Loosen the adjustment screw adjustment screw . SETTING THE SPEED The bench drill has 5 different speeds. The speed is set by simply repositioning the V-belt. To do this open the drive/belt cover , loosen the adjustment screw relevant pair of drive wheels. -
Page 7: Declaration Of Conformity
The following table gives further helpful advice: the correct speed is different for each material the cutting speed is dependent on the diameter of the drill and the rotation speed the table gives the approximate rotation speed please note that an average speed has been calculated for the listed materials and the rotation... - Page 8 This piece of equipment is covered by a 36-month warranty as of the date of purchase. The equipment was produced with the greatest of care and underwent thorough testing before delivery. In the unlikely event of detecting a functional defect, please return the equipment in its original packaging with the proof of purchase (if available) to the closest service address.
