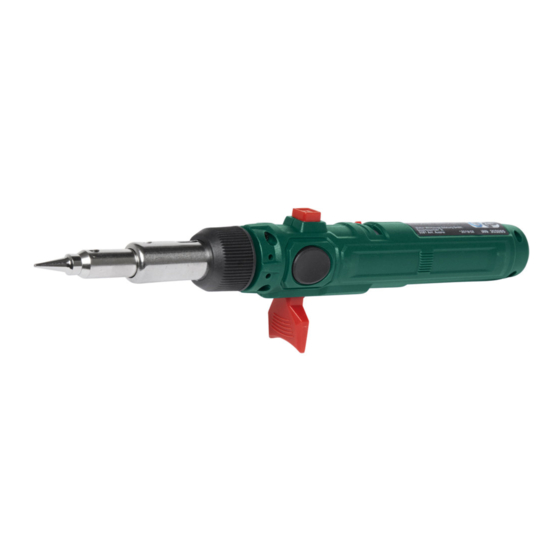

- Page 1 GAS SOLDERING IRON SET PT370 GAS SOLDERING IRON SET Operation and Safety Notes IAN 317244_1904...
- Page 2 1 / 2 1 / 2...
-
Page 3: Table Of Contents
....................................Scope of use ......................................Technical specifications ........................Contents ........................................Features ........................................Technical specifications for mod. No. PT370 ......................Before using the tool .......................... Fill the gas tank (Figure A) ................................Operation / use ............................Assembly of attachments (Figure B) ............................ -
Page 4: Symbols Used
Symbols used Follow the warning and safety instructions! Read the operating instructions Wear eye protection. Caution hot! May only be used outside or in well ventilated rooms Danger: Highly inflammable aerosol Dispose of the product and packaging in an environmentally friendly manner. - Page 5 - Do not make any changes to the gas soldering iron! The soldering iron may not be modified in any way. Factory settings may not be altered. - Only replacement parts recommended by the manufacturer may be used. It can be dangerous to modify or adjust the gas soldering iron, to remove factory fitted parts or to use replacement parts other than those recommended by the manufacturer.
-
Page 6: Scope Of Use
THE TABLE SURFACE OR OTHER OBJECTS. DO NOT DIRECT THE HOT AIR FLOW TOWARDS YOUR EYES, FACE, BODY OR OTHER PERSONS. Otherwise there is danger of burning. - Do not inhale the welding/ soldering fumes, as they can be poisonous. - Be aware that the actual size of the flame can be longer than it appears to be. -
Page 7: Technical Specifications
Technical specifications Contents • Gas soldering iron • Protective cap • 4 soldering tips (1x pre-assembled) • Hot air deflector • Cleaning sponge • Solder • Fuel gas cartridge ROTHENBERGER INDUSTRIAL Rofill Super 100 Features Hot air/ soldering attachment Soldering torch attachment Knurled nut Switch for continuous flame Flame regulator... -
Page 8: Technical Specifications For Mod. No. Pt370
Technical specifications for mod. No. PT370 The gas soldering iron is not filled. Appliance category / type of gas: Direct pressure butane; direct pressure butane-propane-mix The best results are achieved with the butane-propane mix Rofill Super 100 (75 % butane, 25 % propane). -
Page 9: Operation / Use
• Place the nozzle of the gas canister at the refill valve (6) of the gas soldering gun and press it . • Draw the nozzle of the gas canister out of the refill valve of the system as soon as the gas begins to overflow out. -
Page 10: Use As Hot Air Gun
Use as hot air gun The hot air gun function is ideal for removing or drying paint and forming plastic. It can also be used for shrink fitting and softening or removing adhesive. CAUTION! Danger of burns! Allow the gas soldering iron to cool completely before changing the attachments. -
Page 11: Igniting And Extinguishing The Flame
Igniting and extinguishing the flame Igniting the flame Continuous flame Regulating the flame 1. Outlet • Applies only when using as a hot air gun or soldering iron. Ensure the outlet (16) on the hot air/soldering attachment is pointing upwards (away from the stand). Adjust the position of the hot air/soldering attachment if necessary. -
Page 12: Shutting Down The Device Safely (Figure G)
Shutting down the device safely (Figure G) A stand is integrated in the ignition switch to rest the device safely. Always use the tool rest when putting the item down. Protective cap (Figure H) The contents include a protective cap (15). Use the protective cap to safely rest the hot device and to prevent mechanical hazards. -
Page 13: Disposal
Disposal Worn out appliances must be recycled at a suitable recycling facility. Do not dispose of with the household waste. For further information contact your local authority. Dispose of the packaging material according to the type of material and accordingly to any local regulations. Instructions for disposal of the gas cartridge Do not dispose of with the household waste. - Page 14 Warranty period and legal claims based on defects The warranty period is not extended by the warranty. This also applies to replaced and repaired parts. Any damages and defects that may exist at the time of purchase must be notified immediately after removal from packaging. Any repairs arising after the expiry of the warranty period are chargeable.
- Page 15 Service Walter Werkzeuge Service Center E-Mail: service@walteronline.com Tel.: 00800 925 837 88 IAN 317244_1904 ROTHENBERGER HELLAS A.E.E. E-Mail: ro-he@otenet.gr Tel.: +30 210 94 02 049 IAN 317244_1904 Supplier: Please note that the following address is not a service centre address. Please contact the above-mentioned service centre first.
- Page 16 Walter Werkzeuge Salzburg GmbH Gewerbeparkstr. 9 5081 Anif, Austria V. 1.0 Last Information Update: 02/2020 IAN 317244_1904...
