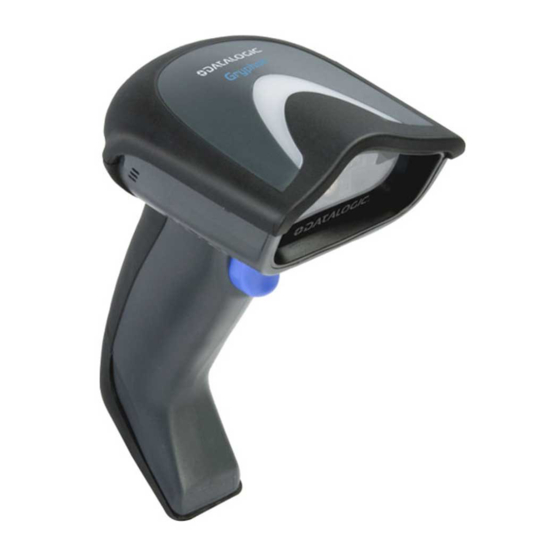

- Page 1 Gryphon™ I GD4132 General Purpose Corded Handheld Linear Imager Bar Code Reader BSR idware GmbH Jakob-Haringer-Str.3 A-5020 Salzburg https://www.bsr.at sales@bsr.at Quick Reference Guide...
- Page 2 Datalogic website (www.datalogic.com) or provided on appropriate media. If you visit our website and would like to make comments or sugges- tions about this or other Datalogic publications, please let us know via the "Contact Datalogic" page. Disclaimer...
-
Page 3: Table Of Contents
Country Mode ................18 Technical Features ................23 LED and Beeper Indications ............25 Troubleshooting ................26 Ergonomic Recommendations ............27 Datalogic Limited Factory Warranty ...........28 Warranty Coverage ............. 28 Warranty Claims Process........... 28 Warranty Exclusions........... 29 No Assignment ............29 Risk of Loss ..............30 Support Through the Website .............31... - Page 4 NOTES Gryphon™ I GD4132...
-
Page 5: End User License Agreement
This End User License Agreement ("EULA") is between Datalogic IP Tech S.r.l. having its registered office at Via San Vitalino 13, 40012 Calderara di Reno (Bologna), Italy ("Datalogic"), and you, either an individual or a single entity, ("End User or "You"") who has purchased one or more Gry- phon I GD4132 ("Datalogic Product") subject to the terms and condi-... - Page 6 (additional) license fees due and any further damages, if any. 2. License Fee License fees shall be due by End User to Datalogic according to the terms provided for in the relevant contract for the purchase of the Datalogic Product.
- Page 7 Rights in Technical Data and Computer Software clause at DFARS 252.227-7013(c)(1)(ii), whichever is applicable. If End User is using the Datalogic Product outside of the United States, End User must comply with the applicable local laws of the country in which the Datalogic Product is used and with U.S.
- Page 8 State of Oregon located in either Multnomah or Lane counties shall have exclusive jurisdiction over all matters regard- ing this Agreement, except that Datalogic shall have the right, at its absolute discretion, to initiate proceedings in the courts of any other state, country, or territory in which End User resides, or in which any of End User' s assets are located.
-
Page 9: Software Product Policy
- END - Software Product Policy Datalogic reserves the right to ship its products with the latest version of software/firmware available. This provides our customers with the very latest in Datalogic software technology. The only exception to this policy is when the buyer has a signed contract with Datalogic that clearly defines the terms and conditions for making software/firmware changes in products shipped to the buyer. - Page 10 Software Product Policy NOTES Gryphon™ I GD4132...
- Page 11 The Green Spot, together with the fast reading and decoding capabilities make the Gryphon I GD4132 readers the best choice to improve productivity in retail and office environments, hospitals, pharmacies, light industrial, warehouses and manufacturing plants.
-
Page 12: Connect/Disconnect Cable
Connect/Disconnect Cable Connect/Disconnect Cable Connect Host Interface Keyboard Wedge Interface Gryphon™ I GD4132... -
Page 13: Rs-232 Interface
Aim and Scan RS-232 Interface USB Interface Aim and Scan 012345 012345 Quick Reference Guide... -
Page 14: Parts Of The Imager
Parts of the Imager Parts of the Imager Scan Window Trigger Scanning Modes The imager can operate in one of several scanning modes: Trigger Single — When the trigger is pulled, scanning is activated until one of the following occurs: - a programmable duration has elapsed - a label has been read... - Page 15 Scanning Modes Flashing — The reader flashes on and off regardless of the trigger status. Always On — No trigger pull is required to read a barcode. Scanning is continually on. If the trigger is pulled, the reader acts as if it is in Trigger Single Mode. Double Read Timeout prevents undesired multiple reads while in this mode.
- Page 16 Scanning Modes Scanning Modes (continued) Scan Mode = Flashing Scan Mode = Always On Scan Mode = Object Sense Scan Mode = Trigger Object Sense Gryphon™ I GD4132...
-
Page 17: Programming Barcodes
Programming Barcodes Programming Barcodes For your convenience, this guide includes the program- ming barcodes required to configure the imager for use with different interface (terminal/host) types. See the Product Reference Guide (PRG) for more complete information about programming and configurable fea- tures. -
Page 18: Rs-232 Interface
Programming Barcodes RS-232 Interface To use an RS-232 interface, scan the barcode for the desired RS-232 host type. Select RS-232 Standard Select RS-232 Wincor Nixdorf Select RS-232 OPOS (for use with OPOS/UPOS/JavaPOS) IBM Interface (available with accessory cable) Select IBM Port 5B Select IBM Port 9B Gryphon™... -
Page 19: Usb Interface
Programming Barcodes USB Interface The imager attaches directly to a USB host, or a powered USB hub, and is powered by it. No additional power supply is required. When using a USB interface, the imager auto- detects the USB cable and defaults to the USB keyboard interface. -
Page 20: Keyboard Wedge Interface
Programming Barcodes Keyboard Wedge Interface To use a Keyboard Wedge interface, scan the barcode for the desired keyboard type. Select KBD-AT (AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95 w/Standard Key Encoding) Select KBD-AT-NK (IBM AT PS2 with standard key encoding but without external kbd.) Select KBD-AT-ALT (AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 &... - Page 21 Programming Barcodes Keyboard Wedge Interface — continued) Select KBD-XT (PC/XT w/Standard Key Encoding) Select KBD-IBM-3153 (for IBM Terminal 3153) Select KBD-IBM-M (for IBM Terminals 31xx, 32xx, 34xx, 37xx make only keyboard) Select KBD-IBM-MB (for IBM Terminals 31xx, 32xx, 34xx, 37xx make break keyboard) Select KBD-DIG-VT (for DIGITAL Terminals VT2xx, VT3xx, VT4xx) Quick Reference Guide...
-
Page 22: Country Mode
Country Mode Country Mode This feature specifies the country/language supported by the keyboard. Only the following interfaces support ALL Country Modes. • USB Keyboard (without alternate key encoding) • AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95 w/Std Key Encoding •... - Page 23 Country Mode COUNTRY MODE (continued) Country Mode = Belgium Country Mode = Britain Country Mode = Croatia* Country Mode = Czech Republic* Country Mode = Denmark* *Supports only the interfaces listed in the Country Mode feature description Quick Reference Guide...
- Page 24 Country Mode COUNTRY MODE (continued) Country Mode = France Country Mode = French Canadian Country Mode = Germany Country Mode = Hungary* Country Mode = Italy *Supports only the interfaces listed in the Country Mode feature description Gryphon™ I GD4132...
- Page 25 Country Mode COUNTRY MODE (continued) Country Mode = Japanese 106-key* Country Mode = Lithuanian Country Mode = Norway* Country Mode = Poland* Country Mode = Portugal* *Supports only the interfaces listed in the Country Mode feature description Quick Reference Guide...
- Page 26 Country Mode COUNTRY MODE (continued) Country Mode = Romania* Country Mode = Slovakia* Country Mode = Spain Country Mode = Sweden Country Mode = Switzerland* *Supports only the interfaces listed in the Country Mode feature description Gryphon™ I GD4132...
-
Page 27: Technical Features
Technical Features Technical Features Item Description Physical Characteristics White/Grey Color Black/Grey Height 7.1” / 181mm Dimensions Length 3.9” / 100mm Width 2.8” / 71mm Weight (without Approximately 6.3 ounces/180 g cable) Electrical Characteristics Input current at 5V = 460 mA (max) 2.5 mA (RS-232 sleep mode) Voltage &... - Page 28 Technical Features Item Description UPC/EAN/JAN, P2 /P5 add-ons; Code 39; Code 32; Code 128; Code 128 ISBT; Code 128 add-ons; Inter- leaved 2 of 5; Standard 2 of 5; Code 11; Codabar; Decode Capability EAN 128; GS1 DataBar™ Omnidirectional, GS1 DataBar™...
-
Page 29: Led And Beeper Indications
LED and Beeper Indications LED and Beeper Indications The imager’s beeper sounds and its LED illuminates to indicate various functions or errors on the reader. A “Green Spot” also lights to indicate a good read. The tables below list these indications. One exception to the behav- iors listed in the tables is that the reader’s functions are programmable, and may or may not be turned on. -
Page 30: Troubleshooting
Troubleshooting Troubleshooting Possible Problem Possible Solutions Cause Nothing happens Check system power. No power to the when the scan Ensure power supply is imager. button is pulled. connected. Interface or Ensure all cable con- power cables nections are secure. are loose. Ensure imager is pro- grammed to read the Imager not pro-... -
Page 31: Ergonomic Recommendations
Ergonomic Recommendations Ergonomic Recommendations In order to avoid or minimize the potential risk of ergonomic injury follow the recom- mendations below. Consult with your local Health & Safety Manager to ensure that you CAUTION are adhering to your company’s safety pro- grams to prevent employee injury. -
Page 32: Datalogic Limited Factory Warranty
Datalogic hardware products are warranted against defects in material and workmanship under normal and proper use. The liability of Datalogic under this warranty is limited to furnish- ing the labor and parts necessary to remedy any defect cov- ered by this warranty and restore the product to its normal operating condition. -
Page 33: Warranty Exclusions
Datalogic shall pay for the return of the product to Customer if the shipment is to a loca- tion within the country in which the Datalogic service center is located. Customer shall be responsible for paying all shipping charges, duties, taxes, and any other charges for products returned to any other locations. -
Page 34: Risk Of Loss
Datalogic Limited Factory Warranty DATALOGIC' S LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, ORAL OR WRITTEN, STATUTORY OR OTHERWISE, INCLUDING, WITHOUT LIMITA- TION, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FIT- NESS FOR A PARTICULAR PURPOSE, OR NONINFRINGEMENT. -
Page 35: Support Through The Website
Support Through the Website Support Through the Website Datalogic provides several services as well as technical support through its website. Log on to www.datalogic.com and click on the SUPPORT link which gives you access to: • Downloads by selecting your product model from the dropdown list in the Search by Product field for spe- cific Data Sheets, Manuals, Software &... -
Page 36: Cleaning Procedure
Be sure to turn off power and unplug the device from electrical outlet before clean- CAUTION Common Cleaning Solutions The cleaners and disinfectants listed below are recommended for use on Datalogic ADC’s Disinfectant-Ready Enclosures: Cleaners Disinfectants Formula 409® Glass and sur- CaviWipes™... -
Page 37: Cleaning Enclosure And Window Surfaces
Cleaning Procedure Cleaning enclosure and window surfaces Moisten a soft cloth with a recommended cleaning solution. Be sure to apply the solution to your cloth first. Wring excessive liquid from the cloth. Use the cloth to wipe down the surface of the unit. Use cotton swabs, lightly moistened, to reach in corners and crevices. - Page 38 Cleaning Procedure NOTES Gryphon™ I GD4132...
- Page 40 ©2014-2018 Datalogic S.p.A. and/or its affiliates. All rights reserved. Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S.A. and the E.U. Datalogic USA, Inc 959 Terry Street | Eugene, OR 97402 |USA...
