3.
Slide the console so that the console pins
located at the bottom corners of the con-
sole move up and out from the slots, re-
moving the console from the front of the
machine. See Figure 7.

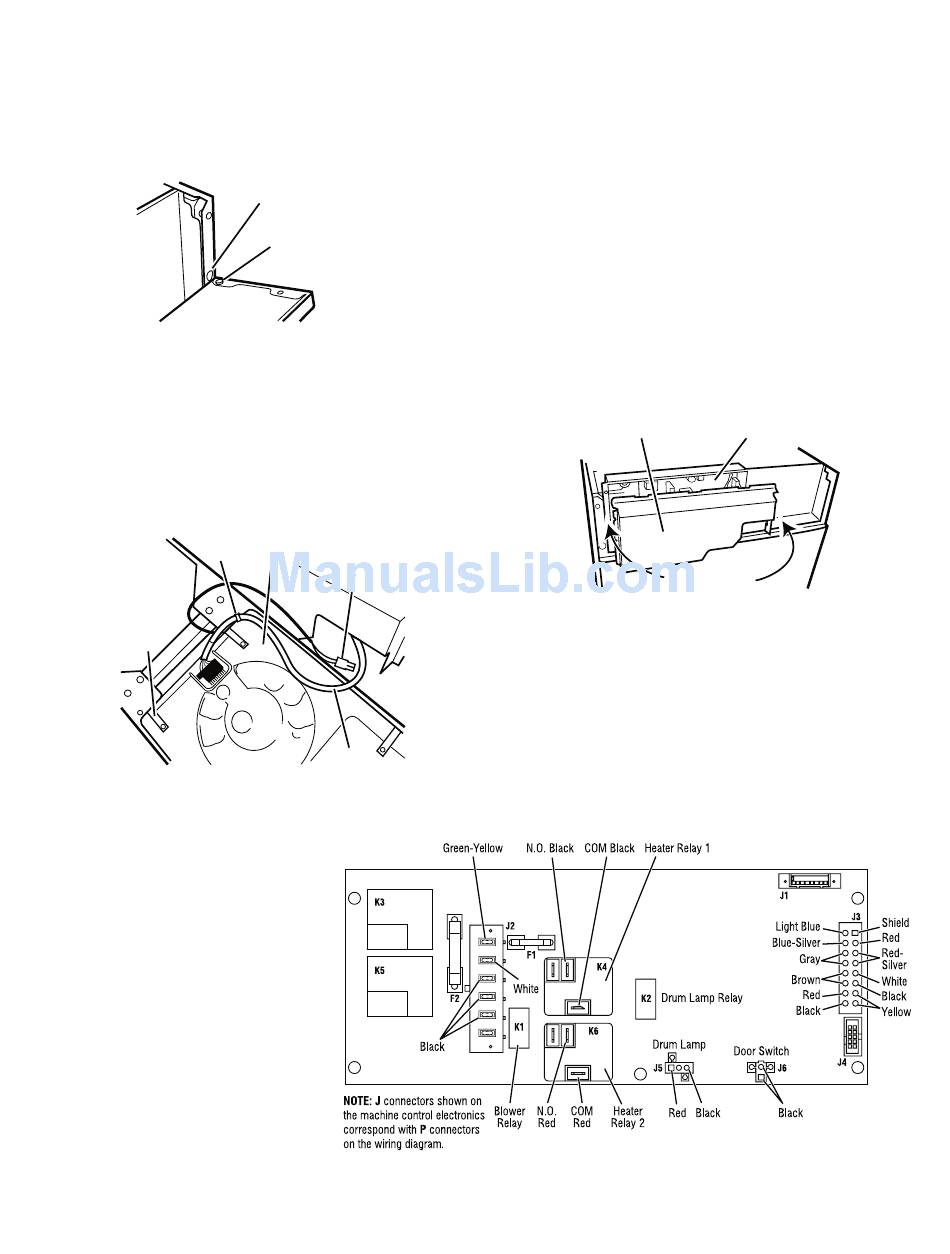

Figure 7. Slide console pins up and out of
slots
4.
Disconnect the door switch cable from
the control board and disconnect the UI
(User Interface) cable from the UI. Also
cut the cable tie holding the UI cable to
the console. See Figure 8.
Cable
Tie
Hold
Down
T abs
Figure 8. Disconnect cables to remove user
interface assembly from console.
Slot
Console
Pin
User Interface
Door Switch
Assembly
Cable
User
Interface Cable
Figure 10.
Removing the User Interface Assembly
5.
Remove the hold down tabs. See Figure 8.
6.
Remove the user interface assembly.
Removing the Machine Control
Electronics Assembly
5.
Referring to Figure 9, loosen the 4 screws
for cover, then slide cover to the right and
out from the machine control board.
6.
Remove all the wire connections to the
machine control board. See Figure 10.
7.
Remove screws that fasten the control
board to the mounting bracket, and pull it
from the mounting bracket.
Electronics Cover
Figure 9. Accessing the machine control
Machine control electronics
6-13
Machine Control
Machine Control
Board
Screw Locations
electronics.
