- Page 1 CABINET PARTS REFRIGERATOR For Model: KSBP25INSS03 (Stainless Steel) 04−07 Printed In U.S.A. (rrm) Part No. W10133384 Rev.A...
-

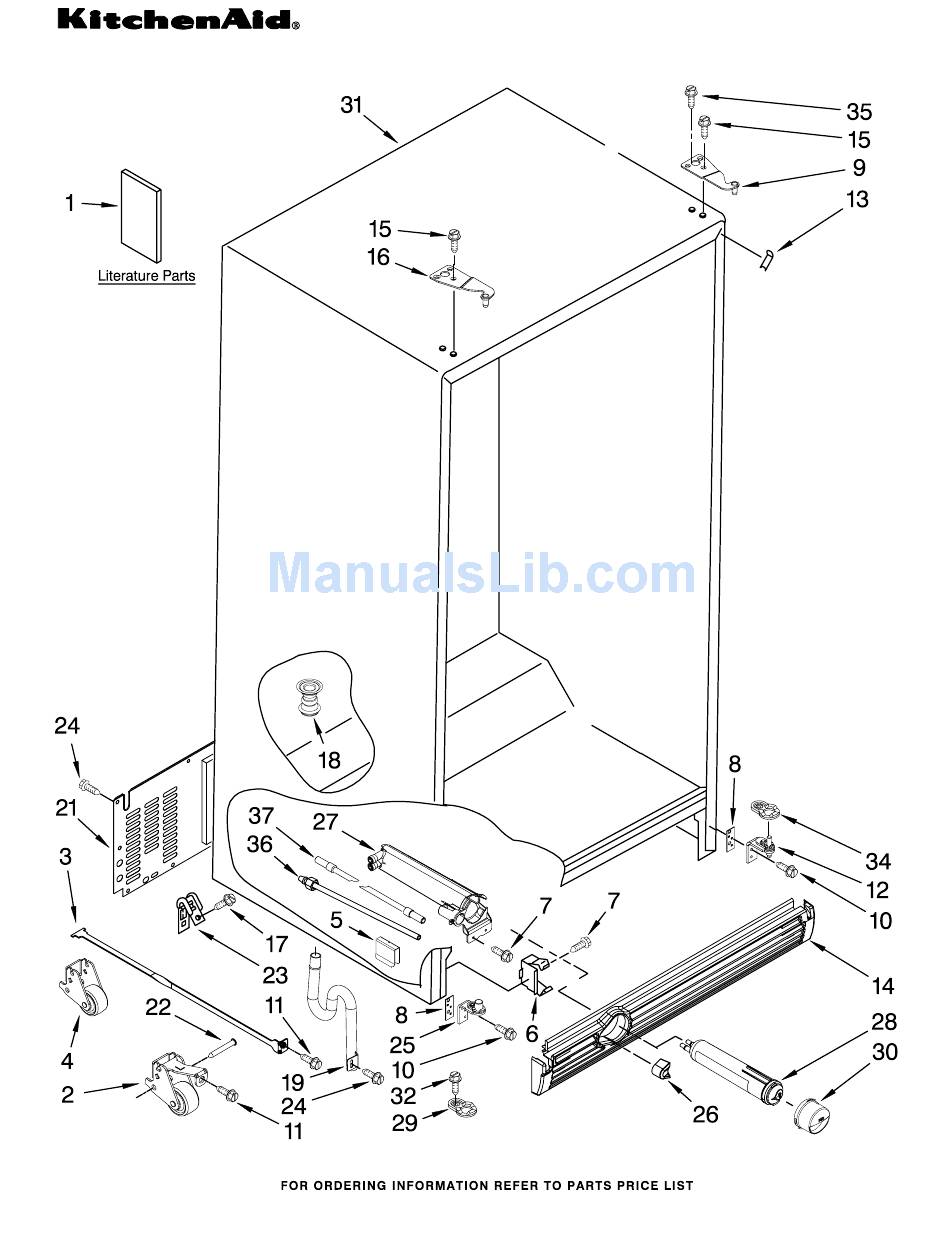

Page 2: Cabinet Parts
2223263 Strap, Roller 2306949 Roller, Rear (2) 2223388 Clip, Retainer (4) 2155013 Clip, Grille 489478 Screw 2223545 Shim Hinge Top, RC 2307008B Black CABINET PARTS For Model: KSBP25INSS03 (Stainless Steel) Illus. Part DESCRIPTION 3400113 Screw 3400243 Screw 2307179 Hinge Assembly, Bottom−RC... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS W10133384 For Model: KSBP25INSS03 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2224121 Escutcheon, Meat Pan Control 2224123 Slide Meat Pan Control 1118894 Switch, Rocker 2188820 Thermistor 2223456 Ladder, Shelf (2) 2301234 Housing, Door Control... -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Model: KSBP25INSS03 (Stainless Steel) Illus. Part DESCRIPTION 2224061 Shelf Assembly, Cantilever (2) 2301025 Button, Humidity 2301026 Slide, Humidity 2301117 Gasket, Side (2) 2203027 Cover, Meat Pan (Includes Items 13, 14, 15 & 20) 2301023 Snack Pan (Includes 30 &... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Model: KSBP25INSS03 (Stainless Steel) W10133384... - Page 6 FREEZER LINER PARTS For Model: KSBP25INSS03 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 2223777 Spacer, Slide (2) 2254611 Basket, Deep (2) 2223500 Shelf Assembly, Cantilever (2) 2224053 Front, Basket 2223782 Front−Frzr Basket Shelf Track 2223787 Right Side...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Model: KSBP25INSS03 (Stainless Steel) W10133384... - Page 8 MOTOR AND ICE CONTAINER PARTS For Model: KSBP25INSS03 Illus. Part 2223317 Ice Bin 2317256 Crusher Bin 2317240 Auger 2258220 Washer 1119007 Spacer, Flat (4) 2317248 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2) 2257020 Blade, Fixed 2257023 Blade, Rotary...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: KSBP25INSS03 (Stainless Steel) W10133384... - Page 10 REFRIGERATOR DOOR PARTS For Model: KSBP25INSS03 (Stainless Steel) Illus. Part DESCRIPTION Refrigerator Door (Includes #7) 2307195B Black 2203087K Trim, Shelf 2255421 Dairy Door 2223883 Caddy, Can Trim, Door Top 2224096S Stainless Steel Door Gasket, Magnetic 2223909 Black Handle 2223821S Stainless Steel...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Model: KSBP25INSS03 (Stainless Steel) W10133384... - Page 12 FREEZER DOOR PARTS For Model: KSBP25INSS03 (Stainless Steel) Illus. Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) 2327669B Black Handle 2223817S Stainless Steel Trim, Door Top 2224095S Stainless Steel Trim, Door Bottom 2223819S Stainless Steel 3400012 Screw 3196180 Screw...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Model: KSBP25INSS03 (Stainless Steel) W10133384... - Page 14 DISPENSER FRONT PARTS For Model: KSBP25INSS03 (Stainless Steel) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 3196537 Screw 2194719 Retainer, Levers 2304772 Spring, Torsion 2196195 Pin 2180353 Door, Ice 2304355 Door Mechanism Assembly 2205686 Mechanism Delay Grille, Overflow 2206670B Black 2221562 Water Fitting...
-
Page 15: Air Flow Parts
2223986 Fan Grommet (2) 2304241 Gasket 2310236 Harness, Fan Evaporator (Includes #6) 2155789 Gasket Cover 2203876 Gasket 2223413 Cover, Evaporator (Includes #11) 8281159 Screw 489478 Screw 2223395 Support, R.S 2203596 Support, L.S W10133384 AIR FLOW PARTS For Model: KSBP25INSS03 (Stainless Steel) -
Page 16: Control Parts
CONTROL PARTS For Model: KSBP25INSS03 (Stainless Steel) Illus. Part DESCRIPTION 2319753 Control Box (Includes #3) 2223882 Heat Shield Asm (Includes # 5) 2307037 Control Board Asm 2223506 Light Lens, Control Box 2223857 Light Socket 2326255 Light Bulb W10133384... -
Page 17: Unit Parts
UNIT PARTS For Model: KSBP25INSS03 (Stainless Steel) W10133384... - Page 18 488649 Screw 2223353 Tube, Condenser to Heat Loop 2307028 Electronic Control 2306932 Baseplate 489478 Screw 2188823 Evaporator 2161324 Clamp UNIT PARTS For Model: KSBP25INSS03 (Stainless Steel) Illus. Part DESCRIPTION 2188729 Fan, Motor 2223398 Tray, Evaporator 2224022 Heat Shield 2317845 Drier...
-
Page 19: Icemaker Parts
ICEMAKER PARTS For Model: KSBP25INSS03 (Stainless Steel) W10133384... - Page 20 ICEMAKER PARTS For Model: KSBP25INSS03 (Stainless Steel) Illus. Part DESCRIPTION 489084 Screw 2256096 Fitting, Water Tube 628379 Clip, Fuse 489478 Screw 2315533 Water Valve Asm 2208136 Tube Clip 2174358 Cover 488649 Screw 628228 Mold & Heater Assembly (Also Order 542638)
- Page 21 80051 Graphite W10134625 Apollo Grey Important: The spray paint is not to be used where the paint may make contact with the door gaskets. W10133384 For Model: KSBP25INSS03 (Stainless Steel) Illus. Part DESCRIPTION PAINT, BULK (1 qt.) 799340 Enamel, Black...
