- Page 1 CABINET PARTS REFRIGERATOR For Model: KSBP25IVSS00 (Stainless Steel) 05−08 Printed In U.S.A. (jdc) (eeb) Part No. W10206333 Rev. A...
-

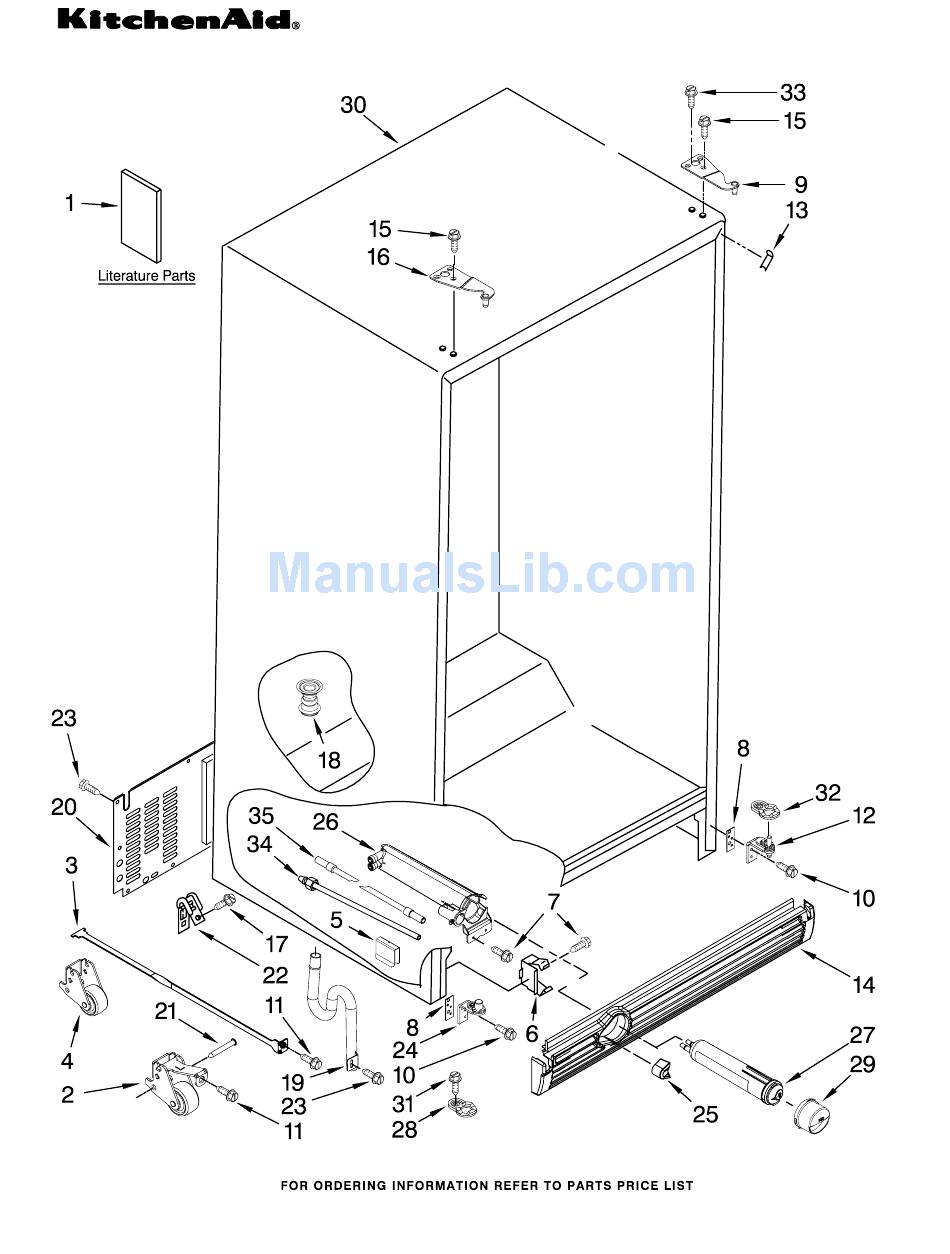

Page 2: Cabinet Parts
CABINET PARTS For Model: KSBP25IVSS00 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 3400113 Screw 2307152 Hinge Assembly, Literature Parts W10162434 Use & Care Guide 3400243 Screw Bottom−FC 2223996 Installation 2307179 Hinge Assembly, Button, Water Instructions Bottom−RC Filter W10142175 Service &... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Model: KSBP25IVSS00 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2223524 Escutcheon, Meat Pan Control 2223339 Slide Meat Pan Control 1118894 Switch, Rocker 2188820 Thermistor 2223456 Ladder, Shelf (2) 2301234 Housing, Door Control 489084 Screw 2301235 Slide, Door Control 2171846 Release Valve... -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Model: KSBP25IVSS00 (Stainless Steel) Illus. Part DESCRIPTION 2224061 Shelf Assembly, Cantilever (2) 2301025 Button, Humidity 2301026 Slide, Humidity 2301117 Gasket, Side (2) 2203027 Cover, Meat Pan (Includes Items 13, 14, 15 & 20) 2301023 Snack Pan (Includes 30 &... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Model: KSBP25IVSS00 (Stainless Steel) W10206333... - Page 6 FREEZER LINER PARTS For Model: KSBP25IVSS00 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 2223777 Spacer, Slide (2) 2223811 Basket, Deep (2) 2223500 Shelf Assembly, Cantilever (2) 2224053 Front, Basket Shelf Track 2223787 Right Side 2223788 Left Side 2254615 Shelf, Fixed 2223812 Basket, Lower 842534 Clip, Air Duct (2)
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Model: KSBP25IVSS00 (Stainless Steel) W10206333... - Page 8 MOTOR AND ICE CONTAINER PARTS For Model: KSBP25IVSS00 (Stainless Steel) Illus. Part DESCRIPTION 2223317 Ice Bin 2317256 Crusher Bin 2317240 Auger 2258220 Washer 1119007 Spacer, Flat (4) 2317248 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2) 2257020 Blade, Fixed 2257023 Blade, Rotary 2317239 Block, Blade 489229 Roll Pin...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: KSBP25IVSS00 (Stainless Steel) W10206333... - Page 10 REFRIGERATOR DOOR PARTS For Model: KSBP25IVSS00 (Stainless Steel) Illus. Part DESCRIPTION Refrigerator Door (Includes #7) 2307195B Black 2203087K Trim, Shelf 2255421 Dairy Door 2223883 Caddy, Can Trim, Door Top 2224096S Stainless Steel Door Gasket, Magnetic 2223909 Black Handle 2223821S Stainless Steel 3196537 Screw 2223879 Dairy Compartment 3196180 Screw...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Model: KSBP25IVSS00 (Stainless Steel) W10206333... - Page 12 FREEZER DOOR PARTS For Model: KSBP25IVSS00 (Stainless Steel) Illus. Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) 2327669B Black Handle 2223817S Stainless Steel Trim, Door Top 2224095S Stainless Steel Trim, Door Bottom 2223819S Stainless Steel 3400012 Screw 3196180 Screw 2223559K Shelf Bin (3) Door Gasket, Magnetic...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Model: KSBP25IVSS00 (Stainless Steel) W10206333... - Page 14 DISPENSER FRONT PARTS For Model: KSBP25IVSS00 (Stainless Steel) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 3196537 Screw 2194719 Retainer, Levers 2304772 Spring, Torsion 2196195 Pin 2180353 Door, Ice 2304355 Door Mechanism Assembly 2205686 Mechanism Delay Grille, Overflow 2206670B Black 2221562 Water Fitting Assembly (Includes Water Tube) Lever, Ice...
-
Page 15: Air Flow Parts
AIR FLOW PARTS For Model: KSBP25IVSS00 (Stainless Steel) Illus. Part DESCRIPTION 2182120 Fan Scroll 2223733 Retainer, Fan Motor 2223298 Air Scoop 2223303 Air Duct, Upper 2223297 Air Duct Freezer 2321799 Bi−Metal, Defrost 2259385 Fan Motor 2169142 Fan Blade 2223986 Fan Grommet (2) 2304241 Gasket 12 W10129813 Harness, Fan Evaporator... -
Page 16: Control Parts
CONTROL PARTS For Model: KSBP25IVSS00 (Stainless Steel) Illus. Part DESCRIPTION 1 W10175589 Control Box (Includes #3) 2223882 Heat Shield Asm (Includes # 5) 2307037 Control Board Asm 2223506 Light Lens, Control Box 2223857 Light Socket 2326255 Light Bulb W10206333... -
Page 17: Unit Parts
UNIT PARTS For Model: KSBP25IVSS00 (Stainless Steel) W10206333... - Page 18 UNIT PARTS For Model: KSBP25IVSS00 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 777070 Screw 2224022 Heat Shield 2 W10139483 Fan, Blade Following Parts Not Illustrated 22 W10143759 Drier 3 W10131059 Condenser 23 W10155907 Compressor and Optional Parts Not Included Assembly (Includes Items 8533859 Screw...
-
Page 19: Icemaker Parts
ICEMAKER PARTS For Model: KSBP25IVSS00 (Stainless Steel) W10206333... - Page 20 ICEMAKER PARTS For Model: KSBP25IVSS00 (Stainless Steel) Illus. Part DESCRIPTION 489084 Screw 2303216 Fitting, Water Tube 628379 Clip, Fuse 489478 Screw 2315533 Water Valve Asm 2208136 Tube Clip 2174358 Cover 488649 Screw 9 W10122527 Mold & Heater Assembly (Also Order 542638) 2304969 Cup, Water Fill 627843 Ejector 2198598 Ice Striper...
- Page 21 OPTIONAL PARTS (NOT INCLUDED) For Model: KSBP25IVSS00 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION PAINT, BULK (1 qt.) PAINT, PRESSURIZED SPRAY TORX SCREW WRENCH (12 oz.) 1117510 Torx Key 799340 Enamel, Black 350942 Primer, White 799344 Enamel, White 350939 Black 4392900 Enamel, Biscuit 350930 White...
