Pride Mobility Rally Owner's Manual page 21

REAR SECTION
The onboard battery charger, the charger power cord receptacle, the battery charger fuse, the batteries, the
electronic controller assembly, the main circuit breaker, the manual freewheel lever, and the motor/transaxle as-
sembly are located on the rear section of your scooter. See IX. “Disassembly and Assembly” for instructions on
removing the rear shroud. The anti-tip wheels are at the rearmost part of your scooter. See figure 7.
ONBOARD BATTERY
CHARGER
BATTERY CHARGER
FUSE
MOTOR/TRANSAXLE ASSEMBLY

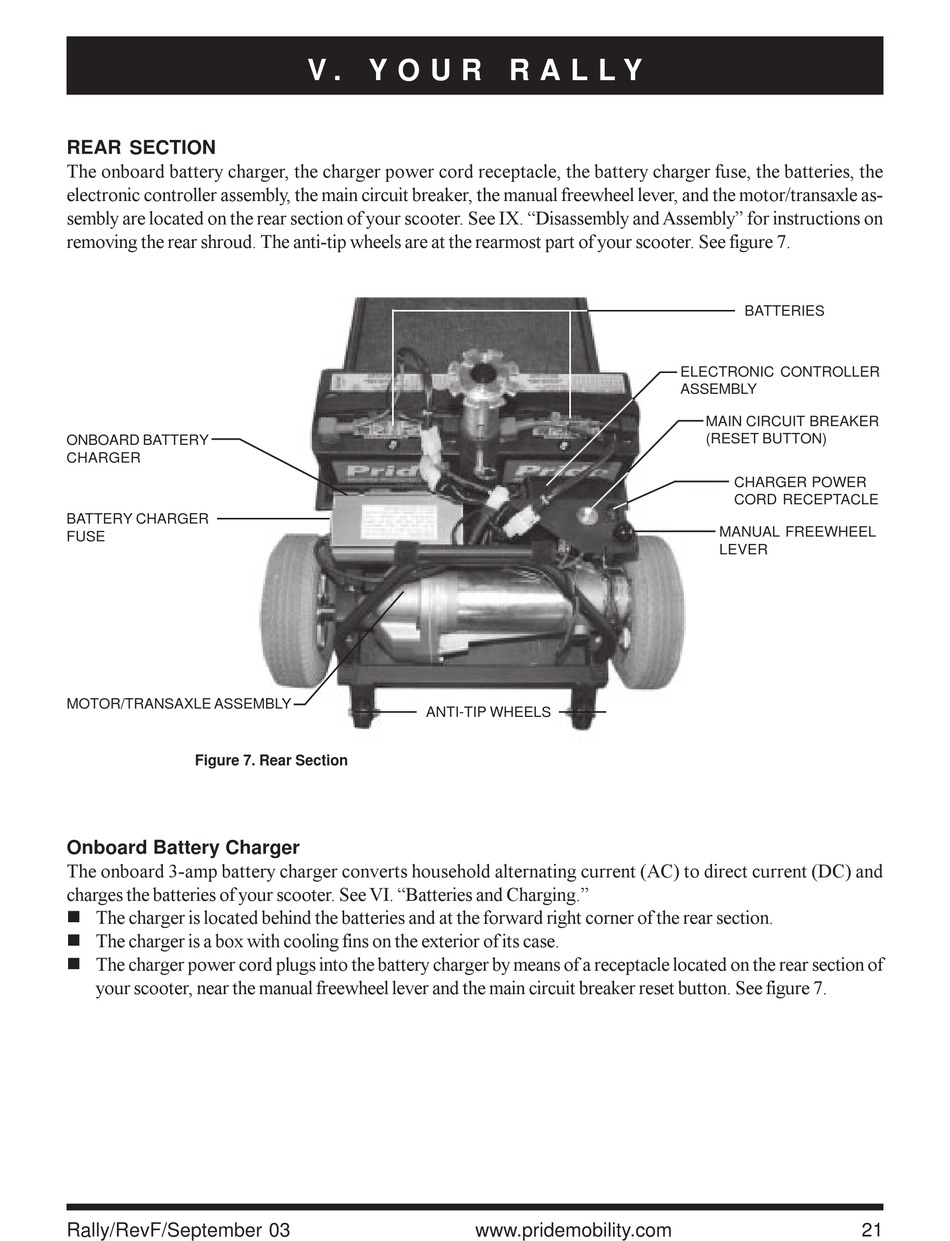

Figure 7. Rear Section
Onboard Battery Charger
The onboard 3-amp battery charger converts household alternating current (AC) to direct current (DC) and
charges the batteries of your scooter. See VI. “Batteries and Charging.”
n The charger is located behind the batteries and at the forward right corner of the rear section.
n The charger is a box with cooling fins on the exterior of its case.
n The charger power cord plugs into the battery charger by means of a receptacle located on the rear section of
your scooter, near the manual freewheel lever and the main circuit breaker reset button. See figure 7.
Rally/RevF/September 03
V . Y O U R R A L L Y
ANTI-TIP WHEELS
www.pridemobility.com
BATTERIES
ELECTRONIC CONTROLLER
ASSEMBLY
MAIN CIRCUIT BREAKER
(RESET BUTTON)
CHARGER POWER
CORD RECEPTACLE
MANUAL FREEWHEEL
LEVER
21
