  • Page 1 Qu ic k S tar t G ui de Ioline 300/350HF System...
  • Page 2 User Guide. Ioline Corporation is not responsible for injuries that may occur as a result of unsafe use. Ioline Corporation is not responsible for substandard operational performance as a result of failure to maintain the printer as described in Quick Start Guide and the 300 System User Guide.
  • Page 3 Ioline 300 System Qu i ck St ar t Gu i de...
  • Page 4 Images & Illustrations Figure 1. Front view of the 300 System and a close-up back of the machine ..xiv Figure 2. Unpacking the cutter ................... 15 Figure 3. The 301 Software installation screen..............16 Figure 4.

  • Page 5: Table Of Contents

    Visual Reference Guide Chapter 1 Assembly & Set-up Assembly ......................15 Unpacking the 300 System ....................15 Prepare the Production Area ..................... 15 Step 1: Install the 301 Software ..................16 Step 2: Connect the cutter to the PC ................17 Step 3: Install and adhesive sheet ..................
  • Page 6 This page intentionally left blank.

  • Page 7: Safety & Cautions

    Safety & Cautions The 300 and 350HF are powerful cutting machines. To avoid serious injury: Keep fingers, loose clothing and any objects that might get tangled in moving parts away from the cutter during opera- tion. Before using, make sure that the cutter has 9-in of clearance in front and behind the table to give the moving tray ad- equate space.

  • Page 8: Visual Reference Guide

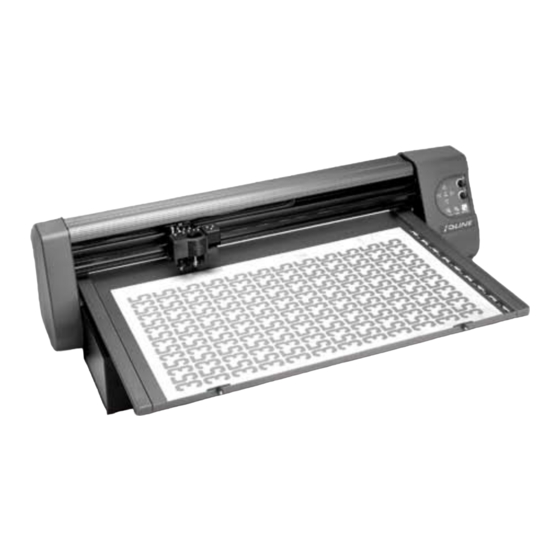

    E. Right end cover M. Serial port Keypad N. USB port G. Tray (removeable) O. Power connector Figure 1. Front view of the 300 System and a close-up photo of the port and power swith on the back of the machine. viii...

  • Page 9: Chapter 1 Assembly & Set-Up

    Check the Packing List and save all packing materials. Set the cutter on a stable surface. If you purchased an extra tray, lift it off the 300’s Table and set it aside. Remove the 4 screws holding the Table in place for shipping.

  • Page 10: Step 1: Install The 301 Software

    Note Power off the computer. Older 300 and 350HF Systems Connect the Ioline 301 Software key to the USB port (Figure 5). used a parallel key rather than USB, as shown below: Figure 5. Install the drivers, then insert the USB key into the PC.

  • Page 11: Step 2: Connect The Cutter To The Pc

    Choose an Adhesive Sheet (and backing material, if required) that are appropriate for the material you plan to cut. (See Fig- ure 8 to identify proper sheet and backing types. More infor- mation about choosing Adhesive Sheets is also located in the 300/350HF System User Guide.)
  • Page 12 Ioline 300/350HF System Quick Start Guide High Tack Scrim felt, leather, etching and stencil (HT) board. Order 107076 Medidum Tack A general purpose sheet, use with most (MT) twills. Order 107295 Low Tack Heatseal-backed or thin and fragile (LT) materials. Order 107093 Ultra Low Tack Paper or paper-backed materials.

  • Page 13: Step 4: Install The Material And Tray

    Chapter 1: Assembly & Set-up Step 4: Install the material and tray Remove the cover from the Adhesive Sheet and carefully ap- ply fabric to the Tray. Smooth all bubbles out of the material. (See Figure 10.) Figure 10. Apply the material on top of the Adhesive Sheet on the Tray. Slide the Tray onto the Table with the thumb nuts facing the front of the machine.

  • Page 14: Step 5: Select And Adjust The Blade

    Ioline 300/350HF System Quick Start Guide Step 5: Select and adjust the blade Caution Find one of the included blades in the Accessory Kit. Figure 11 The blades are very sharp shows blade information. and the tip is fragile. Use caution when inserting them into the blade holder.

  • Page 15: Index

    Index Symbols Drivers x, 16 301 Software x, xi, 16 Installation 16 Icons 16 Accessory Kit 15, 16, 17, 20 Adhesive Sheet x, xiv, 17, 19 Aligning on the tray 18 Key. See USB key Guidelines 18 Keypad xiv Arrow keys 17, 19 Assembly &...
  • Page 16 Safety & Cautions xiii, 15, 20 Serial port xiv Set Origin 19 Software. See 301 Software or Control Center Start/Stop key 17 Table xiv Thumb nuts xiv, 17, 19 Tray x, xiv, 18, 19, 20 Avoiding damage 20 USB key x, 16 USB port x, xiv, 16, 17 User Guide viii, 15, 17, 20...
