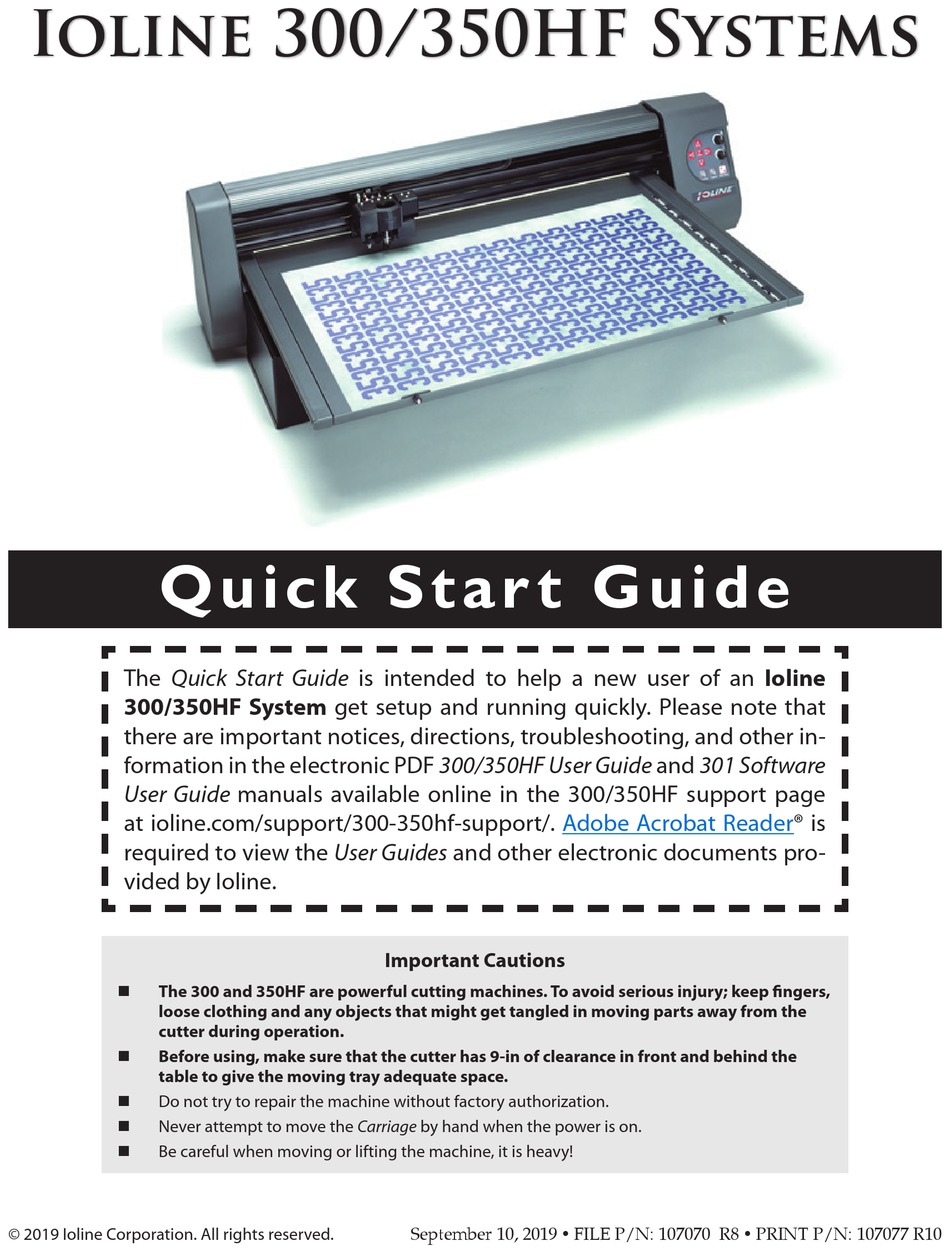

User Guides and other electronic documents pro- vided by Ioline. Important Cautions The 300 and 350HF are powerful cutting machines. To avoid serious injury; keep fingers, loose clothing and any objects that might get tangled in moving parts away from the cutter during operation.
Visual Reference Guide A. Left end cover H. Origin (starting point) B. Dust cover Thumb nuts (2) C. Carriage (design may Table (non-removable) vary) K. Leg (2) D. Adhesive sheet, mounted L. Power switch E. Right end cover M. Power connector Keypad N.
Assembly This Quick Start Guide shows how to assemble and set up the Ioline 300/350HF Systems. Consult the Acrobat PDF 300/350HF System ® User Guide, available online at ioline.com, for more detailed infor- mation about installation and operation. Adobe Acrobat viewer is ®...
Restart the computer only if instructed. Connect the Ioline 301 Software key to a USB port on the PC (see figure below). Ioline recommends NOT using a USB hub for the key. Windows will likely show messages about driver installation when the key is inserted the first time.
Page 5
Choose an Adhesive Sheet (and backing material, if required) that are appropriate for the material you plan to cut. See Figure Below to identify proper sheet and backing types. More infor- mation about choosing Adhesive Sheets is also available in the 300/350HF System User Guide.)
Page 6
Ioline 300/350HF Quick Start Guide High Tack Scrim felt, leather, etching and stencil (HT) board. Order 107076 Medium Tack A general purpose sheet, use with most (MT) twills. Order 107295 Low Tack Heatseal-backed or thin and fragile (LT) materials. Order 107093 Ultra Low Tack Paper or paper-backed materials.
Step 4: Install the material and tray Remove the striped cover from the Adhesive Sheet and care- Note fully apply fabric to the Tray. Smooth all bubbles out of the material (see figure below). Remember to remove material and cover DO NOT leave twill and other the adhesive sheet with the striped paper sheet when the cutter is not materials stuck on the adhesive...
The are great accessories for the ing in the foot. 300 and 350HF that make your Insert the blade holder in the business even more productive. jaw then tighten the clamp.
