Ioline 200HF Manual

Y axis subsystem

Advertisement

Quick Links

Y axis belt tensioner
(Under Left Cover)
Step 1. - Removing the Covers
1.
Shut off the cutter and remove the power and computer data cables.
Remove the left (2 screws) end cover. See Removing the End Covers in the 300
2.
service manual available for download on www.ioline.com
Step 2. - Removing the Carriage
1.
Mark the screw on the Y axis belt
tensioner with "White-Out" to mark
the position of the screw before you
loosen it. Loosen the allen screw on
the belt tensioner until the the bracket
is flat against the end plate. Do not
remove the screw.

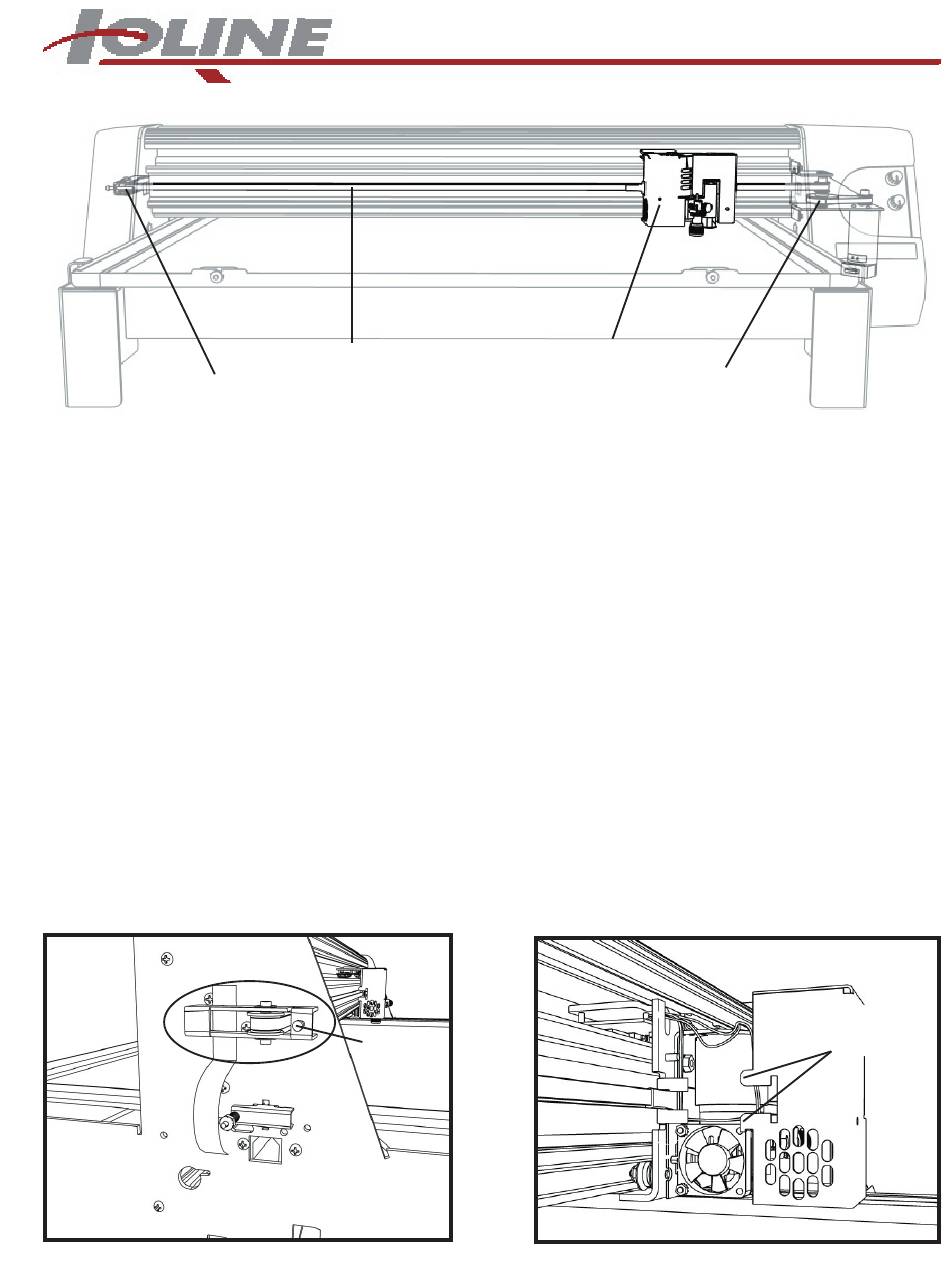

Y Axis Belt Tensioner
Y Axis Subsystem
Y axis Drive Belt
CARRIAGE REPLACEMENT
200/300/350HF
9/64" Hex
Carriage Assembly
Y axis transmission
(Under Right cover)
(350 HF shown)
2. Remove the cover of the carriage
by pulling out on both sides of the
cover.
Note: It is not neccessary to remove
the cover on a 200/300 System
cutter.
Removing the cover
P/N: 107693
Pull here
(Both sides of cover)

Advertisement

loading

Summary of Contents for Ioline 200HF

  • Page 1 Shut off the cutter and remove the power and computer data cables. Remove the left (2 screws) end cover. See Removing the End Covers in the 300 service manual available for download on www.ioline.com Step 2. - Removing the Carriage Mark the screw on the Y axis belt 2.
  • Page 2 350HF ONLY: Loosen the Top Grasp one of the metal “T”-con- nectors on the end of the Y wheel locking nut on the carriage. Axis belt and pull it toward the This dis-engages the top spring center of the carriage until it pops wheel so the carriage can be free.
  • Page 3 Pull the carriage slowly toward the Carefully pull the flex cable from front of the machine being sure the socket on the carriage. not to damage the flex cable. Black or Blue Tip Flex Cable Flex Cable Flex Cable (Plugged in) Flex Cable (Unplugged) Note: If you are replacing the Flex cable, move on to Page 68 “Removing the flex cable Step 3.
  • Page 4 Mount the new carriage by aligning the upper wheel with the upper rail, push down on the belt attachment fingers, then slip the lower wheels onto the bottom rail and let the carriage rest. Rotate the bottom while pushing down Align the tensioner assembly with Hook the metal “T”...
  • Page 5: Chapter 5 - Repair And Maintenance

    Tighten the screw until you have a moderate amount of ten- reach the “White-Out” mark on the sion. screw. Plug the power cord into the machine and perform test cuts. If problems arrise, contact Ioline Customer Service.
