OM-Gryphon™
QUICK REFERENCE GUIDE
820001461eng (Rev. C)
UPDATES AND LANGUAGE AVAILABILITY
07
UK/US
The latest drivers and documentation updates for this product are available on
Internet.
Log on to: www.scanning.datalogic.com
I
Su Internet sono disponibili le versioni aggiornate di driver e documentazione di
questo prodotto. Questo manuale è disponibile anche nella versione italiana.
Collegarsi a: www.scanning.datalogic.com
F
Les versions mises à jour de drivers et documentation de ce produit sont
disponibles sur Internet. Ce manuel est aussi disponible en version française.
Cliquez sur : www.scanning.datalogic.com
D
Im Internet finden Sie die aktuellsten Versionen der Treiber und Dokumentation für
dieses Produkt. Die deutschsprachige Version dieses Handbuches ist auch
(EMC)
verfügbar.
; P 3:
ART
Adresse : www.scanning.datalogic.com
EVICES (SRD)
40 GH
Z
(SRD); R E
ADIO
1000 MH Z
500
En Internet están disponibles las versiones actualizadas de los drivers y
ESSENTIAL
R&TTE
THE documentación de este producto. También está disponible la versión en español
de este manual.
– Dirección Internet : www.scanning.datalogic.com

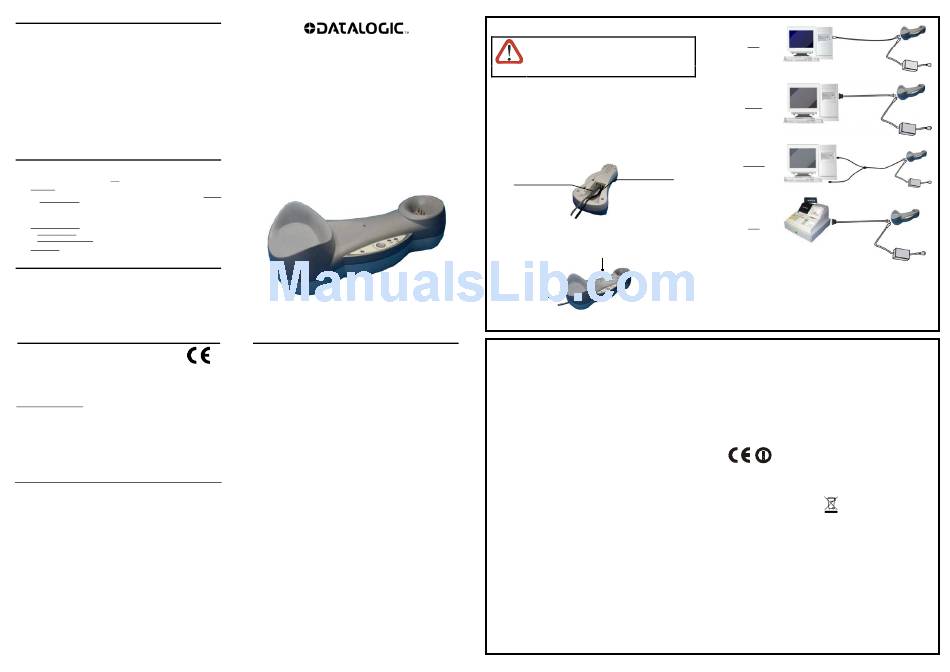

SYSTEM CONNECTIONS
Connections should always be made with power off!
Avoid touching the charging contacts since this may result in
reduced base station performance.
CAUTION
You can connect the OM-Gryphon™ cradle to the Host through the dedicated
connector, using the cable corresponding to the desired interface type.
CONNECTING AND DISCONNECTING THE INTERFACE CABLE
To connect the OM-Gryphon™:
1. Connect the OM-Gryphon™ to the appropriate interface cable, which must
be simply plugged into the Host connector on the base of the cradle.
2. Connect the cradle to an external power supply, see the figure below.
Host Interface Cable
OM-Gryphon™ - Bottom View
To disconnect the cable, insert a paper clip or other similar object into the hole
corresponding to the Host connector on the body of the cradle. Push down on the clip
while unplugging the cable. Refer to the following figure:
OM-Gryphon™ - Disconnecting the Cable
9/07
COMPLIANCE
This device must be opened by qualified personnel only.
FCC COMPLIANCE
Modifications or changes to this equipment without the expressed written approval
of Datalogic could void the authority to use the equipment.
This device complies with PART 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference which
may cause undesired operation.
This device contains FCC ID U40015.
USB
RS232
WEDGE
Power Supply
PEN
OM-GRYPHON™ CONFIGURATION
Once you have performed system connection, you can configure the
OM-Gryphon™ cradle using the Gryphon™ M reader (the one paired to the cradle
with the Bind command). Select one of the interface codes according to your
application. For the Gryphon™ Mx30 configuration, refer to the "Gryphon™ Mx30
Quick Reference".
POWER SUPPLY
This device is intended to be supplied by a UL Listed/CSA Certified Power Unit
marked "Class 2" or LPS power source rated 9-28 V DC, minimum 0.8 A which
supplies power directly to the cradle.
RADIO COMPLIANCE
Contact the competent authority responsible for the management of radio
frequency devices of your country to verify any possible restrictions or licenses
required.
Refer to the web site http://europa.eu.int/comm/enterprise/rtte/spectr.htm for
further information.
WEEE COMPLIANCE
