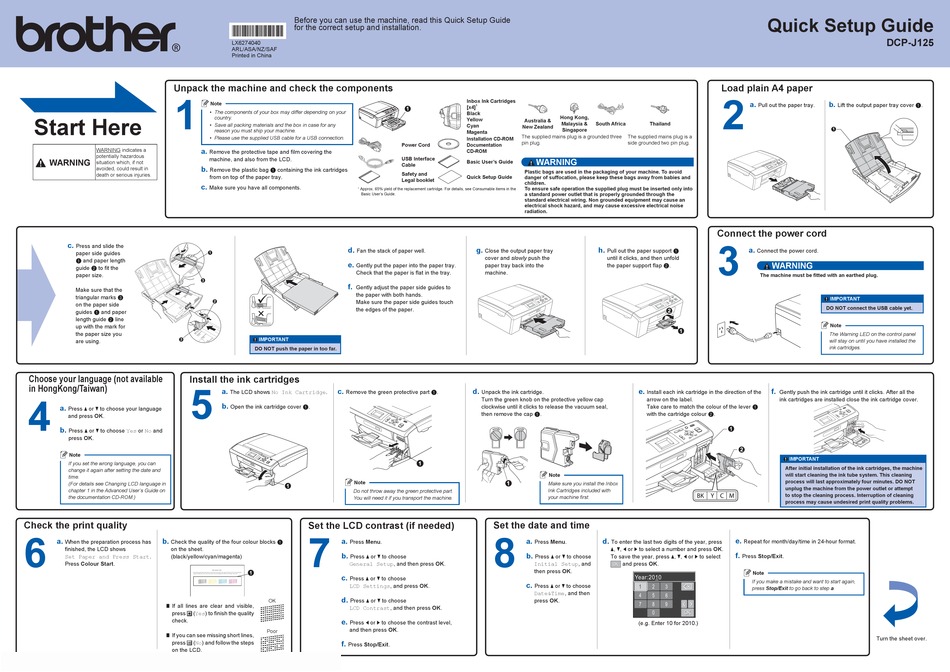

Brother DCP-J125 Quick Setup Manual

Unpack the machine and check the components
1
Start Here
WARNING indicates a a.
potentially hazardous
WARNING
situation which, if not
avoided, could result in b.
death or serious injuries.
c.
c.
Press and slide the
paper side guides
a and paper length
guide b to fit the
paper size.
3
Make sure that the
triangular marks c
on the paper side
guides a and paper
length guide b line
up with the mark for
the paper size you
3
are using.
Choose your language (not available Install the ink cartridges
5
in HongKong/Taiwan)
4
a.
Press a or b to choose your language
and press OK.
b.
Press a or b to choose Yes or No and
press OK.
Note
If you set the wrong language, you can
change it again after setting the date and
time.
(For details see Changing LCD language in
chapter 1 in the Advanced User's Guide on
the documentation CD-ROM.)
Check the print quality
6
a. b.
When the preparation process has Check the quality of the four colour blocks a
finished, the LCD shows on the sheet.
Set Paper and Press Start. (black/yellow/cyan/magenta)
Press Colour Start.
If all lines are clear and visible,
o
press (Yes) to finish the quality
check.
If you can see missing short lines,
o
press (No) and follow the steps
on the LCD.
Before you can use the machine, read this Quick Setup Guide
for the correct setup and installation.
LX6274040
ARL/ASA/NZ/SAF
Printed in China
Note
• The components of your box may differ depending on your
country.
• Save all packing materials and the box in case for any
reason you must ship your machine.
• Please use the supplied USB cable for a USB connection.
Remove the protective tape and film covering the
machine, and also from the LCD.
Remove the plastic bag a containing the ink cartridges
from on top of the paper tray.
Make sure you have all components.
1 Approx. 65% yield of the replacement cartridge. For details, see Consumable items in the
Basic User's Guide.
d.
Fan the stack of paper well.
1
e.
Gently put the paper into the paper tray.
Check that the paper is flat in the tray.
f.
Gently adjust the paper side guides to
the paper with both hands.
Make sure the paper side guides touch
2
the edges of the paper.
IMPORTANT
DO NOT push the paper in too far.
a. c.
The LCD shows No Ink Cartridge. Remove the green protective part a.
b.
Open the ink cartridge cover a.
Note
1
Do not throw away the green protective part.
You will need it if you transport the machine.
Set the LCD contrast (if needed)
7
a.
Press Menu.
b.
Press a or b to choose
General Setup, and then press OK.
1
c.
Press a or b to choose
LCD Settings, and press OK.
d.
OK Press a or b to choose
LCD Contrast, and then press OK.
e.
Press d or c to choose the contrast level,
and then press OK.
Poor
f.
Press Stop/Exit.
Inbox Ink Cartridges
1
[x4]
1
Black
Hong Kong,
Yellow
Australia &
Malaysia &
Cyan
New Zealand
Singapore
Magenta
The supplied mains plug is a grounded three
Installation CD-ROM
pin plug.
Power Cord Documentation
CD-ROM
USB Interface
WARNING
Basic User's Guide
Cable
Plastic bags are used in the packaging of your machine. To avoid
Safety and

Quick Setup Guide

danger of suffocation, please keep these bags away from babies and
Legal booklet
children.
To ensure safe operation the supplied plug must be inserted only into
a standard power outlet that is properly grounded through the
standard electrical wiring. Non grounded equipment may cause an
electrical shock hazard, and may cause excessive electrical noise
radiation.
g.
Close the output paper tray
cover and slowly push the
paper tray back into the
machine.
d.
Unpack the ink cartridge.
Turn the green knob on the protective yellow cap
clockwise until it clicks to release the vacuum seal,
then remove the cap a.
1
Note
1
Make sure you install the Inbox
Ink Cartridges included with
your machine fi rst.
Set the date and time
8
a.
Press Menu.
b.
Press a or b to choose
Initial Setup, and
then press OK.
c.
Press a or b to choose
Date&Time, and then
press OK.
Quick Setup Guide
Load plain A4 paper
2
a.
Pull out the paper tray.
South Africa Thailand
The supplied mains plug is a
side grounded two pin plug.
Connect the power cord
3
h. a.
Pull out the paper support a Connect the power cord.
until it clicks, and then unfold
WARNING
the paper support flap b.
The machine must be fi tted with an earthed plug.
2
1
e. f.
Install each ink cartridge in the direction of the
arrow on the label.
Take care to match the colour of the lever a
with the cartridge colour b.
1
2
e.
d.
To enter the last two digits of the year, press Repeat for month/day/time in 24-hour format.
a, b, d or c to select a number and press OK.
f.
Press Stop/Exit.
To save the year, press a, b, d or c to select
and press OK.
OK OK
Note
Year:2010
If you make a mistake and want to start again,
1 2 3
press Stop/Exit to go back to step a.
4 5 6
7 8 9
0 OK OK
(e.g. Enter 10 for 2010.)
DCP-J125
b.
Lift the output paper tray cover a.
1
IMPORTANT
DO NOT connect the USB cable yet.
Note
The Warning LED on the control panel
will stay on until you have installed the
ink cartridges.
Gently push the ink cartridge until it clicks. After all the
ink cartridges are installed close the ink cartridge cover.
IMPORTANT
After initial installation of the ink cartridges, the machine
will start cleaning the ink tube system. This cleaning
process will last approximately four minutes. DO NOT
unplug the machine from the power outlet or attempt
to stop the cleaning process. Interruption of cleaning
process may cause undesired print quality problems.
Turn the sheet over.
