Page 1

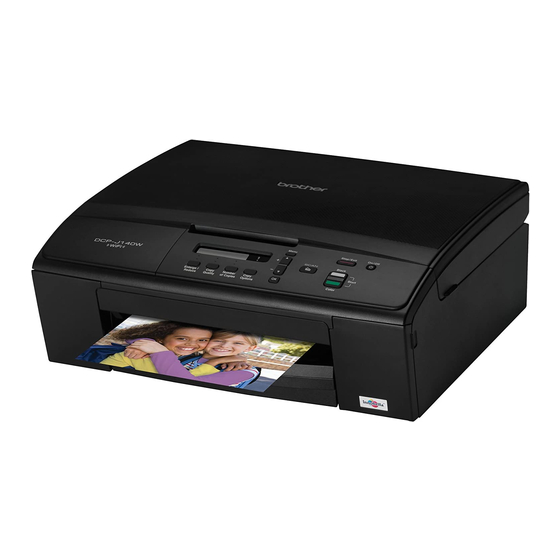

Advanced User’s Guide DCP-J140W Version 0 UK/IRE/GEN...
Page 2
This Guide provides useful information about PDF file / CD-ROM Network User’s Guide wireless network settings and security settings using the Brother machine. You can also find supported protocol information for your machine and detailed troubleshooting tips. This Guide provides useful information about...
Table of Contents General setup Memory storage.....................1 Sleep Mode ......................1 Auto Power Off ......................2 LCD display ......................2 Changing LCD language .................2 LCD Contrast....................2 Printing reports Reports ........................3 How to print a report ..................3 Making copies Copy settings ......................4 Stop copying....................4 Enlarging or reducing the copied image ............4 Changing copy speed and quality ..............5 Copy Options ......................6...
General setup Memory storage Sleep Mode Your menu settings are stored permanently, You can choose how long the machine will and in the event of a power failure will not be remain idle before it goes into Sleep Mode lost. Temporary settings (for example, Page (up to 60 minutes).
Chapter 1 Auto Power Off LCD display The Auto Power Off feature will turn the Changing LCD language machine off one hour after entering Sleep Mode. When this feature is Off, the machine You can change the LCD language. will not power off automatically. Note that the machine will not power off Press Menu.
Printing reports Reports The following reports are available: User Settings Prints a list of your settings. Network Config Prints a list of your Network settings. WLAN Report Prints a WLAN connection report. How to print a report Press Menu.
Making copies Copy settings Enlarging or reducing the copied image When you want to quickly change the copy settings temporarily for the next copy, use the You can choose an enlargement or reduction Copy keys. You can use different ratio. If you choose Fit to Page, your combinations of settings.
Making copies Press Mono Start or Colour Start. Note To change the default setting, follow the • Fit to Page does not work properly instructions below: when the document on the scanner glass is skewed more than 3 degrees. Using the Press Menu.
Chapter 3 Copy Options Making N in 1 copies or a poster (Page Layout) Adjusting Density The N in 1 copy feature can help you save paper by letting you copy two or four pages You can adjust the copy density to make onto one printed page.
Page 11
Making copies After the machine has scanned the Place the document face down in the page, press a (Yes) to scan the next direction shown below: page. 2in1(P) Next Page? a Yes b No Place the next page on the scanner ...
Chapter 3 2 in 1 ID Copy (Page Layout) After the machine has scanned the page, press a (Yes) to scan the next page. You can copy both sides of your identification card onto one page, keeping the original card Next Page? size.
Routine maintenance Cleaning and checking Wipe the outside of the machine with a dry, soft lint-free cloth to remove dust. the machine Cleaning the outside of the machine Clean the outside of the machine as follows: Important • Use neutral detergents. Cleaning with volatile liquids such as thinner or benzine Lift the output paper tray cover and will damage the outside surface of the...
Cleaning the machine’s Lift the scanner cover to release the lock (1). Gently push the scanner cover printer platen support down (2) and close the scanner cover (3). WARNING Be sure to unplug the machine from the electrical socket before cleaning the printer platen to avoid an electrical shock.
Routine maintenance Cleaning the paper pick-up Open the Jam Clear Cover (1) at the back of the machine. rollers Unplug the machine from the electrical socket. Pull the paper tray completely out of the machine. Note If the machine has been feeding multiple pages when there are only a few sheets of paper left in the tray, clean the Base Pad (1) with a soft lint-free cloth slightly...
Packing and shipping Checking the ink volume the machine You can check the ink that is left in the cartridge. When you transport the machine, use the Press Menu. packing materials that came with your machine. Follow the instructions below to Press a or b to choose 1.Ink.
Page 17
Routine maintenance Install the green protective part and then Do one of the following: close the ink cartridge cover. If you have connected the machine to your computer using the USB interface cable, go to step f. If you have not connected the interface cable, go to step h.
Page 18
Note (UK only) If you are returning your machine to Brother as part of an Exchange Service, pack only the machine. Keep all separate parts and printed materials to use with your “Exchange” machine. Close the carton and tape it shut.
Glossary This is a comprehensive list of features and terms that appear in Brother manuals. Availability of these features depends on the model you purchased. Density Changing the Density makes the whole image lighter or darker. Greyscale The shades of grey available for copying and scanning.
Index Numerics 2 in 1 ID Copy ..........8 Network Printing See Network User's Guide. Scanning Apple Macintosh See Software User's Guide. See Software User's Guide. Packing and shipping the machine ..12 Cleaning Power failure ..........1 paper pick-up rollers ......11 Print printer platen .........10 report ............
Page 21
Visit us on the World Wide Web http://www.brother.com/ This machine is approved for use in the country of purchase only. Local Brother companies or their dealers will only support machines purchased in their own countries.
