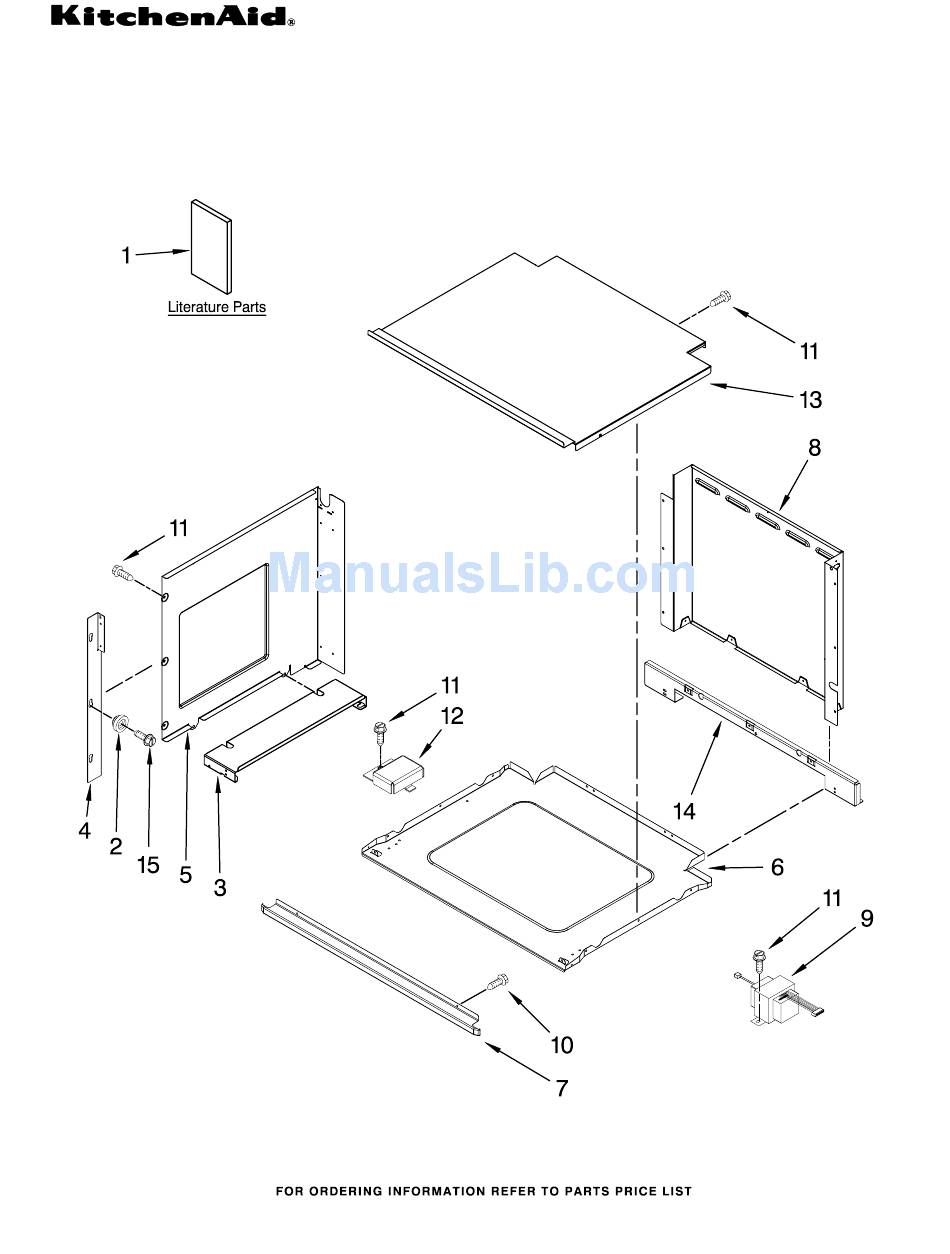

OVEN PARTS 27" BUILT−IN MICROWAVE For Models: KBHS179SSS04 (Stainless) Part No. W10250554 Rev. A 2−09 Litho in U.S.A. (amd)(bay) - Page 2 OVEN PARTS For Models: KBHS179SSS04 (Stainless) Illus. Part DESCRIPTION Literature Parts 8304424 Installation Instructions W10162181 Use & Care Guide Tech Sheet W10220960 English W10220961 French 8304375 Easy Set Guide Safer Cooking Tips 9762761 English 9759133 French 4448444 Grommet, Mounting Rail...
-
Page 3: Control Panel Parts
W10250554 CONTROL PANEL PARTS For Models: KBHS179SSS04 (Stainless) Illus. Part DESCRIPTION 1 W10216220 Panel, Control 3 W10169348 Bracket, Glass Touch 8304334 Keyboard, Glass Touch 5 W10118736 User Inferface 8303720 Backer, Control 8303887 Bracket,Enclosure 4449154 Screw 3400805 Screw 4449809 Screw... - Page 4 MICROWAVE DOOR PARTS For Models: KBHS179SSS04 (Stainless) Illus. Part DESCRIPTION 8304588BL Button, Plug (2) 2 W10143304 Screw 3 W10120488 Door, Microwave 4449154 Screw (4) 8303033 Bracket, Handle 6 W10237363 Glass Assembly 8303775SS Handle, Door 8304603SS Badge 9 W10143304 Screw W10250554...
- Page 5 CABINET AND STIRRER PARTS For Models: KBHS179SSS04 (Stainless) W10250554...
- Page 6 8205692 Transformer 4375427 Actuator 4375321 Fuse 4375231 Block, Fuse 19 W10130897 Bracket, Support 8205653 Filter, Noise 8205654 Thermostat 22 W10120113 Magnetron For Models: KBHS179SSS04 (Stainless) Illus. Part DESCRIPTION 23 W10130895 Plate, Air 4375319 Spring, Lamp 8205685 Spring 8205658 Housing, Lamp...
- Page 7 INTERNAL MICROWAVE PARTS W10250554 For Models: KBHS179SSS04 (Stainless) Illus. Part DESCRIPTION 1 W10120480 Crisp Plate 2 W10120484 Steamer 4452220 Rack, Convection 4 W10120486 Plate, Baking 5 W10120483 Rack 8205676 Turntable 8205678 Ring 8205677 Drive, Turn Table 9 W10120481 Handle, Pan...
-
Page 8: Optional Parts
OPTIONAL PARTS For Models: KBHS179SSS04 (Stainless) Illus. Part DESCRIPTION OPTIONAL PARTS NOT INCLUDED PAINT, TOUCH−UP (1/2oz.) 72017 White 261869 Cord Brown 72032 Black PAINT, SPRAY 350930 White 261900 Citrine White 830864 Black FOLLOWING PARTS NOT ILLUSTRATED 482338 Sealer, Silastic (3 oz.)
