KitchenAid KBHS109B Product Dimensions

PRODUCT MODEL SERIES
KBHS109B KBHS179B
ELECTRICAL CONNECTION
Microwave oven must be connected to the proper electrical voltage and
frequency as specified on the model/serial number rating plate. The
model/serial number rating plate is located underneath the control panel,
along the oven vent.
A. Model/serial number plate
The microwave oven rated 120/240 volt, 20-amp, has 4 wires (L1, L2, N
and G) in the flex conduit and should be connected to a 20-amp
maximum rated circuit, overcurrent protected on both the L1 and L2
circuits.
A time-delay fuse or circuit breaker is recommended.

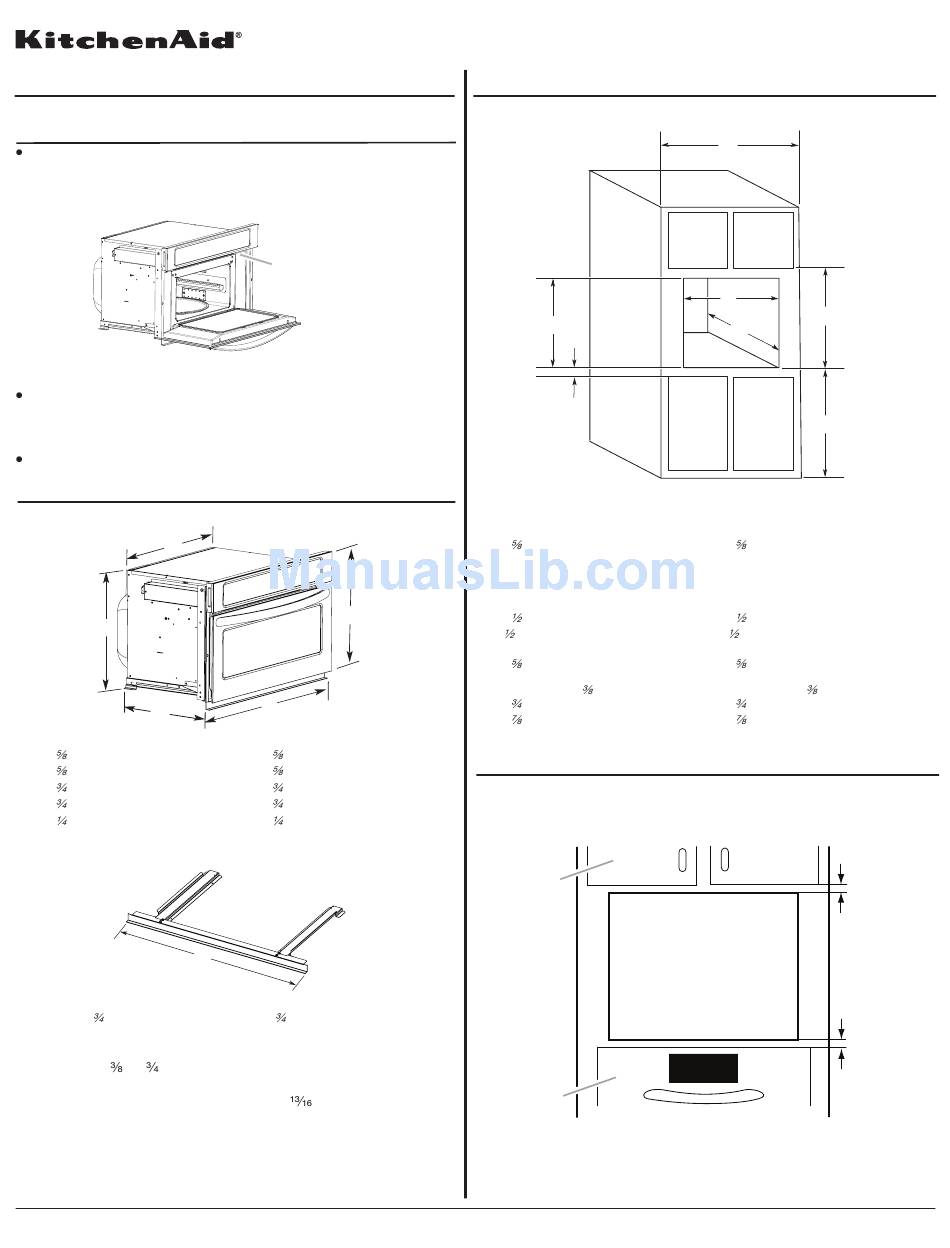

PRODUCT DIMENSIONS
27" (68.6 cm) and 30" (76.2 cm) Microwave Ovens
A
E
D
27" (68.6 cm) models
A. 25 " (65.1 cm) recessed width
B. 18 " (47.3 cm) overall height
C. 26 " (68.0 cm) overall width
D. 22 " (57.8 cm) overall depth
E. 17 " (43.8 cm) recessed height
27" (68.6 cm) and 30" (76.2 cm) Microwave Oven Spacer Kit
27" (68.6 cm) models
A. 26 " (67.9 cm)
overall width
NOTE: The microwave oven spacer kit will allow the microwave oven to be
installed in a 17 "-17 " (44.1-45.1 cm) maximum cutout height.
A microwave oven spacer kit is available from your dealer that will allow
the microwave oven to be installed in a 19"-19
maximum cutout height. Match the oven size to the following kits:
27" (68.6 cm) Stainless Steel - Model W10469901
30" (76.2 cm) Stainless Steel - Model W10469903
To order, see the "Assistance or Service" section of the Use and Care
Guide.
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
27" (68.6 cm) and 30" (76.2 CM) ELECTRIC BUILT-IN
CONVECTION MICROWAVE OVEN
A
B
C
30" (76.2 cm) models
A. 25 " (72.7 cm) recessed width
B. 18 " (47.3 cm) overall height
C. 29 " (75.6 cm) overall width
D. 22 " (57.8 cm) overall depth
E. 17 " (43.8 cm) recessed height
A
30" (76.2 cm) models
A. 29 " (75.6 cm)
overall width
" (48.3-50.2 cm)
CABINET DIMENSIONS
27" (68.6 cm) and 30" (76.2 cm) Microwave Ovens
F
E
27" (68.6 cm) models
A. 27" (68.6 cm) min. cabinet
width
B. 18 " (47.3cm) from bottom of
cutout to bottom of upper
cabinet door
C. 40 " (101.6 cm) bottom of
cutout to floor (recommended)
D. 25 " (64.8 cm) cutout width
E. 1 " (3.8 cm) min. bottom of
cutout to top of cabinet door
F. 17 " (44.7 cm) recommended
cutout height (will fit cutout
height from 17 " [44.1 cm] to
17 " [45.1 cm])
G. 21 " (55.5 cm) min. cutout
depth
MINIMUM INSTALLATION CLEARANCES
For proper installation, the following minimum clearances must exist above
and below the cabinet opening.
Installation Above Single Built-In Oven
A
B
Approved models: KEBK171B, KEBK101B, KEBS179B, KEBS109B and
KEBU109B.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
A
D
B
G
C
30" (76.2 cm) models
A. 30 " (76.2 cm) min. cabinet
width
B. 18 " (47.3cm) from bottom of
cutout to bottom of upper
cabinet door
C. 40 " (101.6 cm) bottom of
cutout to floor (recommended)
D. 28 " (72.4 cm) cutout width
E. 1 " (3.8 cm) min. bottom of
cutout to top of cabinet door
F. 17 " (44.7 cm) recommended
cutout height (will fit cutout
height from 17 " [44.1 cm] to
17 " [45.1 cm])
G. 21 " (55.5 cm) min. cutout
depth
A. Upper cabinet
B. Lower single oven
1"
(2.5 cm)
1"
(2.5 cm)
from top
of oven
Ref. W10351317A
9/17/12
