Ariens Path-Pro SS21E (938034 s/n 000101 & up)
• Step 1: Assemble Handlebar
• Step 2: Attach Discharge Chute
• Step 3: Check Auger Control Bar
• Step 4: Add Oil
• Step 5: Fill Engine Fuel Tank
• Step 6: Starting Engine
• Step 7: Stopping the Engine
READ AND UNDERSTAND ALL INSTRUCTION, WARNING, AND DANGER LABELS.
IMPORTANT: READ OPERATOR'S MANUAL AND ENGINE MANUAL
THOROUGHLY AND FOLLOW THE IMPORTANT SAFE OPERATION PRACTICES
BEFORE OPERATING.
Quick Start Guide
Advertisement
Table of Contents
Related Manuals for Ariens Path-Pro SS21E
Summary of Contents for Ariens Path-Pro SS21E

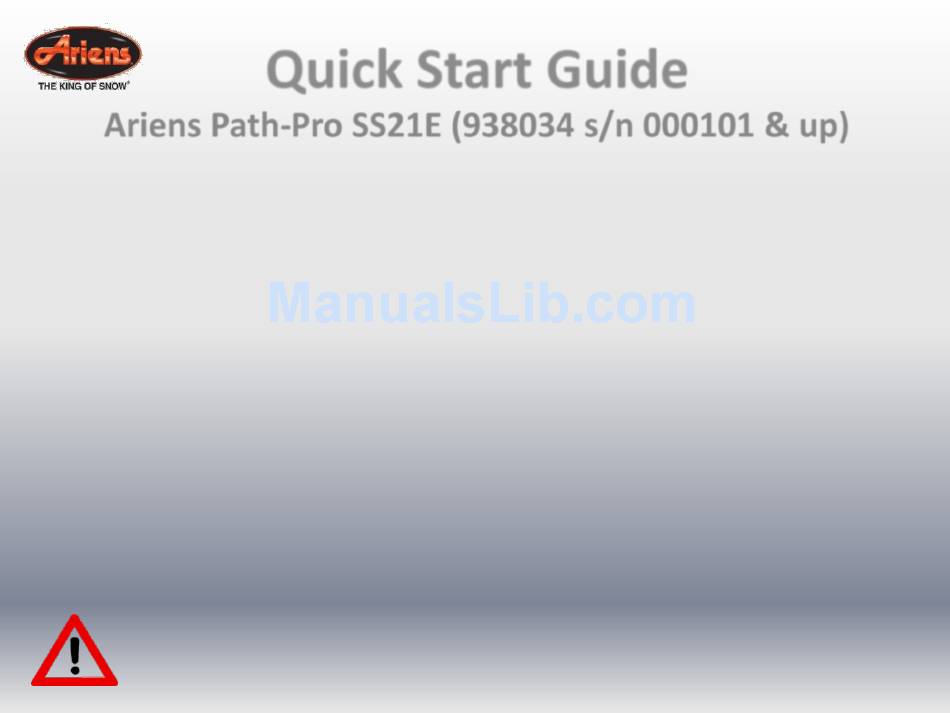

- Page 1 Quick Start Guide Ariens Path-Pro SS21E (938034 s/n 000101 & up) • Step 1: Assemble Handlebar • Step 2: Attach Discharge Chute • Step 3: Check Auger Control Bar • Step 4: Add Oil • Step 5: Fill Engine Fuel Tank •...
- Page 2 Step One: Assemble Handlebar Loosen knobs (#17) on each side of handlebar and rotate handlebar to operating position. Insert lower end of pivot bolt (#16) into handlebar holes. Ensure auger control cable is not pinched and tighten knobs. Do not over tighten.
- Page 3 Step Two: Attach Discharge Chute Place water guard ring (#18) on discharge chute hole. Position discharge chute (#8) onto ring. Position chute handle (#6) on top of discharge chute. Ensure holes in all pieces align and secure with three screws (#19).
- Page 4 Step Four: Check Auger Control Bar Engage auger control bar to ensure proper operation. There should be no excessive tension on cable. When auger control bar is disengaged, there should be slight slack in cable and no tension. NOTE: See Owner’s Manual if adjustment is necessary.
- Page 5 Step Five: Add Oil Remove cap from oil fill (#11) and add 16 oz. 5W-30 oil (#20). Check oil level on dipstick to ensure proper operating level. See Owner’s Manual for instructions. Replace cap.
- Page 6 Step Six: Fill Engine Fuel Tank Fill fuel tank. DO NOT OVERFILL! See FUEL TANK in Owners Manual.
- Page 7 Step Seven: Starting the Engine...
- Page 8 Starting Engine / Step A: Engine Switch Move engine switch to ON position.
- Page 9 Starting Engine / Step B: Fuel Shut-off Valve Open fuel shut-off valve. The fuel shut-off valve is open when it is horizontal. NOTE: When viewing the Sno-Thro from the operating position, the fuel shut-off valve is located on the right side of the engine, the fuel and oil door must be open to access it.
- Page 10 Starting Engine / Step C: Choke If engine is cold, move choke to FULL choke position. NOTE: Do not apply choke to a warm engine.
- Page 11 Starting Engine / Step D: Prime Push primer bulb twice. Note: Do not push primer bulb to start a warm engine.
- Page 12 Starting Engine/ Step E: (Manual Start) Slowly pull recoil starter handle until engine compression makes pulling difficult. Let starter rewind a little, and then pull smoothly and quickly to start engine. Repeat step as needed.
- Page 13 Starting Engine / Step E: (Electric Start) Connect a power cord to power cord receptacle and then plug cord into a wall outlet. CAUTION: Use cord that is minimum of 13 amp, 16 Gauge, 3 wire grounded plug, UL listed, CSA Certified. Cord must be labeled suitable for outdoor use.
- Page 14 Starting Engine / Step F: (Electric Start) Press and hold starter button. Note: Do not hold the electric starter button down for more than 5 seconds. Wait at least 1 minute before additional starting attempts.
- Page 15 Starting Engine / Step G: Warm up Allow the engine to warm up for 1-2 minutes, move the choke control to the CHOKE OFF position.
- Page 16 Step Eight: Stopping the Engine Release auger control bar. Turn engine switch to OFF position. Close fuel shut-off valve. NOTE: The fuel-shut off valve is closed when it is narrow and vertical when viewed from above.
- Page 17 Additional Resources • Refer to Owners Manual and Engine Manual • Contact Ariens Company www.ariens.com Phone: 920-756-4688 E-mail: info@ariens.com 2013 The Ariens Company. All rights reserved.
