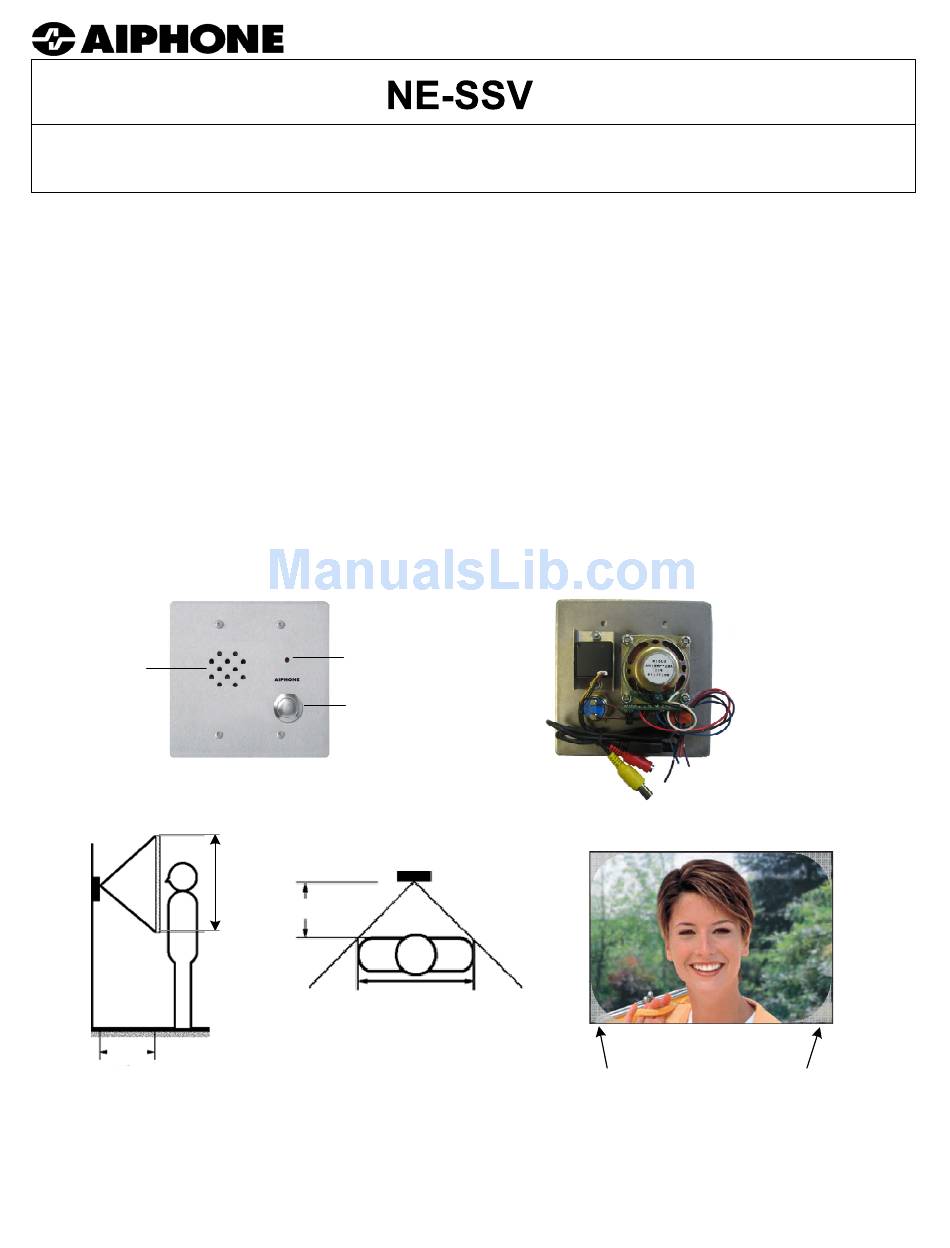

Aiphone NE-SSV Instructions For Use

Vandal Resistant Sub Station with built in Color Pinhole Camera for use with
The NE-SSV is a 2-gang vandal and weather resistant sub station designed for use with the NEM, NDR and NDRM
systems. It is constructed of 12 gauge stainless steel and has a stand alone color camera built in. It is also equipped with
an option for an external output contact closure when the sub station places a call (relay required). The unit either flush
mounts into a 2-gang box, or surface mounts using the SBX-2G. Each unit includes a 12V DC power transformer for the
camera, tamper proof screws, and a tool for installation.
INSTALLATION:
1. For flush mounting, install sub station in standard 2-gang electrical box with minimum 2-1/2" depth.
2. For surface mounting, use the SBX-2G surface mount enclosure (sold separately).
3. Only the 12V DC power transformer included should be used to power the NE-SSV camera.
5. IMPORTANT! These units are designed for use in normal weather conditions, and to allow drainage and
evaporation of moisture that naturally gets into the unit.
unit when installing, and do not use weather stripping around the perimeter of the box when
sealing the unit is required, the bottom must remain unsealed. Sealing the unit will prevent or inhibit moisture from
dissipating from inside the unit, which may cause corrosion or deterioration of the internal components over time.
Speaker
50cm
20"
The view achieved if the subject is 20" from the
camera is: 18" Vertically and 26½" Horizontally
0607
NEM, NDR, NDRM Systems
- INSTRUCTIONS -
Front View
Camera
Call button
45cm
18"
50cm / 20"
Do not apply caulking or silicone sealant around the
67cm
26½"
Back View
Transparent corner shadowing
on the picture is normal.
mounting. If
