Sagem MAxx1 Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
e

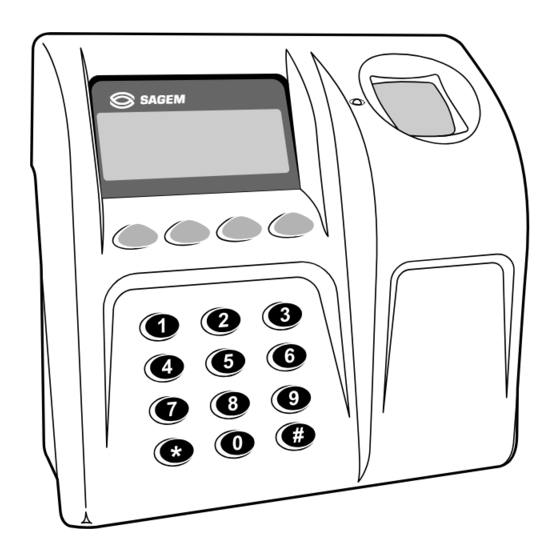

MAxx1 ADDENDUM

Installation guide

3
2
1
6
5
4
9
8
7
#
0
*
SK-0000011322-02 - June 2004
s

Advertisement

Table of Contents
loading

Related Manuals for Sagem MAxx1

Summary of Contents for Sagem MAxx1

  • Page 1: Installation Guide

    MAxx1 ADDENDUM Installation guide SK-0000011322-02 - June 2004...
  • Page 3 WELCOME TO SAGEM SA MORPHOACCESS™ MAXX1 VERSION Congratulations for choosing the high end and secured SAGEM SA MorphoAccess™ terminal. MorphoAccess™ provides an innovative and effective solution for access control or time and attendance applications using Fingerprint Verification or/and Identification. Among a range of alternative biometric techniques, the use of...

  • Page 4: Safety Instructions

    0 V to ground. Ground cable must be connected with the terminal block board fixation screw marked with universal ground symbol. Europe: SAGEM SA hereby declares that the SAGEM SA MorphoAccess™ has been tested and found compliant with the below listed standards as required by the EMC Directive 89/336/ EEC: EN55022 (1994)/EN55024 (1998) and by the low voltage Directive 73/23/EEC amended by 93/68/EEC: EN60950 (2000).
  • Page 5 Il y a danger d’explosion s’il y a remplacement incorrect de la batterie. Remplacer uniquement avec une batterie du même type ou d’un type équivalent recommandé par le constructeur. Éliminer de façon appropriée. SK-0000011322-02 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 6 A cable terminal connected to "earth security reference" must be tied to the fixation designed for (See bottom view). Anti-theft “Switch” Tamper Switch PSW1 Earth PSW2 Security Reference J110 Cable terminal SK-0000011322-02 SAGEM SA document. Reproduction and disclosure forbidden.

  • Page 7: General Descriptions

    GENERAL DESCRIPTIONS Mounting keyholes Anti-theft switch Cable entry Metal chassis SK-0000011322-02 SAGEM SA document. Reproduction and disclosure forbidden.

  • Page 8: Installation Procedure

    Anti-theft function is realized with a block placed on the wall, and hiding the opto light. In order to satisfy the security profile of the MorphoAccess™ Maxx1 as a high level of security, a connection may be done towards the supervisor system. Only the connected mode provides the high security level required for this terminal.

  • Page 9: Stage 3: Connecting The Chassis Assembly To The Cover Assembly

    Check that nothing is interfering with the switch and opto component. g) Connect cables to terminal blocks (see the detailed instructions in the following sections). Stage 3: Connecting the chassis assembly to the cover assembly No add-on. SK-0000011322-02 SAGEM SA document. Reproduction and disclosure forbidden.

  • Page 10: Stage 4: Closing Morphoaccess

    2 - The cover is fitted onto the chassis by rotating it. Assembled MorphoAccess Fit the two secured assembly screws. Use the special screw driver provided with the MAxx1 terminals. SK-0000011322-02 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 11 HOW TO UPGRADE MA201 TO MA301 External flash card SK-0000011322-02 SAGEM SA document. Reproduction and disclosure forbidden.

  • Page 12: Electrical Interfaces

    Tamper Switch PSW1 and PSW2 signals are connected to alarm management of the supervisor system. The supervisor system manages alarms. This system received the integrity information from Maxx1 with the 2 cables. SK-0000011322-02 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 13 Example of wiring: PSW1 PSW2 Alarm Input Pull down resistor MA xxx Supervisor SK-0000011322-02 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 14 CONFIGURING THE MAXX1 No add-on. SK-0000011322-02 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 15 MORPHOACCESS™ SOFTWARE USER INTERFACE − Password MorphoAccess xx1 terminal has a specific password "131664". For security reasons, SAGEM SA recommends strongly to the fitter man to configure it with a different value, and specific at each customer. − MorphoAccess xx1 out of order When the MorphoAccess xx1 is out of order, the MorphoAc- cess™...

  • Page 16: The Config Menu

    Host System Interface. Parameter Value Comment Send ID No ID is sent on FFD events 1 (default) ID is sent on FFD events (if cfg/Maccess/Admin/ Send = 1) SK-0000011322-02 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 17 The administrator may choose the finger presence detection mode. Parameter Value Comment Presence Detection No presence detection in identification mode 1 (default) Presence detection mode is activated in identifica- tion mode (sensor in standby, when no finger presence detection) SK-0000011322-02 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 18 (percentage of fake finger detected as real ones). This FRR (resp. FAR) is called FFD-FRR (resp. FFD-FAR). The overall reject rate of MAxx1 models is in fact: Standard MA FRR + FFD-FRR. Three security levels are proposed and provide different trade-off between FFD-FAR and FFD-FRR.

  • Page 19: Communication Protocol

    COMMUNICATION PROTOCOL See the "Host System Interface Addendum" documentation. SK-0000011322-02 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 20 MORPHOACCESS™ TECHNICAL CHARACTERISTICS This security of the MorphoAccess™ MAxx1 series terminal is strengthened. In fact a specific system (SAGEM SA patents) detects fake fingers such as paper copy. When a fake finger is detected by the terminal, the supervisor system is informed and no information is supplied to the user.
  • Page 21 Cleaning It is recommended to clean up the optronic sensor when this one is dirty. If dust is deposited, the MAxx1 performances are degraded. The cleaning material for sensor must be a soft material to prevent scratches. It is advised to clean daily the sensor with a lightly damp rag, to dry it and to wait 30 minutes before starting up again the terminal.
  • Page 22 H = 1.22 meter (= h optimum) Beta = 0° H = 1.00 meter Beta = +17° H = 1.40 meter Beta = -19° This case is not recommended. It has a poor finger ergonomics. SK-0000011322-02 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 23 − Clean the MorphoAccess zone with anti ESD spray. − Put under the MorphoAccess, a conductive carpet connected to earth reference. − Put an ionizing air system in MorphoAccess zone. SK-0000011322-02 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 24 ANNEX 4 - RESERVED CONFIGURATION KEYS No add-on. SK-0000011322-02 SAGEM SA document. Reproduction and disclosure forbidden.

  • Page 25: Drilling Template

    DRILLING TEMPLATE 97,4 49,3 SK-0000011322-02 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 26 SK-0000011322-02 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 27 Siège social : Le Ponant de Paris 27, rue Leblanc - 75512 PARIS CEDEX 15 - FRANCE Société anonyme à directoire et conseil de surveillance au capital de 36 405 229 € 562 082 909 RCS PARIS...
