11
. CRANKCASE/CRANKSHAFT

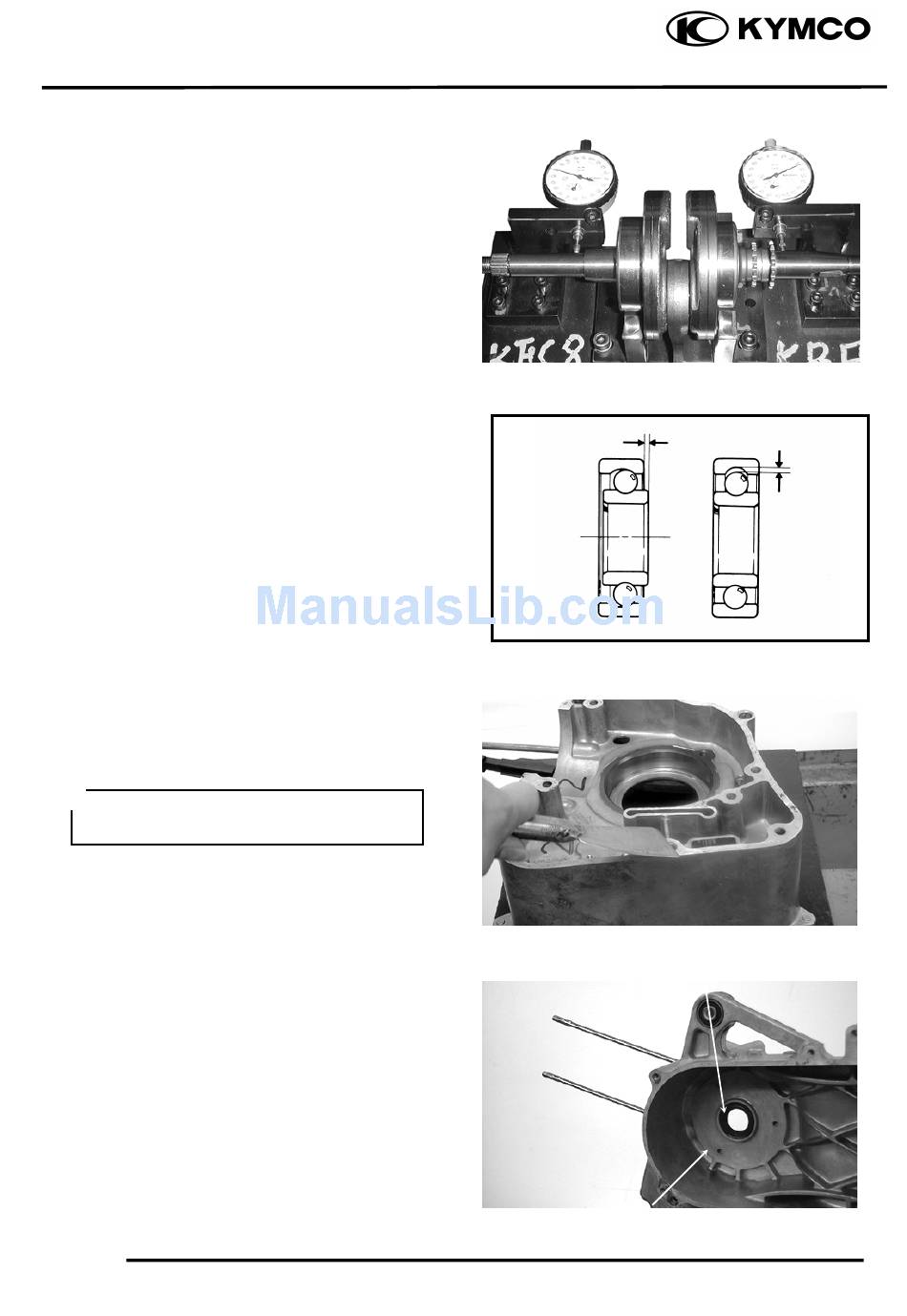

Measure the crankshaft runout.
Service Limit: 0.10mm replace if over
Measure the crankshaft bearing play.
Service Limits:
Axial : 0.20mm replace if over
Radial : 0.05mm replace if over

CRANKCASE ASSEMBLY

Clean off all gasket material from the
crankcase mating surfaces.
• Avoid damaging the crankcase mating
surfaces.
Install a new oil seal into the left crankcase.
11-5
GRAND DINK 250
Play
Axial
Oil Seal
Left Crankcase
Play
Radial
