- Page 1 CABINET PARTS WINE CELLAR For Models: KUWO24RSBX00 (Black) 6−07 Litho In U.S.A. (rcg) Part No. 8214865...
-
Page 2: Cabinet Parts

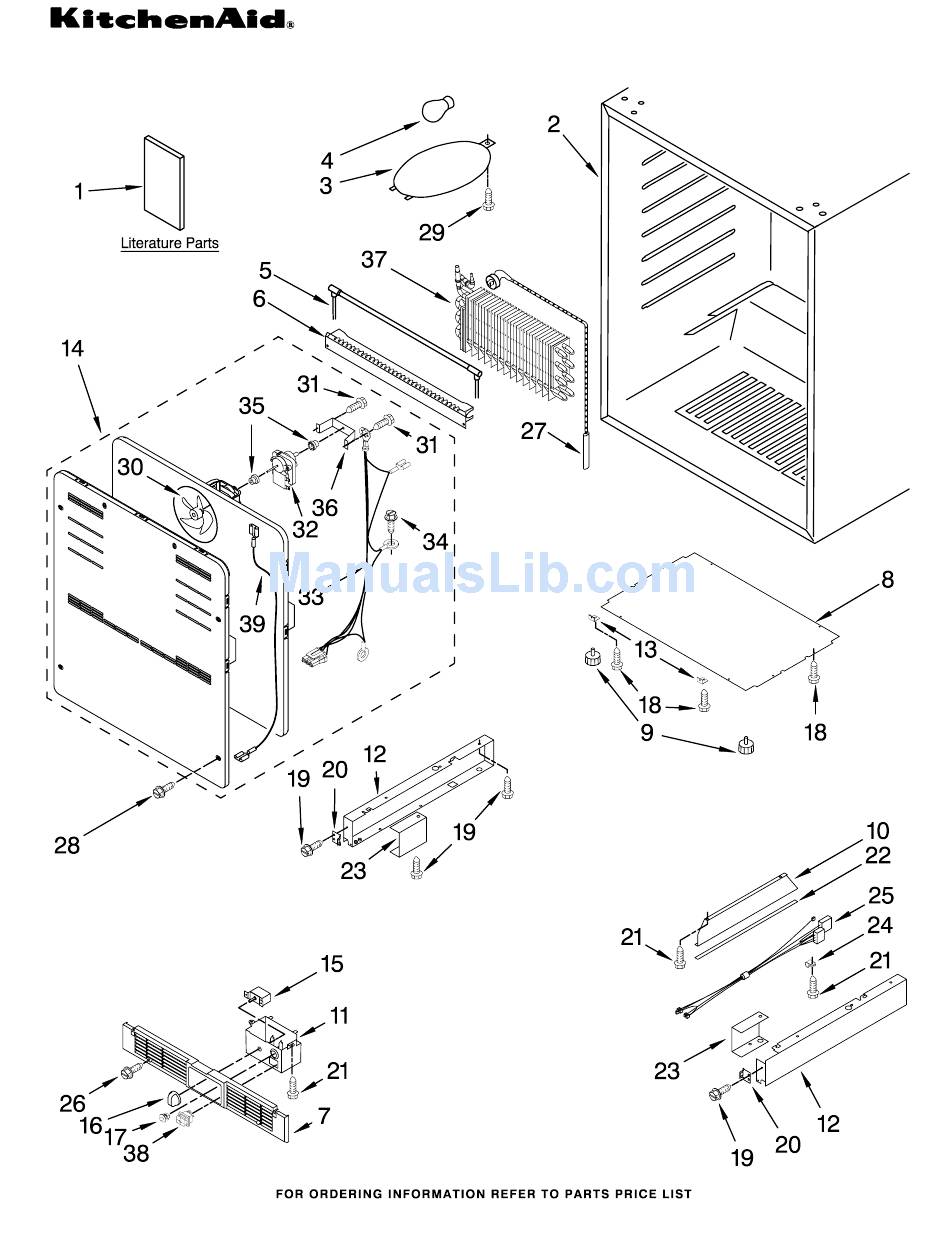

4344761 Grille 4344762 Plate, Bottom 4344763 Foot, Leveling 4344764 Brace, Support 4344898 Control Box Frame, Side 4344769 Left Side 4344770 Right Side CABINET PARTS For Models: KUWO24RSBX00 (Black) Illus. Part DESCRIPTION 4344771 Bracket, Grille 4344840 Evaporator Fan Assembly 4344859 Thermostat... -
Page 3: Shelf Parts
4344844 Wine Rack, (4) 4344845 Wine Rack, (1) 4344848 Wine Rack, Lower Ladder, Shelf 4344842 Left Side 4344843 Right Side 8214865 SHELF PARTS For Models: KUWO24RSBX00 (Black) Illus. Part DESCRIPTION 4344794 Screw 4344795 Washer 4344850 Stop, Lower Rack 4344851 Screw... -
Page 4: Door Parts
(Includes Gasket) 4344753 Hinge, Bottom 4344754 Hinge, Top 4344804 Spacer, Top Hinge 4344798 Spacer, Bottom Hinge 4344757 Actuator, Switch 4344802 Door Stop DOOR PARTS For Models: KUWO24RSBX00 (Black) Illus. Part DESCRIPTION 4344852 Door Gasket 4344760 Washer 4344803 Spacer, Door 4344796 Screw... -
Page 5: Unit Parts
4344778 Grommet, Fan Motor 4344779 Grommet, Compressor 4344780 Bolt, Compressor 4344781 Fan Motor, Condenser 4344782 Baffle, Air 4344783 Fan Blade 8214865 UNIT PARTS For Models: KUWO24RSBX00 (Black) Illus. Part DESCRIPTION 4344784 Bracket, Motor 4344785 Bracket, Motor 4344786 Cover, Rear 4344837 Capacitor 4344836 Clip...
