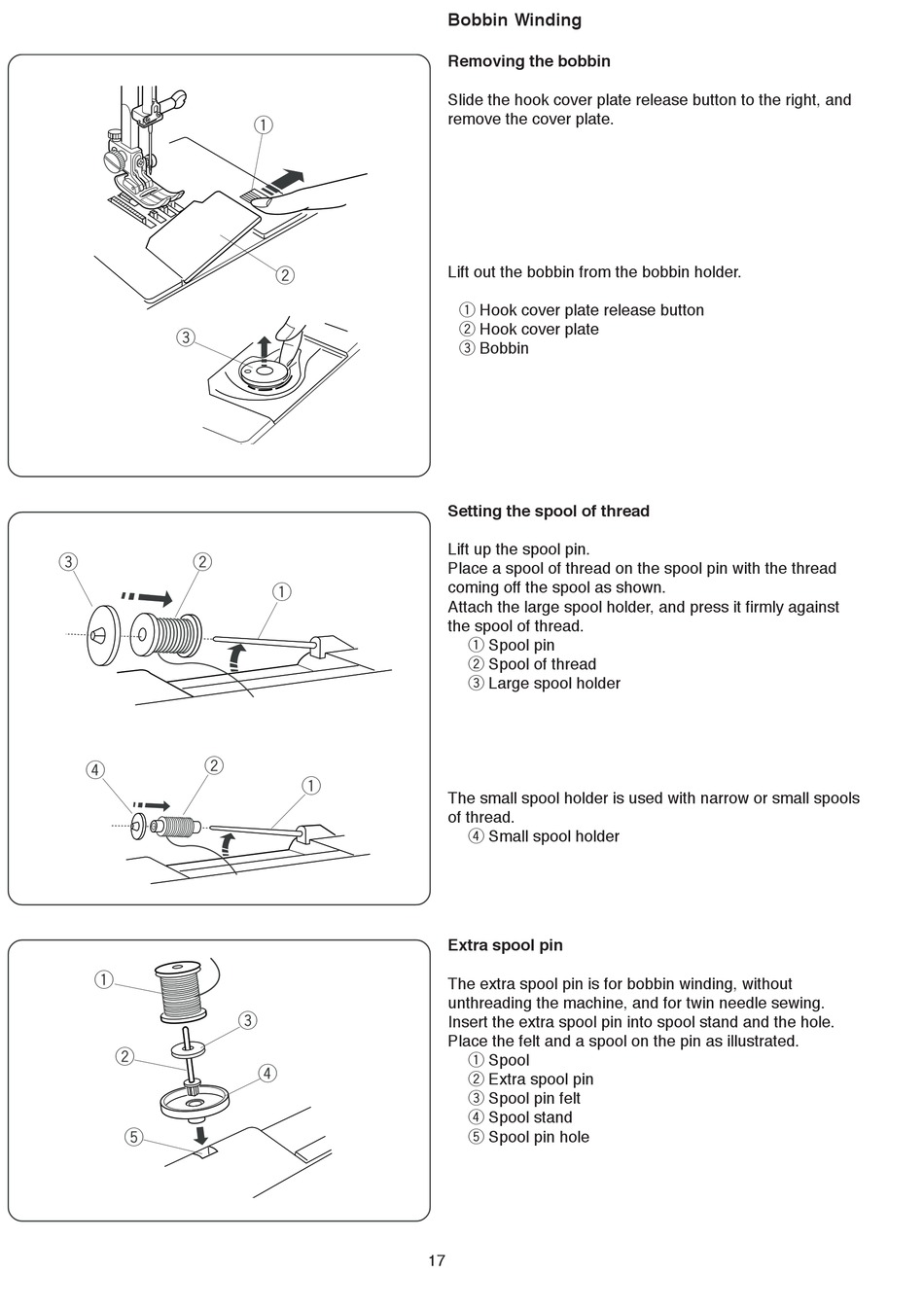

Bobbin Winding

Removing the bobbin

Slide the hook cover plate release button to the right, and
remove the cover plate.
Lift out the bobbin from the bobbin holder.
q Hook cover plate release button
w Hook cover plate
e Bobbin

Setting the spool of thread

Lift up the spool pin.
Place a spool of thread on the spool pin with the thread
coming off the spool as shown.
Attach the large spool holder, and press it firmly against
the spool of thread.
q Spool pin
w Spool of thread
e Large spool holder
The small spool holder is used with narrow or small spools
of thread.
r Small spool holder

Extra spool pin

The extra spool pin is for bobbin winding, without
unthreading the machine, and for twin needle sewing.
Insert the extra spool pin into spool stand and the hole.
Place the felt and a spool on the pin as illustrated.
q Spool
w Extra spool pin
e Spool pin felt
r Spool stand
t Spool pin hole
17
