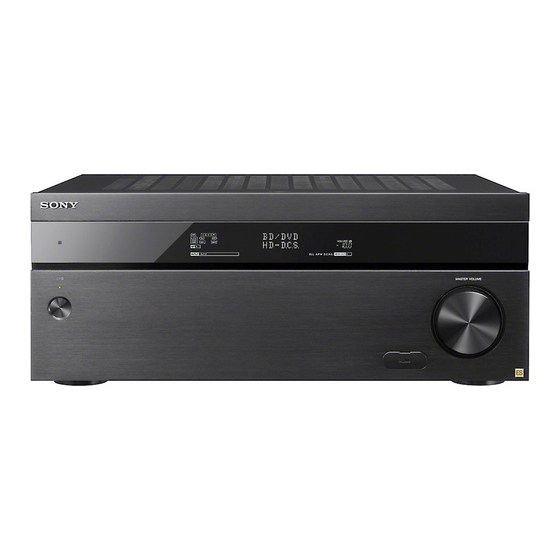

Sony STR-ZA3000ES Startup Manual
Multi channel av receiver
Hide thumbs
Also See for STR-ZA3000ES:
- User manual (187 pages) ,
- Installation manual (61 pages) ,
- Startup manual (51 pages)
Related Manuals for Sony STR-ZA3000ES
Summary of Contents for Sony STR-ZA3000ES
- Page 1 MULTI CHANNEL Startup Guide AV RECEIVER Guide de démarrage Guía de inicio STR-ZA3000ES/STR-ZA2000ES/STR-ZA1000ES...
-
Page 2: Main Features Of The Receiver
You can connect a variety of equipment to the many Useful functions available HDMI input jacks. front), 2 output) One HDMI output jack supports the multi-zone (for STR-ZA3000ES/ feature, which allows you to output content other Feature Description STR-ZA2000ES only) than that of the main room. -
Page 3: Table Of Contents
The Help Guide provides the following information and instructions online. Visit the Help Guide using Using the menu on the TV screen ........11 a computer or mobile device. Changing the settings ............12 http://rd1.sony.net/help/ha/strza321/h_uc2/ Troubleshooting ..............13 Specifications ..............15 Reference Guide (separate document) This manual covers safety regulations and... -
Page 4: Main Parts And Controls
Remote sensor Receives signals from the remote control. MASTER VOLUME Turns to adjust the volume level. HDMI jack cover Open the cover when you use the HDMI IN 6 (for STR-ZA3000ES/STR- (GAME) jack. ZA2000ES only) -
Page 5: Front Panel
SOUND FIELD (2CH/ Selects the sound field you want. A.DIRECT, A.F.D., MOVIE, MULTI ST.) HDMI IN 6 (GAME) jack Connect to a video game console. The video (for STR-ZA3000ES/STR- and sound from your video game console is ZA2000ES only) input. continued... -
Page 6: Remote Control
Parts Functions Remote Control MAIN / (on/standby) Turns the receiver on or sets it to standby mode. ZONE2, ZONE3, MAIN Selects the location to be controlled. PURE DIRECT Press to use the Pure Direct function. IN-CEILING SP Activates the In-Ceiling Speaker Mode. - Page 7 Parts Functions SOUND FIELD (2CH/ Selects the sound field you want. A.DIRECT, A.F.D., MOVIE, MULTI ST.) + (*)/–, Adjusts the volume level. * The + button has a tactile dot. Use the tactile dot as a reference when operating the receiver.
-
Page 8: Preparation 1: Preparing The Receiver And The Remote Control
Press / to turn the AV receiver on. Preparation 1: Preparing the receiver and the remote control Insert batteries into the remote control. Place the supplied optimizer microphone at ear level about where you would normally sit. The optimizer microphone is used for setting the speakers (Auto Calibration) in step 2 (Easy Setup). -
Page 9: Preparation 2: Performing Easy Setup
Note Preparation 2: Performing Easy Setup If the Easy Setup screen does not appear or you want to display the Easy Setup screen manually, you can display it by selecting [Setup] - [Easy Setup] from the home menu. The Easy Setup screen appears on the TV screen when you turn on the receiver for the first time or after the receiver is initialized. -
Page 10: Enjoying Video/Sound From The Connected Device
Turn the TV on, and then switch the input of the TV to that Enjoying video/sound from the connected which the receiver is connected. device Press HOME. The home menu is displayed on the TV screen. , /// Press /// repeatedly to select [Watch] or [Listen], and HOME then press The menu item list appears on the TV screen. -
Page 11: Using The Menu On The Tv Screen
Press HOME. Using the menu on the TV screen The home menu is displayed on the TV screen. You can display the menu of the receiver on the TV screen. Press /// repeatedly to select the menu you want to use, and then press to enter the menu. -
Page 12: Changing The Settings
Turn the TV on, and then switch the input of the TV to that Pro Logic II which the receiver is connected. Pro Logic IIx Neo:6 Multi Stereo For Details on each mode, visit the Help Guide. http://rd1.sony.net/help/ha/strza321/h_uc2/... -
Page 13: Troubleshooting
You can search by a keyword using the online troubleshooting guide. Audio If you still cannot find a solution, consult your nearest Sony dealer. There is no sound, no matter which equipment is selected, or only General a very low-level sound is heard. - Page 14 UPDATE FAILED Insert a USB flash drive on which the package file for updating the receiver is saved, and then turn the receiver off and turn it on again. List of messages after Auto Calibration measurements Display Explanation Code 31 Front speakers are not selected properly.
-
Page 15: Specifications
IN (BD/DVD) (Coaxial) Impedance: 75 ohms (8 ohms 1 kHz, THD 0.9%) S/N: 96 dB (A, 20 kHz LPF) STR-ZA3000ES IN 1 (AUX), IN 2 (TV) (Optical) S/N: 96 dB FRONT: 110 W + 110 W (A, 20 kHz LPF) - Page 16 720 × 480p @ 59.94/60 Hz Protection System Revision 2.2 (HDCP 2.2). 720 × 576p @ 50 Hz STR-ZA3000ES 640 × 480p @ 59.94/60 Hz HDMI IN 2/IN 3, HDMI OUT A/OUT B...
- Page 17 430 mm × 174 mm × 410 mm (17 in × 6 in × 16 in) (width/ height/depth) including projecting parts and controls Mass (including the front cover) (Approx.) STR-ZA3000ES 13.4 kg (29 lb 9 oz) STR-ZA2000ES 13.0 kg (28 lb 11 oz) STR-ZA1000ES 12.3 kg (27 lb 2 oz)
- Page 18 ©2014 Sony Corporation Printed in Malaysia 4-537-101-12(1)
- Page 19 *3 Si realiza una conexión de 5,1 canales en la zona principal, también puede disfrutar de sonido en otra ubicación (“Zona 2”) al conectar altavoces adicionales de zona 2. Para obtener más detalles, visite la Guía de Ayuda para obtener instrucciones completas. Sony Corporation © 2014 Printed in Malaysia...
- Page 20 Connecting to a TV and Blu-ray Disc Player GUI Menu List/Liste du menu de la GUI/Lista del menú de la interfaz gráfica de usuario Raccordement d’un téléviseur et d’un lecteur Blu-ray Disc Conexión a una TV y un reproductor Blu-ray Disc Connect the receiver to your TV using an HDMI cable (not supplied).
- Page 21 For details, refer to the operation manual supplied with your 4K TV or 4K projector. To check the series name of your BRAVIA TV On the rear panel (Example) © 2014 Sony Corporation Printed in Malaysia 4-544-085-11(2)
