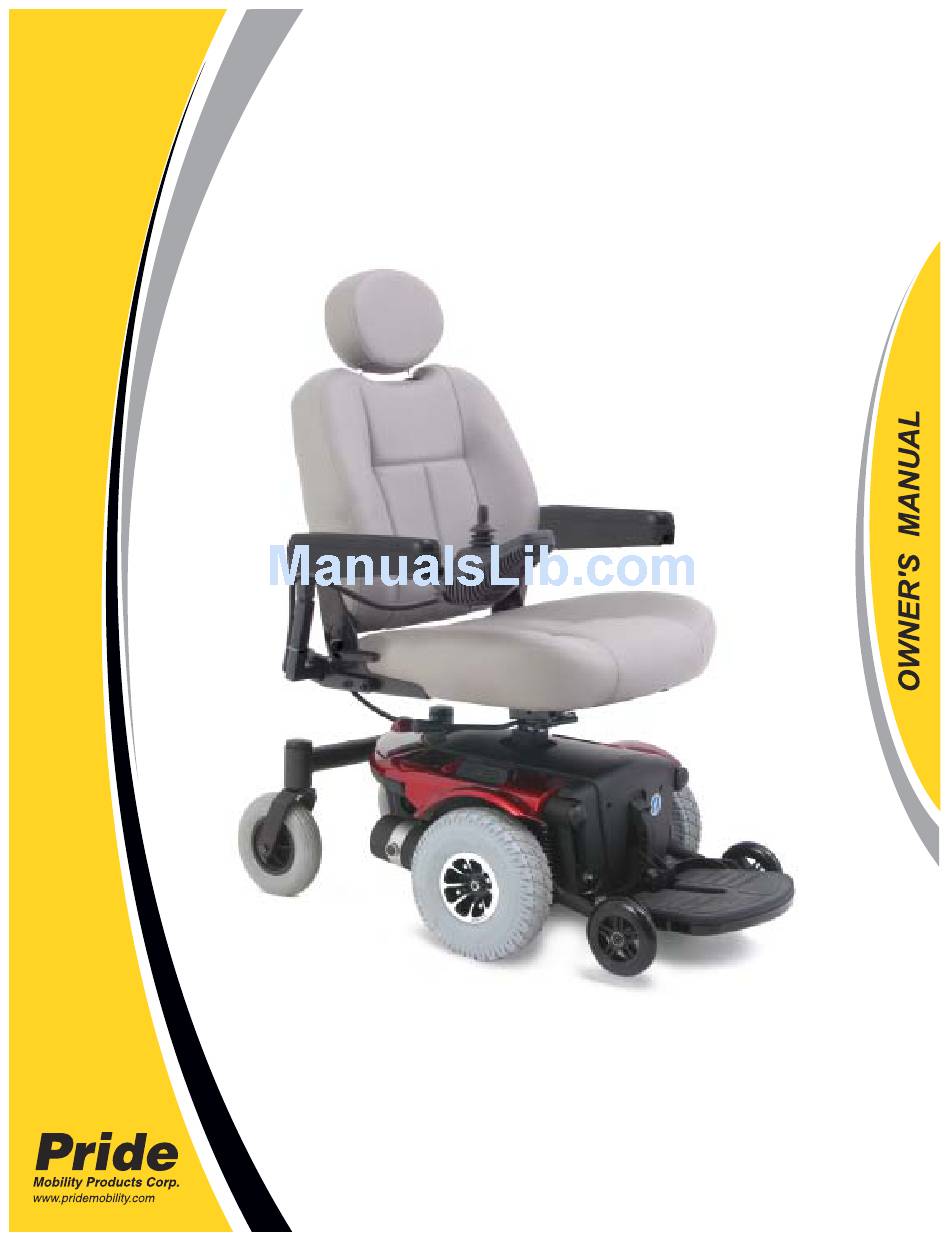

- Page 1 QUANTUM S E R I E S Including Model: Quantum 1103 Ultra 2SP 1-800-800-8586 (US) 1-888-570-1113 (Canada)
- Page 2 The latest/current version of this manual is available on our website. 088 609 661 Copyright © 2007 Pride Mobility Products Corp. INFMANU3675/Rev A/December 2007...
-
Page 3: Table Of Contents
SAFETY ..............................5 III. YOUR POWER CHAIR ........................17 IV. ASSEMBLY............................. 21 COMFORT ADJUSTMENTS......................23 VI. BATTERIES AND CHARGING ......................31 VII. CARE AND MAINTENANCE ......................35 VIII. WARRANTY............................41 APPENDIX I - SPECIFICATIONS ......................43 Quantum 1103 Ultra Series www.quantumrehab.com... -
Page 4: Introduction
I N T R O D U C T I O N SAFETY WELCOME to Quantum Rehab, a division of Pride Mobility Products Corporation (Pride). The power chair you have purchased combines state-of-the-art components with safety, comfort, and styling in mind. We are confident that these design features will provide you with the conveniences you expect during your daily activities. -
Page 5: Safety
Avoid exposure to rain, snow, ice, salt, or standing water whenever possible. Maintain and store in a clean and dry condition. Quantum 1103 Ultra Series www.quantumrehab.com... - Page 6 Do not connect an extension cord to the AC/DC converter or the battery charger. Removal of grounding prong can create electrical hazard. If necessary, properly install an approved 3-pronged adapter to an electrical outlet having 2-pronged plug access. Wear safety goggles. Corrosive chemicals contained in battery. www.quantumrehab.com Quantum 1103 Ultra Series...
- Page 7 Connect Red wire to Red Positive (+) Terminal Post Connect Black wire to Black Negative (–) Terminal Post Do not use batteries with different amp-hour (Ah) capacities. Do not mix old and new batteries. Always replace both batteries at the same time. Quantum 1103 Ultra Series www.quantumrehab.com...
- Page 8 Unlocked and in freewheel mode. Do not place power chair in freewheel mode on a decline. Do not place power chair in freewheel mode on an incline. Contains Lead. www.quantumrehab.com Quantum 1103 Ultra Series...
-
Page 9: General Guidelines
! Check all controller connections to the power base. Make sure they are secured properly. ! Check the brakes. See VII. “Care and Maintenance.” ! Check battery charge. See VI. “Batteries and Charging.” NOTE: If you discover a problem, contact your Quantum Rehab Specialist for assistance. Quantum 1103 Ultra Series www.quantumrehab.com... - Page 10 Do not attempt to negotiate obstacles with the seat in a reclined position unless an attendant is present to help stabilize the chair. Failure to heed may result in the power chair tipping over. www.quantumrehab.com Quantum 1103 Ultra Series...
- Page 11 (i.e., lessen the sharpness of the turn) to prevent your power chair from tipping. WARNING! When cornering sharply, reduce your speed and maintain a stable center of gravity. This greatly reduces the possibility of a tip or fall. Quantum 1103 Ultra Series www.quantumrehab.com...
- Page 12 Proceed with extreme caution when driving near raised surfaces, unprotected ledges and/or drop-offs (curbs, porches, stairs, etc.). Be sure your power chair is traveling perpendicular to any curb you may be required to navigate. See figure 2. Figure 2. Correct Curb Approach Figure 3. Incorrect Curb Approach www.quantumrehab.com Quantum 1103 Ultra Series...
- Page 13 WARNING! The positioning belt is not designed for use as a seat belt in a motor vehicle. Nor is your power chair suitable for use as a seat in any vehicle. Anyone traveling in a vehicle should be properly belted into seats approved by the vehicle manufacturer. Quantum 1103 Ultra Series www.quantumrehab.com...
- Page 14 This may cause your power chair to tip. WARNING! Keep your hands away from the tires when driving. Be aware that loose fitting clothing can become caught in drive tires. www.quantumrehab.com Quantum 1103 Ultra Series...
- Page 15 WARNING! Consult your physician if you are taking prescribed or over-the-counter medication or if you have certain physical limitations. Some medications and limitations may impair your ability to operate your power chair in a safe manner. Quantum 1103 Ultra Series www.quantumrehab.com...
- Page 16 NOTE: For further information on EMI/RFI, go to the Resource Center on www.pridemobility.com. If unintended motion or brake release occurs, turn your power chair off as soon as it is safe to do so. Call Pride at 800-424-8205 to report the incident. www.quantumrehab.com Quantum 1103 Ultra Series...
-
Page 17: Your Power Chair

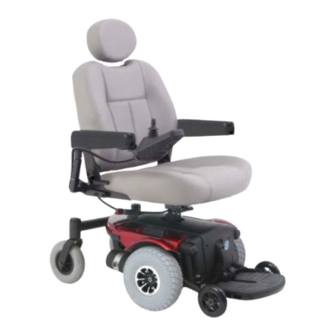

SEAT ASSEMBLY ARMREST SEATBACK RELEASE LEVER CONTROLLER SEAT BASE POWER BASE ASSEMBLY CASTER WHEEL FOOT RIGGING (FOOT PLATFORM SHOWN) DRIVE WHEEL FRICTION LOCK LEVER ANTI-TIP WHEEL Figure 5. The Quantum 1103 Ultra Series Power Chair Quantum 1103 Ultra Series www.quantumrehab.com... - Page 18 RETAINING CLIPS MOTOR BRAKE ASSEMBLY MANUAL FREE WHEEL LEVER Figure 6. The Quantum 1103 Ultra Series Power Base Electrical Components The electrical components are located on the power base. The ammeter and the charger power cord receptacle are located on the right side of the power base. The main circuit breaker is located on the front of the battery tray. The controller connector and the motor connectors are located on the power pod, inside the power base.
- Page 19 POWER SEAT CONNECTOR (OPTIONAL) MOTOR CONNECTOR CHARGER INHIBIT CHARGER CIRCUIT FUSE (ATO) CONNECTOR MOTOR CONNECTOR POWER POD CHARGER POWER CORD RECEPTACLE AMMETER ONBOARD BATTERY CHARGER MAIN CIRCUIT BREAKER Figure 7. Quantum 1103 Ultra Series Electrical Components Quantum 1103 Ultra Series www.quantumrehab.com...
-
Page 20: Manual Freewheel Levers
If a lever is difficult to move in either direction, slightly rock the power chair back and forth. The lever should then move to the desired position. WARNING! Do not use the freewheel lever handles as tie-down points to secure this product. Figure 8. Drive Mode (Drive Engaged) Figure 9. Freewheel Mode (Drive Disengaged) www.quantumrehab.com Quantum 1103 Ultra Series... -
Page 21: Assembly
Quantum Rehab Specialist. SEATBACK ANGLE ADJUSTMENT WIRE TIES SEAT INSTALLATION SEAT HEIGHT/ANGLE ADJUSTMENT WIRE TIES CONTROLLER POSITION FOOT PLATFORM HEIGHT/ ADJUSTMENT ANTI-TIP WHEEL ADJUSTMENT Figure 10. Quantum 1103 Ultra Series Assembly View Quantum 1103 Ultra Series www.quantumrehab.com... - Page 22 8. Plug the controller connectors into the power pod and connect Figure 12. UMS - Optional Seating System the battery connector. See figure 7. 9. Reinstall the rear shroud and tighten the fasteners. www.quantumrehab.com Quantum 1103 Ultra Series...
-
Page 23: Comfort Adjustments
See figure 14. 8. Remove the retaining clips that secure the seat posts to the power base. See figure 14. 9. Move the trapeze bars up or down to the desired height. Figure 14. Trapeze Bar Location Quantum 1103 Ultra Series www.quantumrehab.com... - Page 24 The lever is located on the right side of the seat base. See figure 5. To adjust the seatback angle: 1. Pull up on the seatback release lever. 2. Lean forwatd or backward to the desired position. 3. Release the lever. www.quantumrehab.com Quantum 1103 Ultra Series...
- Page 25 To change the armrest height: 1. Loosen the two setscrews located on the armrest re- ceiver. See figure 16. 2. Raise or lower the armrest to the desired height. 3. Tighten the setscrews to secure the armrest. Quantum 1103 Ultra Series www.quantumrehab.com...
- Page 26 13. Reinstall the rear shroud and tighten the fasteners. NOTE: If your power chair is equipped with a Syn- ergy Seat or TRU-Balance Power Positioning System, refer to the controller adjustment information provided in separate manuals. www.quantumrehab.com Quantum 1103 Ultra Series...
- Page 27 3. Rotate the lever until it is in the fully closed position. BOLT NOTE: If the lever will not rotate to the fully closed position, then turn the nut counterclockwise one- quarter or one-half turn. LEVER (OPEN) UNCLAMPED CLAMPED Figure 19. Quick Release Fastener Operation Quantum 1103 Ultra Series www.quantumrehab.com...
- Page 28 To adjust the anti-tip wheels: 1. Loosen bolt A. See figure 21. 2. Remove bolt B. 3. Raise or lower the anti-tip wheel bracket. Each hole is 0.50 in. (1.27 cm) apart. www.quantumrehab.com Quantum 1103 Ultra Series...
- Page 29 NOTE: The power elevating seat option is equipped with a system that reduces the speed of the power chair by one-half when the seat is elevated more than 1-2 in. (2.54–5 cm). Always check to be sure this system is operat- ing properly before using your power chair Quantum 1103 Ultra Series www.quantumrehab.com...
- Page 30 3. Pull the friction lock lever forward to lock the seat in place. WARNING! Do not attempt to drive the power chair with the seat facing to the side. Always return the seat to the forward facing position before operating the power chair. www.quantumrehab.com Quantum 1103 Ultra Series...
-
Page 31: Batteries And Charging
If the battery charger is exposed to adverse or extreme weather conditions, then it must be allowed to adjust to the difference in environmental conditions before use indoors. Refer to the manual supplied with the battery charger for more information. Quantum 1103 Ultra Series www.quantumrehab.com... - Page 32 1. Fully recharge any new battery prior to its initial use. This brings the battery up to about 90% of its peak performance level. 2. Operate your power chair throughout the house and yard. Move slowly at first, and do not travel too far until you become accustomed to the controls and break in the batteries. www.quantumrehab.com Quantum 1103 Ultra Series...
- Page 33 ! Always charge the batteries fully prior to your trip. ! Plan your trip in advance to avoid inclines if possible. ! Limit baggage weight to essential items. ! Try to maintain an even speed and avoid stop-and-go driving. Quantum 1103 Ultra Series www.quantumrehab.com...
- Page 34 What about shipping? If you wish to use a freight company to ship your power chair to your final destination, repack your power chair in the original shipping container and ship the batteries in separate boxes. www.quantumrehab.com Quantum 1103 Ultra Series...
-
Page 35: Care And Maintenance
! Use a rubber conditioner on the tire sidewalls to help preserve them. WARNING! Never use a rubber conditioner on the tread area of the tires; doing so may make the tires slippery and cause your power chair to skid. Quantum 1103 Ultra Series www.quantumrehab.com... - Page 36 ! Check the caster forks for damage or fluttering which indicates that they may need to be adjusted or have the bearings replaced. See your Quantum Rehab Specialist for repair. ! Keep your power chair clean and free of foreign material, such as mud, dirt, hair, food, drink, etc. www.quantumrehab.com Quantum 1103 Ultra Series...
- Page 37 WARNING! The wheels on your power chair should only be serviced or replaced by a Quantum Rehab Specialist or a qualified technician. WARNING! Be sure that the power to the controller is turned off and the power chair is not in freewheel mode before performing this procedure. Quantum 1103 Ultra Series www.quantumrehab.com...
- Page 38 WARNING! Do not mix or match new and old batteries. If you encounter a situation where one battery needs to be replaced, then replace both batteries. Refer to the specifications table in this manual and the manual supplied with the battery charger for recommended type and capacities. www.quantumrehab.com Quantum 1103 Ultra Series...
- Page 39 WARNING! Use only the quick disconnect harness supplied with your power chair. It has a thermal fuse on each lead. BATTERY CONNECTOR THERMAL FUSES QUICK DISCONNECT BATTERY WIRING DIAGRAM Figure 27. Quantum 1103 Ultra Battery Connections Quantum 1103 Ultra Series www.quantumrehab.com...
- Page 40 Disconnect both batteries before load testing and follow the directions that come with the load tester. If either one of the batteries fails the load test, replace both of them. If your power chair still does not power up, contact your Quantum Rehab Specialist. www.quantumrehab.com Quantum 1103 Ultra Series...
-
Page 41: Warranty
Pride to be defective in material and/or workmanship: ! Bearings and bushings ! Plastic components, except body The battery is covered by a separate six-month warranty, provided by the battery manufacturer. The batteries are not warranted by Pride. Quantum 1103 Ultra Series www.quantumrehab.com... - Page 42 ! Circumstances beyond the control of Pride ! Labor, service calls, shipping, and other charges incurred for repair of the product, unless specifically authorized, IN ADVANCE, by Pride Mobility Products Corporation ! Repairs and/or modifications made to any part without specific consent from Pride...
-
Page 43: Appendix I - Specifications
Due to manufacturing tolerances and continued product improvement, this specification can be subject to a variance of (+ or – ) 3%. ³ AGM or Gel-Cell type required. See VII. “Batteries and Charging.” NOTE: All specifications subject to change without notice. Quantum 1103 Ultra Series www.quantumrehab.com... - Page 44 S P E C I F I C A T I O N S LENGTH 39”(99 cm) with foot platform 35.5”(90.17 cm ) TURNING RADIUS 20.75” WIDTH (52.71 cm) 23” (58.42 cm) 2.50” (6.35 cm) GROUND CLEARANCE Figure 28. Quantum 1103 Ultra Dimensions and Ground Clearance www.quantumrehab.com Quantum 1103 Ultra Series...
- Page 45 N O T E S Quantum 1103 Ultra Series www.quantumrehab.com...
- Page 46 N O T E S www.quantumrehab.com Quantum 1103 Ultra Series...
- Page 47 Quality Control - Quantum 1103 Ultra Series Inclusion of all Parts Joystick Serial Number Controller Serial Number Left Motor Serial Number Right Motor Serial Number Fit and Finish Performance Pride keeps a more detailed report on file at the factory.
