Refer to Service Manual RS6612010 for installation, operation, and troubleshooting information.
•
Refer to the appropriate Parts Catalog for part number information.
•
Models listed on page 3.
This manual is to be used by qualified, professionally trained HVAC technicians only. Goodman does
not assume any responsibility for property damage or personal injury due to improper service
procedures performed by an unqualified person.
TM

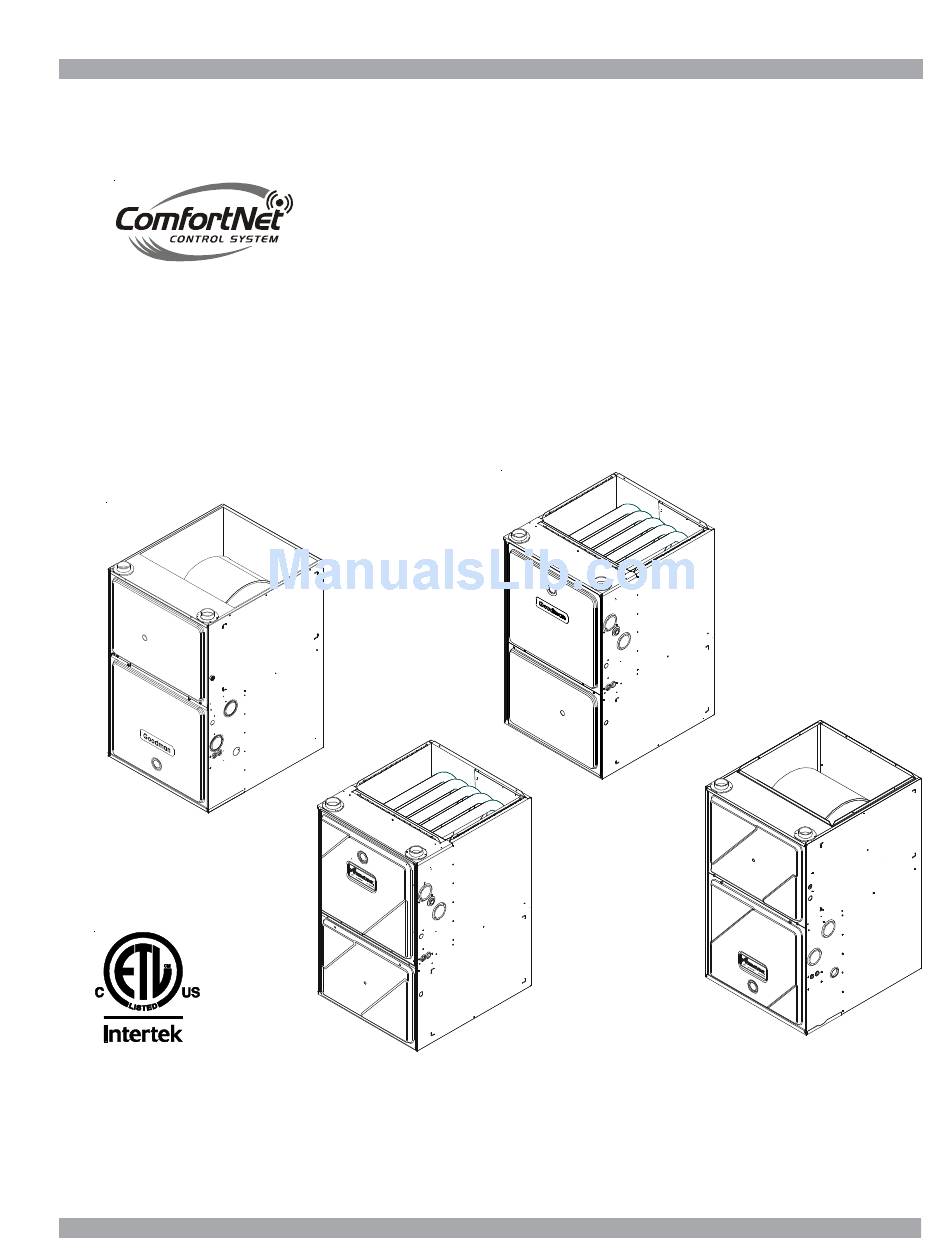

*CVC96/*MVC96
96% Gas Furnace Units
Copyright ©2014 Goodman Manufacturing
AL
AL
AL
AL
Company, L.P.
RT6612032
August 2014
Advertisement
Table of Contents
Related Manuals for Goodman GCVC960403BNAA
Summary of Contents for Goodman GCVC960403BNAA
- Page 1 • Models listed on page 3. RT6612032 This manual is to be used by qualified, professionally trained HVAC technicians only. Goodman does August 2014 not assume any responsibility for property damage or personal injury due to improper service procedures performed by an unqualified person.
-
Page 2: Product Identification
Disconnect ALL power before servicing or installing this unit. Multiple power sources may be present. Failure to do so may cause property damage, personal injury or death. Installation and repair of this unit Goodman will not be responsible should be performed ONLY by in- WARNING WARNING... - Page 3 WARNING that is not design certified by damage, personal injury, or death, Goodman for use with this unit. do not store combustible materi- Serious property damage, personal injury, reduced unit als or use gasoline or other flammable liquids or vapors performance and/or hazardous conditions may result in the vicinity of this appliance.
-
Page 4: Furnace Specifications
FURNACE SPECIFICATIONS *MVC96 *MVC96 *MVC96 *MVC96 *MVC96 *MVC96 0403BNA 0603BNA 0803BNA 0804CNA 1005CNA 1205DNA High Fire Input¹ 40,000 60,000 80,000 80,000 100,000 120,000 High Fire Output¹ 38,400 57,600 76,800 76,800 96,000 115,200 Low-Fire Steady-State Input¹ 28,000 42,000 56,000 56,000 70,000 84,000 Low-Fire Steady-State Output¹... - Page 5 FURNACE SPECIFICATIONS *CVC96 *CVC96 *CVC96 *CVC96 *CVC96 0403BNA 0603BNA 0804CNA 1005CNA 1205DNA High Fire Input¹ 40,000 60,000 80,000 100,000 120,000 High Fire Output¹ 38,400 57,600 76,800 96,000 115,200 Low-Fire Steady-State Input¹ 28,000 42,000 56,000 70,000 84,000 Low-Fire Steady-State Output¹ 26,880 40,320 53,760 67,200...
-
Page 6: Product Dimensions
PRODUCT DIMENSIONS DM96VC DISCHARGE DISCHARG E 28 ¾ DIMB ¾ 6 ½ DISCHARG E 2 ¾ 6 ½ ¾ AIR INTAKE 2 ⅝ 1 ⅞ 2" PIPE 19½ CENTER DIMPL E VENT/FLUE PIPE LEFT SIDE FOR ALTERNATE ALTERNATE 2" PVC DRAIN TRAP AIR INTAKE PIP E VENT/FLU E... - Page 7 PRODUCT DIMENSIONS DC96VC TOP VIEW FRONT VIEW 6½ RIGHT SIDE VIEW 2⅝ 2½ 1⅝ 1⅞ 1⅜ 1 ⅞ ALTERNATE VENT/ FLUE LOCATION 1½ LOW VOLTAGE ELECTRICAL OUTLET LOW VOLTAGE ELECTRICAL OUTLET SIDE CUT-OU T SIDE CUT-OU T ALTERNATE GAS ALTERNATE SUPPLY LOCATION GAS SUPPLY LOCATIO N...
-
Page 8: Blower Performance Specifications
BLOWER PERFORMANCE SPECIFICATIONS *MVC960403BNA *MVC960403BNA Cooling Speed Heating Speed (@ .1" - .8" w.c. ESP) (@ .1" - .5" w.c. ESP; Rise Range: 35 - 65°F) High-Stage Low-Stage High-Stage Low-Stage Rise Adjust Adjust (°F) Minus 10% Minus 10% Minus 5% Minus 5% Normal Normal... - Page 9 BLOWER PERFORMANCE SPECIFICATIONS *MVC960803BNA *MVC960803BNA Cooling Speed Heating Speed ( @ .1" - .8" w.c. ESP) (@ .1" - .5" w.c. ESP; Rise Range: 35 - 65°F) High-Stage Low-Stage High-Stage Low-Stage Rise Adjust Adjust (°F) Minus 10% Minus 10% 1,082 Minus 5% Minus 5% 1,142...
- Page 10 BLOWER PERFORMANCE SPECIFICATIONS *MVC961005CNA *MVC961005CNA Cooling Speed Heating Speed ( @ .1" - .8" w.c. ESP) (@ .1" - .5" w.c. ESP; Rise Range: 35 - 65°F) High-Stage Low-Stage High-Stage Low-Stage Rise Adjust Adjust (°F) Minus 10% Minus 10% 1,636 1,130 Minus 5% Minus 5%...
- Page 11 BLOWER PERFORMANCE SPECIFICATIONS *CVC960403BNA *CVC960403BNA Cooling Speeds Heating Speed ( @ .1" - .8" w.c. ESP) (@ .1" - .5" w.c. ESP; Rise Range: 20 - 50°F) High-Stage Low-Stage High-Stage Low-Stage Rise Adjust Adjust (°F) Minus 10% Minus 10% Minus 5% Minus 5% Normal Normal...
- Page 12 BLOWER PERFORMANCE SPECIFICATIONS *CVC960804CNA *CVC960804CNA Cooling Speeds Heating Speed ( @ .1" - .8" w.c. ESP) (@ .1" - .5" w.c. ESP; Rise Range: 45 - 75°F) High-Stage Low-Stage High-Stage Low-Stage Adjust Adjust Rise Minus 10% Minus 10% 1,111 Minus 5% Minus 5% 1,172 Normal...
- Page 13 BLOWER PERFORMANCE SPECIFICATIONS *CVC961205DNA *CVC961205DNA Cooling Speeds Heating Speed ( @ .1" - .8" w.c. ESP) (@ .1" - .5" w.c. ESP; Rise Range: 35 - 65°F) High-Stage Low-Stage High-Stage Low-Stage Adjust Adjust Rise Minus 10% Minus 10% 1,570 1,156 Minus 5% Minus 5% 1,657...
-
Page 14: Wiring Diagrams
WIRING DIAGRAMS DM96VC/DC96VC HIGH VOLTAGE! DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH. Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date wiring.
